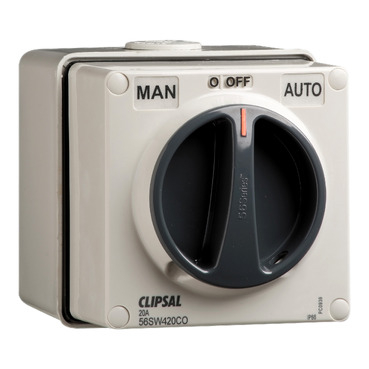

IP66 Clipsal 56 Series - Surface Switch - 1 Gang, 4 Pole, 500VAC, 20A, Reversing and Changeover - Grey
SKU: clirevcha420
Product Image Gallery
Product Pricing
$236.05 (ex-GST)
$259.66 (inc-GST)
$259.66
$236.05
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ In Stock
Clipsal - World-class design, premium materials, and precision engineering come together.
Electrotraders USPs
Description
4 Pole reversing and changeover surface switch for versatile control.
- 1 Gang, 4 Pole switching.
- Rated 500VAC, 20A current.
- Designed for reversing and changeover applications.
- IP66 protection rating.
- Grey finish.
- Supplier Item Code: 56SW420CO-GY
- Handling Time: 5-7 Days
(clirevcha420)
Specifications
| Design | |
| Range of product | Series 56 |
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | switch |
| Device application | control |
| Colour | cover: grey |
| Market segment | small commercialindustryutility |
| Physical | |
| Device presentation | basic element with full cover plate |
| Control type | rotary knob |
| Number of poles | 4 |
| Device mounting | surface |
| Local signalling | without |
| [ue] rated operational voltage | 500 V AC 50 Hz |
| Rated current | 20 A |
| Fixing mode | by screws |
| Height | 107 mm |
| Width | 101 mm |
| Depth | 124 mm |
| Net weight | 0.64 kg |
| Switch function | 4-pole |
| Ambient air temperature for operation | -25...75 °C |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Standards | AS/NZS 3133 |
| Mercury free | Yes |
| Environmental disclosure | ENVPEP120809EN |
| Circularity profile | N/A |
| Material | |
| Material | PC (polycarbonate) |
| Others | |
| Handle colour | grey |
| Poles description | 4P |
| [icm] rated short-circuit making capacity | 1.7 kA |
| Tightening torque | 0.8 N.m |
| Marking location | marking on surface |
| Breaking capacity | 20 kA |
| Targeted country | Australia |
| [uimp] rated impulse withstand voltage | 4 kV |
| [icw] rated short-time withstand current | 0.8 kA for 1 s |
| Rotary handle padlocking | 2 padlocks 8-8 mm |
| Unit type of package 1 | PCE |
| Package 1 height | 12.7 cm |
| Package 1 width | 10.4 cm |
| Package 1 length | 10.7 cm |
| Package 1 weight | 664.0 g |
| Recycled metal content at cr level | 0 |
| Removable battery | N/A |
| Global warming ; total life cycle | 10 kg CO2 eq. |
| Minimum percentage of recycled plastic content | 0 |
| SKU | clirevcha420 |
| Manfacturer Part Number | 56SW420CO-GY |
| Barcode # | 9311554203955 |
| Brand | Clipsal |
