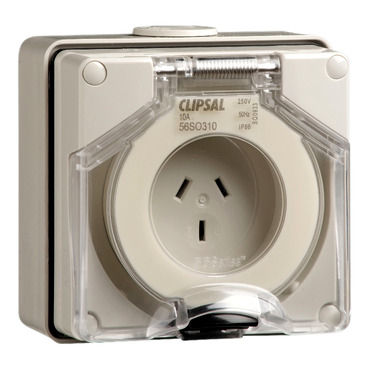

IP66 Clipsal 56 Series - Surface Socket - 250V 10A - 3 Flat Pins - Grey
SKU: clisursoc310
Product Image Gallery
Product Pricing
$68.81 (ex-GST)
$75.69 (inc-GST)
$75.69
$68.81
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ In Stock
Clipsal - World-class design, premium materials, and precision engineering come together.
Electrotraders USPs
Description
IP66 rated surface socket featuring 3 flat pins for standard 250V, 10A applications.
- Designed for robust surface mounting.
- Grey finish providing durability and weather resistance.
- 3 flat pin configuration compliant with standard plugs.
- Supplier Item Code: 56SO310-GY
- Handling Time: 3 - 5 Days
(clisursoc310)
Specifications
| Design | |
| Range of product | Series 56 |
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | socket-outlet |
| Device application | power supply |
| Market segment | utilitysmall commercialindustry |
| Physical | |
| Device mounting | surface |
| Mounting mode | external mounting |
| [in] rated current | 10 A |
| [ue] rated operational voltage | 250 V AC 50 Hz conforming to EN 60309-2 |
| Connections - terminals | screw terminals 1.5-6 mm² rigid or stranded cable |
| Socket number | 1 |
| Outlet standard | industrial |
| Cable outer diameter | 7...16 mm |
| Net weight | 0.48 kg |
| Depth | 77 mm |
| Width | 101 mm |
| Height | 107 mm |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Ambient air temperature for operation | -25...75 °C |
| Standards | AS/NZS 4417.1AS/NZS 3112 |
| Mercury free | Yes |
| Material | |
| Material | ABS (acrylonitrile butadiene-styrene): cover |
| Contacts material | screws: brass |
| Others | |
| Outlet standard deviation | Australian/New Zealand |
| Plug, socket category | low voltage |
| Plug, socket, control station shape | straight |
| Poles description | 1P + N + E |
| Voltage colour | blue |
| Tightening torque | 0.8 N.m |
| Socket-outlet type | A |
| Targeted country | Australia |
| Unit type of package 1 | PCE |
| Package 1 height | 9.0 cm |
| Package 1 width | 10.8 cm |
| Package 1 length | 11.0 cm |
| Package 1 weight | 402.0 g |
| Recycled metal content at cr level | 0 |
| Removable battery | N/A |
| Minimum percentage of recycled plastic content | 0 |
| SKU | clisursoc310 |
| Manfacturer Part Number | 56SO310-GY |
| Barcode # | 9311554198732 |
| Brand | Clipsal |
