$109.00
- 146 In Stock
- 0 Reviews

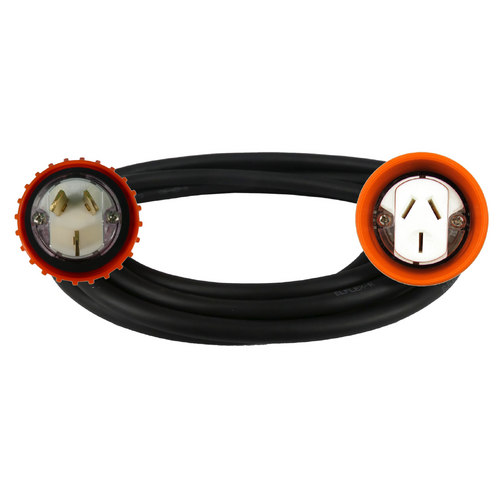

High quality extension lead assembled, tested and tagged by licensed electricians in Australia. Extension Lead 3 Pin 20 Amp Flat Pin Straight Plug 5 metre Standard Duty 2.5mm cable 240V
- Extension Lead 3 Pin Flat 20 Amp 240V
- Available in lengths of 5m, 10m, 15m, 20m, 25m, 30m, 40m, 50m and 60m long.
- 24 month warranty on all products. Warranty does not extend to misuse.
- All Electrotraders Extension Leads are assembled, tested and tagged in-house by our Licenced Electricians.
- All Plugs and Sockets are source from high quality reputable Australian brands, are IP66 rated and are compatible with all leading Australian switch gear.
- Leads are assembled using Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
- Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
- H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
- Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
- Cable Specifications: cross-sectional area (CSA in mm2), Nominal Sheath Thickness (NST in mm), Max DC Resistance @20??C (MaxR in ohms/KM), Nominal Diameter (NOD in mm), Amperage rating (in accordance with AS/NZS 3008.1.1.2009 Table 14)
- Standard: CSA 2.5mm2, NST 1.8mm, MaxR 8.21, NOD 12mm, Amps 27, Weight 222 Kg/Km
- Heavy Duty: CSA 4mm2, NST 1.9mm, MaxR 5.09, NOD 13.4mm, Amps 36, Weight 299 Kg/Km
- Extra Heavy Duty: Not available (due to plug / socket neck size limitation)
- Rated Voltage 0.6/1kV
- Typically used at events & temporary cabling, fairgrounds, sporting venues, for generators / motors / compressors / construction applications including portable equipment such as concrete cutting.
- Please consult with a qualified electrician or engineer about the suitability of this cable for your intended purpose.
- Prior to ordering your product check and confirm the compatibility of the plug and socket on the lead. ie 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you are unsure contact us and we will be happy to help. This will avoid the inconvenience and extra cost should the incorrect lead be purchased.
(ext3p20af)
SKU | ext3p20af |
Manfacturer Part Number | ext3p20af |
Brand | Electrotraders |
