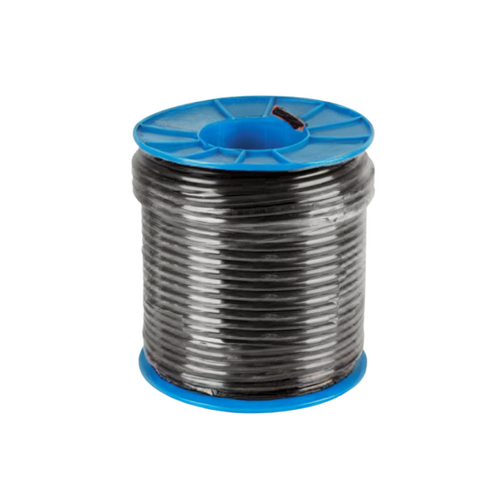

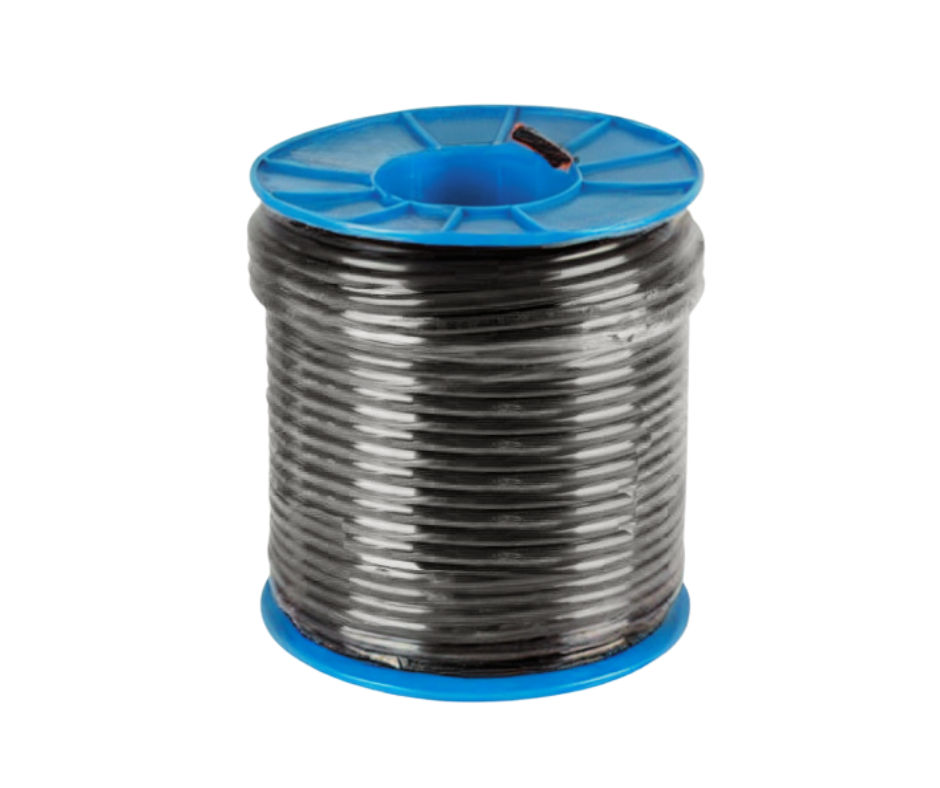

ELMO3060 Ordinary Duty Flexible Cable | 6mm 2 Core & Earth Black 100m Roll
Ordinary Duty Flexible Cable 2 Core and Earth Black
SKU: cabfleord3g6.0b
Product Image Gallery
Product Pricing
$707.45 (ex-GST)
$778.20 (inc-GST)
$778.20
$707.45
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ In Stock
Electrotraders USPs
Description
- An economical option for flexible and fixed applications, machine and equipment cabling, ordinary duty extension leads and other industrial applications.
- Ordinary Duty
- Insulation V-90 HT, AS/NZS 3808:2000
- Sheath 5V-90, AS/NZS 3808:2000
- Plain annealed copper conductors AS/NZS1125/ASNZS5000.1
- Voltage 250/440V
- RoHS Compliant Product.
- Australian Manufactured Cable
- Complies with All Australian Standards.

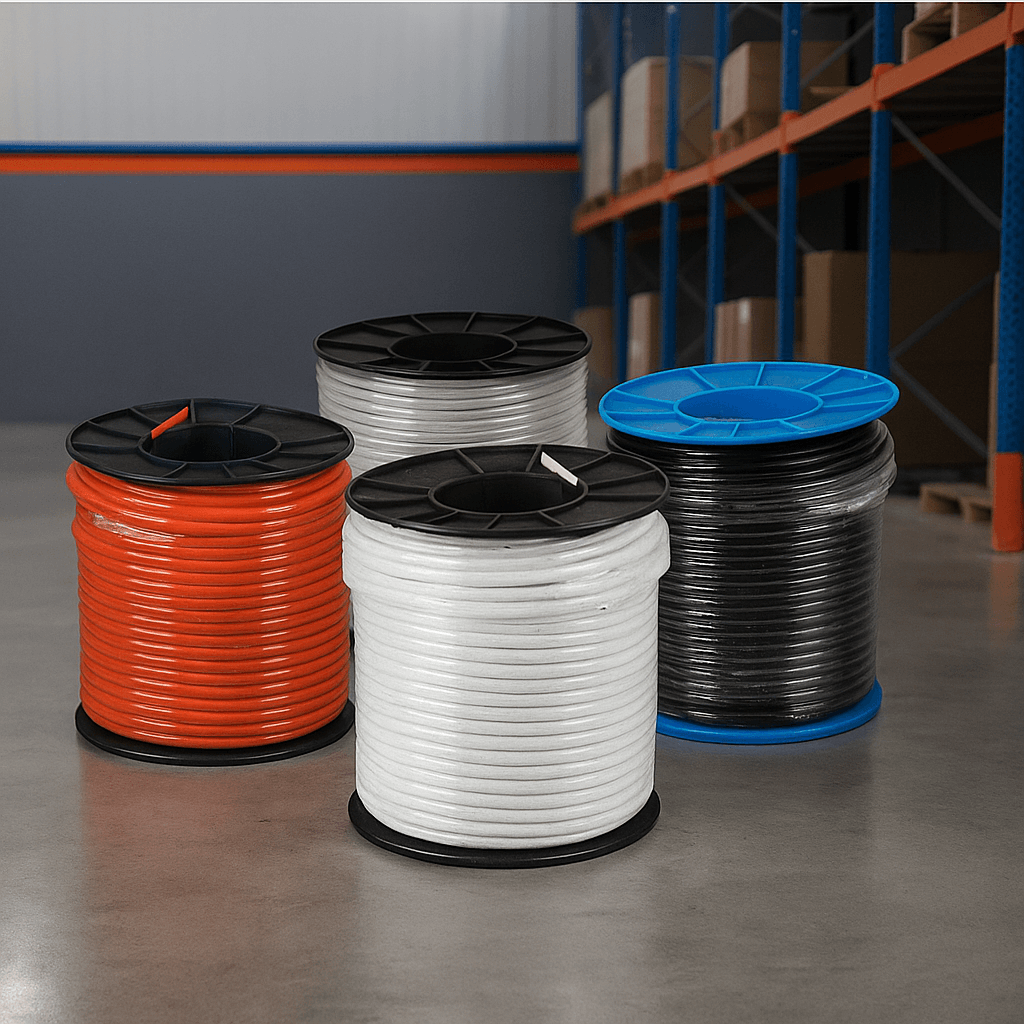

- Outer Sheath PVC, colour choice of Black, Grey, White, Orange
- Temperature 90 degrees
- UV Stabilised
- 3 Core Colours - Brown, Light Blue, Green/Yellow
- Standard Cable Markings - Core x Size mm² ELFLEX ORDINARY DUTY Flexible Electric Cable 250/440V V90 YYYY +0001m
- Allow 1-2 days for shipping
- 100 metre rolls only. No shorter length cuts in this line
(cabfleord3g6.0)
Specifications
| Product Details | |
| Product Code | ELMO3060 |
| No. of Strands / Ø mm | 84/0.30 |
| Number of Cores | 3 |
| Nominal Area (mm²) | 3x6.0 |
| Amps** | 32.0 A |
| Nominal Insulation Thickness (mm) | 0.8 mm |
| Nominal Sheath Thickness (mm) | 1.2 mm |
| Max DC Resistance @ 20˚C (Ω/km) | 3.30 |
| Nominal Cable Diameter (mm) | 12.5 mm |
| Gross Mass (kg/km) | 298 |
| Construction | |
| Conductor | Plain Annealed Copper (AS/NZS 1125 / ASNZS 5000.1) |
| Insulation | V-90 HT, AS/NZS 3808:2000 |
| Sheath | 5V-90, AS/NZS 3808:2000 |
| Voltage | 250/440V |
| Standard Sheath Colours | Black, Grey, White, Orange |
| Core Colours | Brown, Light Blue, Green/Yellow |
| Features | |
| RoHS Compliant | Yes |
| UV Stabilised | Yes |
| Temperature Rating | +90°C |
| Flexibility | Excellent |
| Application | |
| Use Case | Multi Core Power for Flexible and Fixed Applications |
| Common Uses | Machine & Equipment Cabling, Other Industrial Applications, Ordinary Duty Extension Leads |
| Standards | |
| Standards | AS3191; AS/NZS 3808:2000 |
| SKU | cabfleord3g6.0 |
| Manfacturer Part Number | ELMO3060 |
| Brand | Generic |
