50mm PVC Plain to Screwed Conduit Adaptor Grey — No Lock Ring

Description

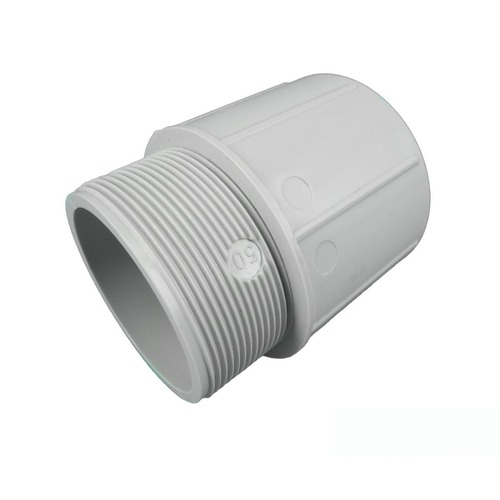

50mm. PVC. Grey. Plain to Screwed Conduit Adaptor with Locknut.

The Rylec PSA50C is a 50mm PVC plain-to-screwed conduit adaptor with locknut — for terminating a plain (unthreaded) 50mm rigid PVC conduit run into an enclosure, junction box, or conduit entry with a standard threaded hole. The adaptor slides over the plain conduit end and the included locknut secures it from inside the enclosure. Grey PVC. Sold individually.

• Rylec — Series "PSA" PVC plain to screwed conduit adaptor
• 50mm — suits 50mm plain (unthreaded) rigid PVC conduit tube
• Grey PVC construction
• Includes locknut — for secure conduit retention at the entry point
• Threaded male end with locknut for enclosure/box entry
• Plain socket end accepts unthreaded rigid PVC conduit
• Sold individually

Order online now — fast dispatch Australia-wide.

Where the PSA50C Plain to Screwed Adaptor Fits

The PSA50C terminates 50mm plain rigid PVC conduit into enclosures, switchboards, and junction boxes. The 50mm conduit size is specified in larger commercial and industrial installations where the volume of cables, large cable cross-sections (such as main sub-board feeds and large three-phase circuits), or conduit fill ratio requirements demand the largest standard rigid PVC conduit diameter. Typical applications include main switchboard conduit entries, large multi-cable sub-mains runs, industrial machine installations, and commercial projects with significant cable counts entering a single enclosure.

Installation follows the same sequence as all PSA series adaptors: slide the adaptor over the conduit end (plain socket end first), pass the threaded end through the enclosure entry hole, thread the locknut onto the screwed end from inside the enclosure and tighten to secure. Bond the conduit end to the adaptor socket with conduit cement on the plain socket side for a permanent connection.

Smaller sizes PSA20C (20mm), PSA25C (25mm), PSA32C (32mm), and PSA40C (40mm) are available for smaller conduit runs. All are Rylec grey PVC with locknut included.

Q: Is the locknut included with the PSA50C?
A: Yes — the PSA50C is supplied complete with locknut for securing through the enclosure entry hole.

Q: When is 50mm conduit required?
A: 50mm conduit is typically specified when the cable count, individual cable sizes (such as large sub-mains cables), or conduit run length exceeds what a 40mm conduit can comfortably accommodate within conduit fill ratio requirements per AS/NZS 3000. It is most commonly used for main conduit entries into large switchboards and distribution boards in commercial and industrial installations.
