Tesla TPSC10 10mm Cable Clips 1.5mm Twin & Earth — Pack of 500

Description

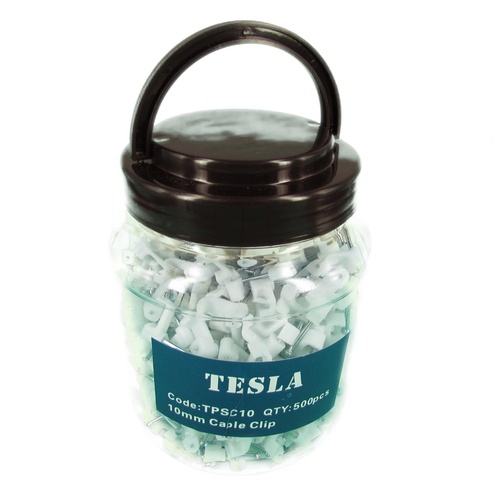

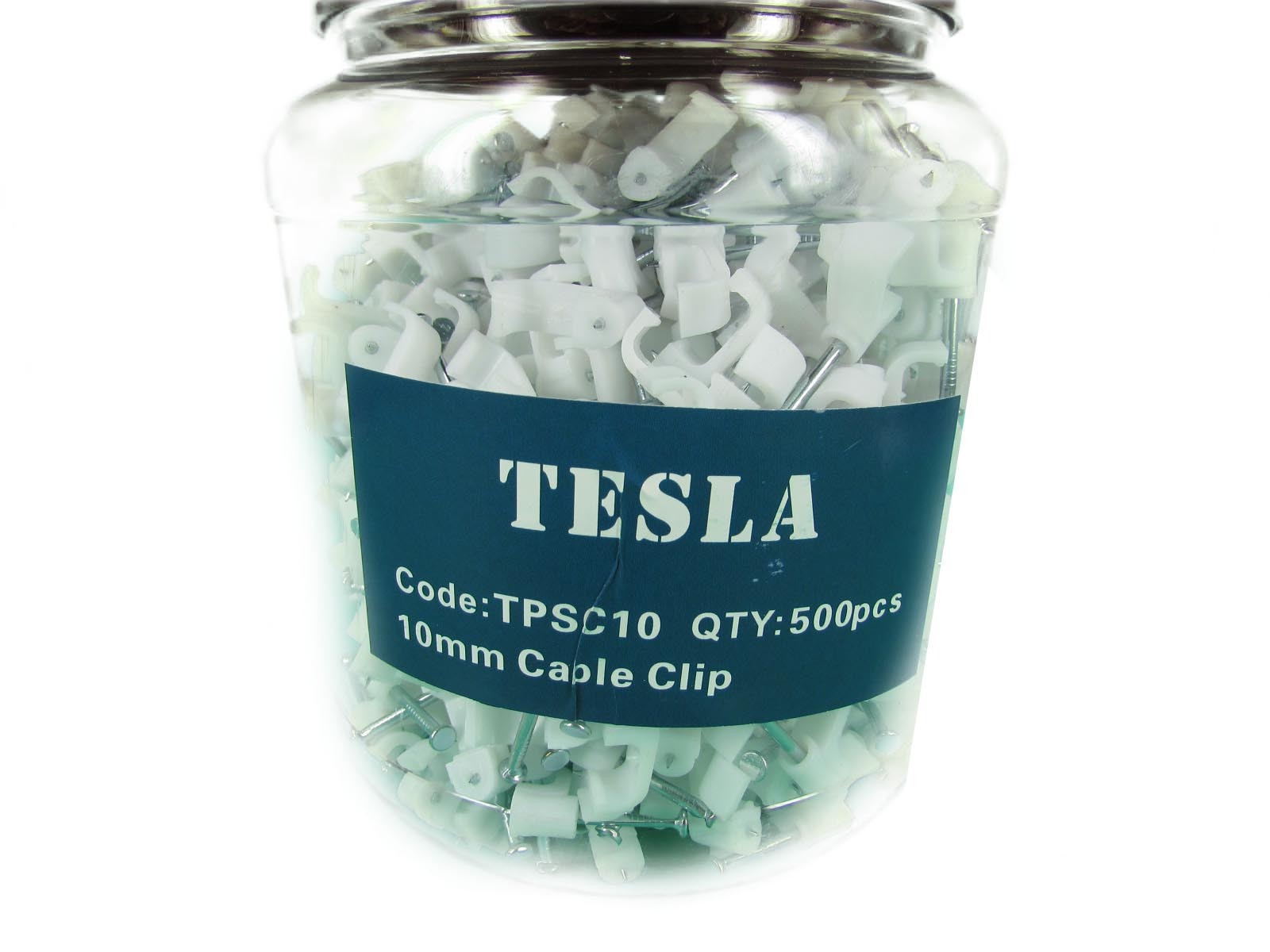

Tesla TPSC10. 10mm Flat TPS Cable Clips with Hardened Drive Nails. White. Jar of 500.

The Tesla TPSC10 is a 10mm white moulded flat cable clip with a hardened drive nail — designed to fix 1.5mm² flat TPS (Twin and Earth) cable to timber framing, wall studs, and similar substrates. The hardened nail is integral to the clip — no separate fastener required. Sold in a jar of 500 clips.

• Tesla TPSC10 — 10mm Flat TPS Cable Clip
• Suits 1.5mm² flat TPS (Twin and Earth) cable
• Hardened drive nail — integral to clip, no separate fastener needed
• White moulded plastic
• Flat cable clip profile — for flat TPS cable runs
• 500 clips per jar
• Also available in 5000 clip tub (TPSC10 Tub)

Order online now — fast dispatch Australia-wide.

About the Tesla TPSC10 Cable Clip

TPS cable clips are the standard fixing method for running flat Twin and Earth cable along timber framing, wall plates, ceiling joists, and floor bearers in residential and commercial electrical installations. The clip's saddle profile holds the flat cable firmly against the substrate surface while the drive nail — hardened for reliable hammer installation — fixes through the clip base into the timber. One blow from a hammer seats both the clip and the cable in a single action, making the Tesla TPSC10 a fast and efficient fixing method for long cable runs.

The 10mm clip size is matched to the outer width of 1.5mm² flat TPS cable — the most commonly used cable size in domestic lighting circuits. Using the correctly sized clip ensures the cable is held securely without being pinched or deformed, which could damage the cable insulation or create difficulty pulling the cable through after fixing.

The Tesla TPSC range covers three clip sizes: 10mm for 1.5mm² T&E, 12mm for 2.5mm² T&E, and 14mm for larger flat cables. All are white moulded plastic with integral hardened drive nails. The 10mm and 12mm sizes are available in jars of 500 for standard installations, and in tubs of 5000 for high-volume site use.

Q: What is the difference between a 10mm and a 12mm cable clip?
A: The clip size refers to the internal width of the saddle — the opening that holds the cable. A 10mm clip suits the outer width of 1.5mm² flat TPS cable. A 12mm clip suits the wider profile of 2.5mm² flat TPS cable. Using the wrong size clip — too loose or too tight — can allow the cable to move or can damage the cable sheath. Always match the clip size to the cable size.

Q: How are the clips installed?
A: Each clip has an integral hardened drive nail. Place the clip over the cable against the substrate and drive the nail with a hammer — the nail passes through the clip base and into the timber, fixing both clip and cable in one action. No pre-drilling or separate fastener is required for standard timber substrates.

Q: How many clips come in a jar?
A: This product (TPSC10) contains 500 clips per jar. A 5000 clip tub is also available for higher volume site requirements.
