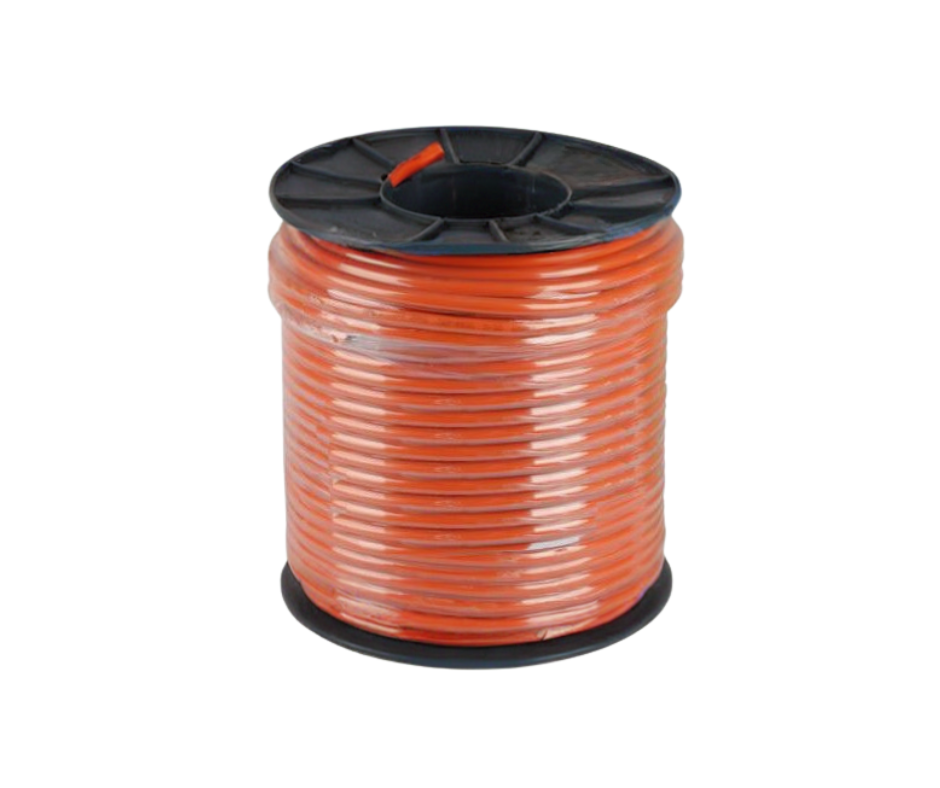

25 Amp Rated 2 Core & Earth Heavy Duty Flex Cable 4mm | 100m

SKU: cabflehea3g4.100m

Product Image Gallery

Product image thumbnail for SKU cabflehea3g4.100m

Product Pricing

$556.73 (ex-GST)

$612.40 (inc-GST)

$612.40

$556.73

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ In Stock

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200


Description

  • Conductors Plain Annealed Copper Conductors (AS/NZS 1125)
  • Insulation UV Stabilised V-90 HT to AS/NZS 3808:2000
  • Sheath 5V-90, AS/NZS 3808:2000
  • Heavy Duty V90 Insulation rated at 0.6/1kV
  • RoHS Compliant Product.
  • Voltage 0.6/1kV
  • Complies with All Australian Standards.
  • Standard Sheath Colour Orange
  • Excellent Flexibility
  • UV Stabilised
  • 90¡C 5V-90, AS/NZS 3808:2000, AS3191
  • Applications include:
  • Multi Core Power for Flexible and Fixed Applications
  • Machine & Equipment Cabling
  • Other Industrial Applications
  • Ordinary Duty Extendion Leads
  • Preferred 240 Volt Cable for Caravans, RV & Motorhome Wiring.


(cabflehea3g4.100m)

Specifications

Product Details
Product Code ELMH3040
No. of Strands / Ø mm 56/0.30
Number of Cores 3
Nominal Area (mm²) 3x4.0
Amps** 25.0 A
Nominal Insulation Thickness (mm) 1.0 mm
Nominal Sheath Thickness (mm) 2.0 mm
Max DC Resistance @ 20˚C (Ω/km) 4.95
Nominal Cable Diameter (mm) 13.4 mm
Gross Mass (kg/km) 287
Construction
Conductor Plain Annealed Copper (AS/NZS 1125)
Insulation UV Stabilised V-90 HT (AS/NZS 3808:2000)
Sheath 5V-90, AS/NZS 3808:2000
Voltage 0.6/1 kV
Standard Sheath Colour Orange
Core Colours Brown, Light Blue, Green/Yellow
Features
RoHS Compliant Yes
UV Stabilised Yes
Temperature Rating +90°C
Flexibility Excellent
Application
Use Case Multi Core Power for Flexible and Fixed Applications
Common Uses Machine & Equipment Cabling, Other Industrial Applications
SKU cabflehea3g4.100m
Manfacturer Part Number ELMH3040
Brand Unbranded
Shipping Weight 28.7000kg
