Braided Flex Cable | 2 Core & Earth 1.5mm | 100m Roll
SKU: cabscr3g1.5.100m
Product Image Gallery
Product Pricing
$384.32 (ex-GST)
$422.75 (inc-GST)
$422.75
$384.32
Stock and Availability
- ⚫︎ In Stock
Electrotraders USPs
Description

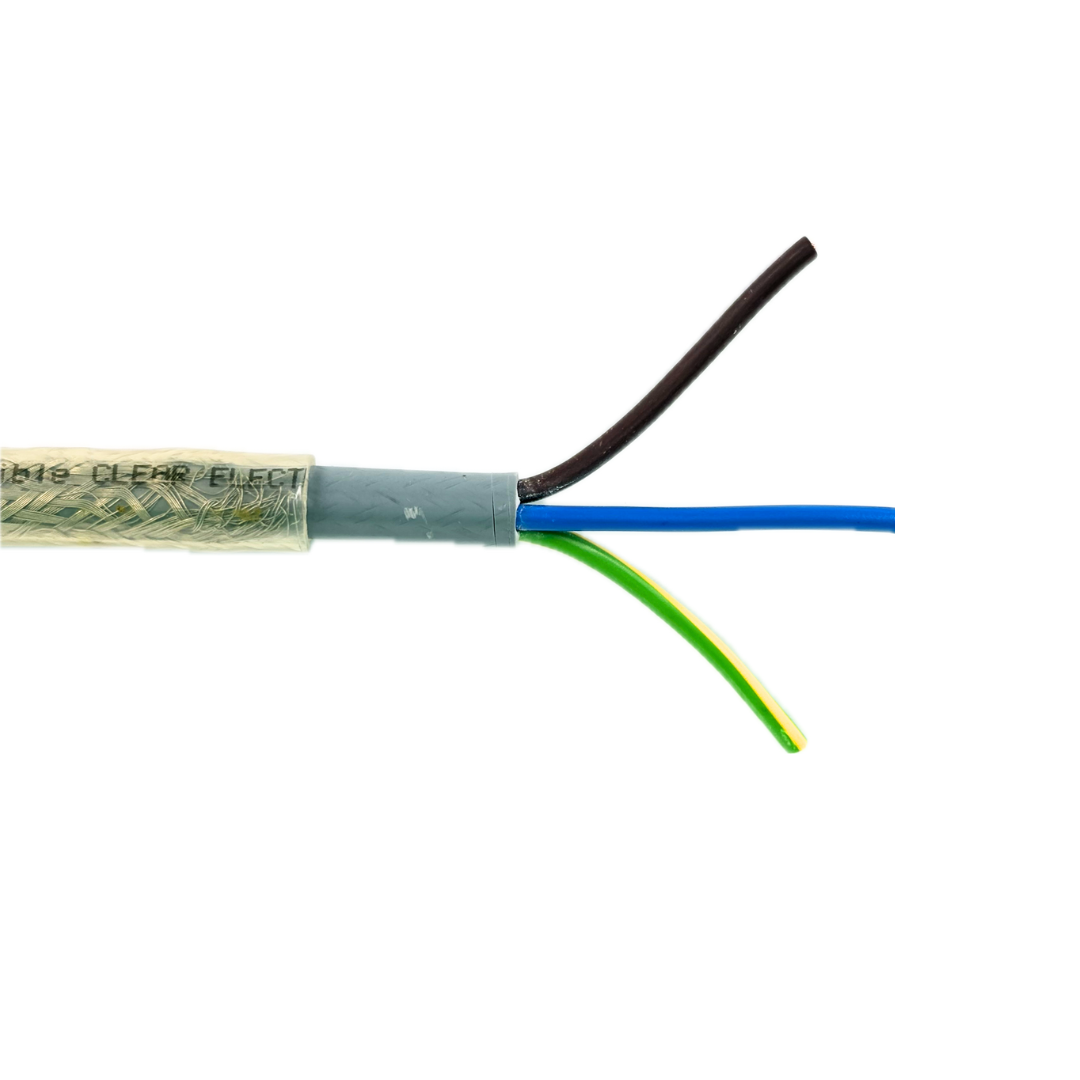

ELFLEX EMC Shielded Cable – Clear Sheath, Class 5 Copper, Built for EMI-Safe Performance
Designed for installations where clean signal transmission and safety are critical, this ELFLEX EMC Braid Screen Cable provides robust EMI shielding and excellent flexibility for electrical professionals and industrial users alike.
Built with Class 5 plain annealed copper cores and a high-performance V-75 PVC insulation and sheath, it meets the demands of Australian standards (AS3808) while offering exceptional reliability in high-interference environments.
An 80% tinned copper braid screen offers superior electromagnetic shielding, making this cable a trusted solution for:
-
Variable Speed Drive (VSD) wiring
-
Custom-built extension leads
-
Control systems and EMI-sensitive devices
Key Technical Details:
-
Voltage Rating: 0.6 / 1kV
-
Clear PVC Outer Sheath (V-75 rated)
-
Short Circuit Temp: Up to 160°C
-
RoHS Compliant
-
100M Roll
-
Minimum Bend Radius:
– Up to 4.0mm²: 6 × cable diameter
– 6.0mm² to 35mm²: 7.5 × cable diameter -
Marking: ELFLEX EMC Braid Screen (No Core X mm²)
Built for precision, flexibility, and shielding performance — whether you're fitting out a workshop or assembling a custom power distribution setup, this cable is engineered to deliver.
Built to meet Australia's toughest standards. Stocked and ready for fast dispatch.
(cabscr3g1.5.100m)
Specifications
| Product Details | |
| Product Code | EMC3G1.5KM |
| Number of Cores | 3 |
| Nominal Area mm² | 2X 1.5 mm² |
| Nominal Area Earth mm² | 1 X 1.5 mm² |
| Amps** | 19 A |
| Nominal Insulation Thickness (mm) | 0.8 mm |
| Sheath Thickness (mm) | 1.8 mm |
| Max DC Resistance @ 20°C | 19.5 mΩ/m |
| Nominal OD (mm) | 11.3 mm |
| Mass (kg/km) | 200 |
| Construction | |
| Type | EMC VSD PVC/PVC/EWS/CWS/PVC |
| Conductor | Class 5 Tinned Annealed Copper |
| Earth | Split Earth Conductor |
| Screening | Tinned Copper Wire Screen (CWS) |
| Inner Sheath | PVC |
| Outer Sheath | PVC |
| Voltage Rating | 0.6/1 kV |
| Temperature Rating | +90°C |
| RoHS Compliant | Yes |
| Flexible Class | Class 5 |
| Standards | |
| Standards | AS/NZS 3008.1.2:2010 Table 13 (Flexible “Spaced”) |
| SKU | cabscr3g1.5.100m |
| Manfacturer Part Number | EMC3G1.5 |
| Brand | Generic |
| Shipping Weight | 20.0000kg |
