Tesla TESST41W Infrared 360 Degree Motion Sensor Recessed Flush Mount 60.5mm Cut-Out 240V White

Description

Automatic 360 degree lighting control, neatly recessed.

The Tesla TESST41W infrared motion sensor switches lighting on when movement is detected and off again after an adjustable delay, cutting wasted energy in stairwells, hallways and storage areas. Its recessed flush-mount body sits discreetly in the ceiling with only the compact lens visible.

Key Features

• 360 degree detection pattern with up to 6m detection distance
• Recessed flush mount design, 60.5mm ceiling cut-out
• 220-240V AC, 50/60Hz operation
• Rated load: 1200W incandescent, 300W energy-saving, max 300W LED

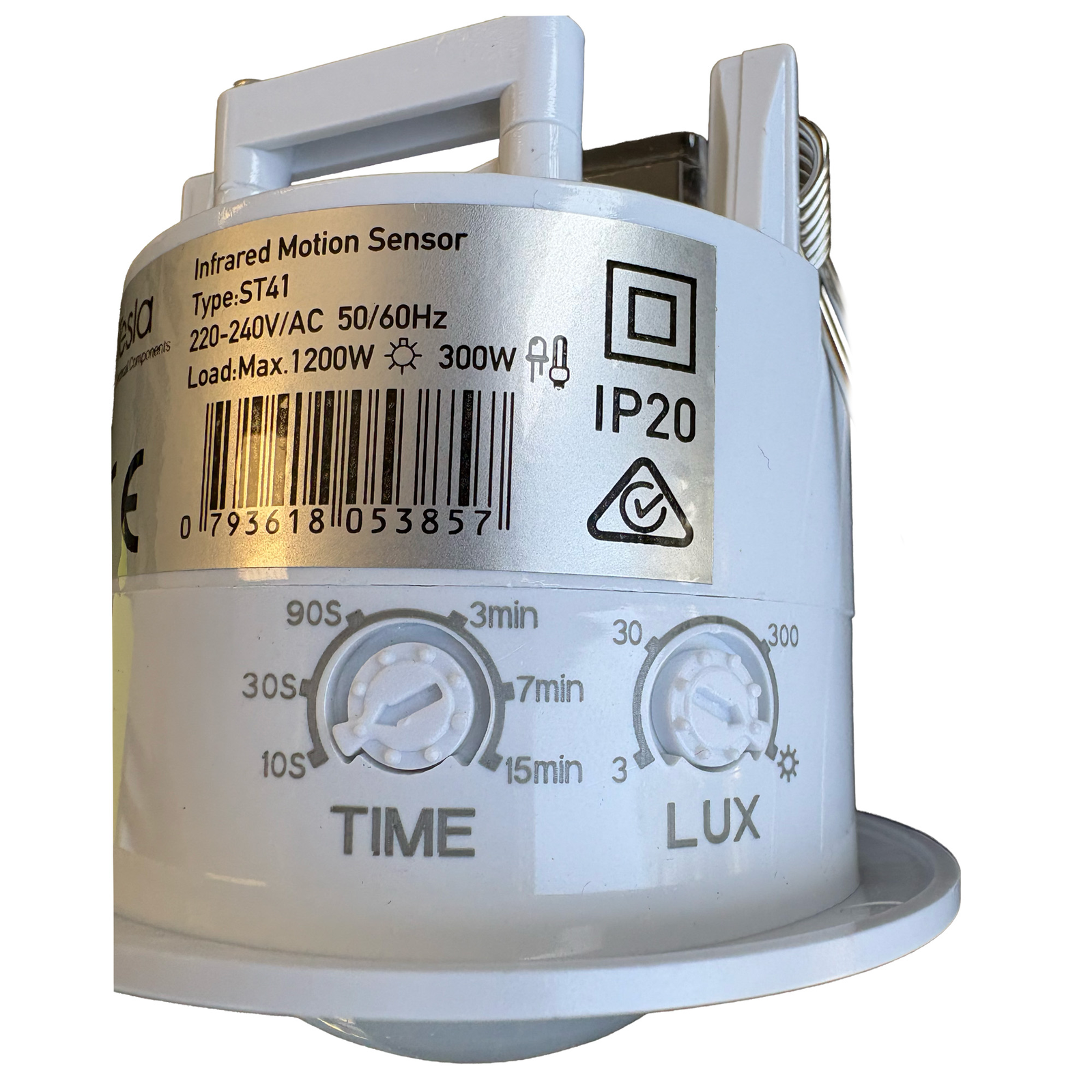

• Adjustable time delay from approximately 10 seconds up to 15 minutes
• Adjustable ambient light threshold, less than 3 to 2000 lux
• Installation height 2.2m to 4m
• Detects motion speeds of 0.6 to 1.5m/s
• Automatic day and night recognition

Order online now for fast dispatch Australia-wide.

Why It Matters

Set-and-forget energy savings
Lights left burning in unoccupied rooms add up on any power bill. The ST41 senses body heat movement across a full 360 degree field and holds the load on only while the area is occupied. With the time delay adjustable from around 10 seconds up to 15 minutes and a lux threshold you can tune from below 3 lux to 2000 lux, the sensor can be set to ignore daylight hours entirely and work only when artificial light is genuinely needed.

A clean, recessed finish

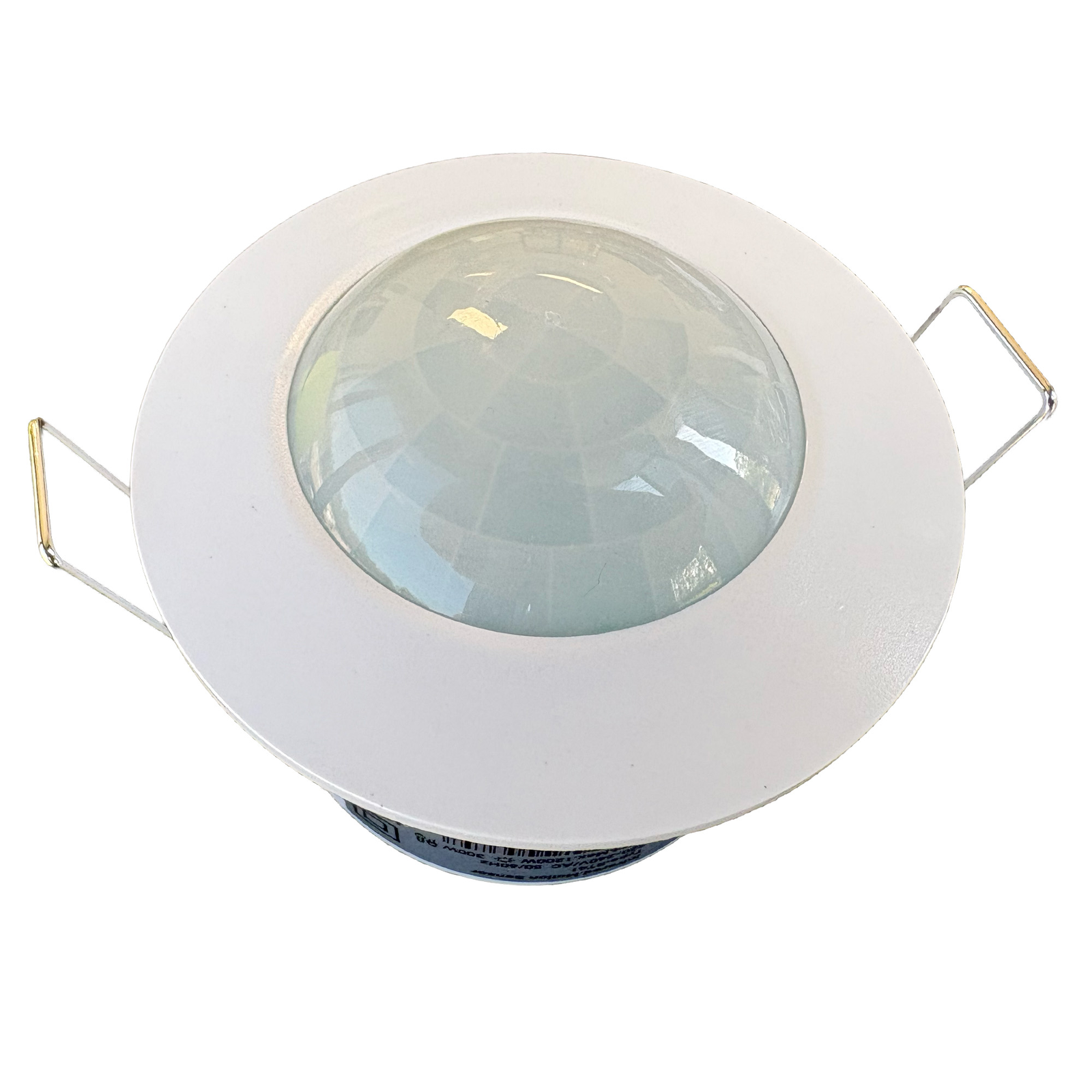

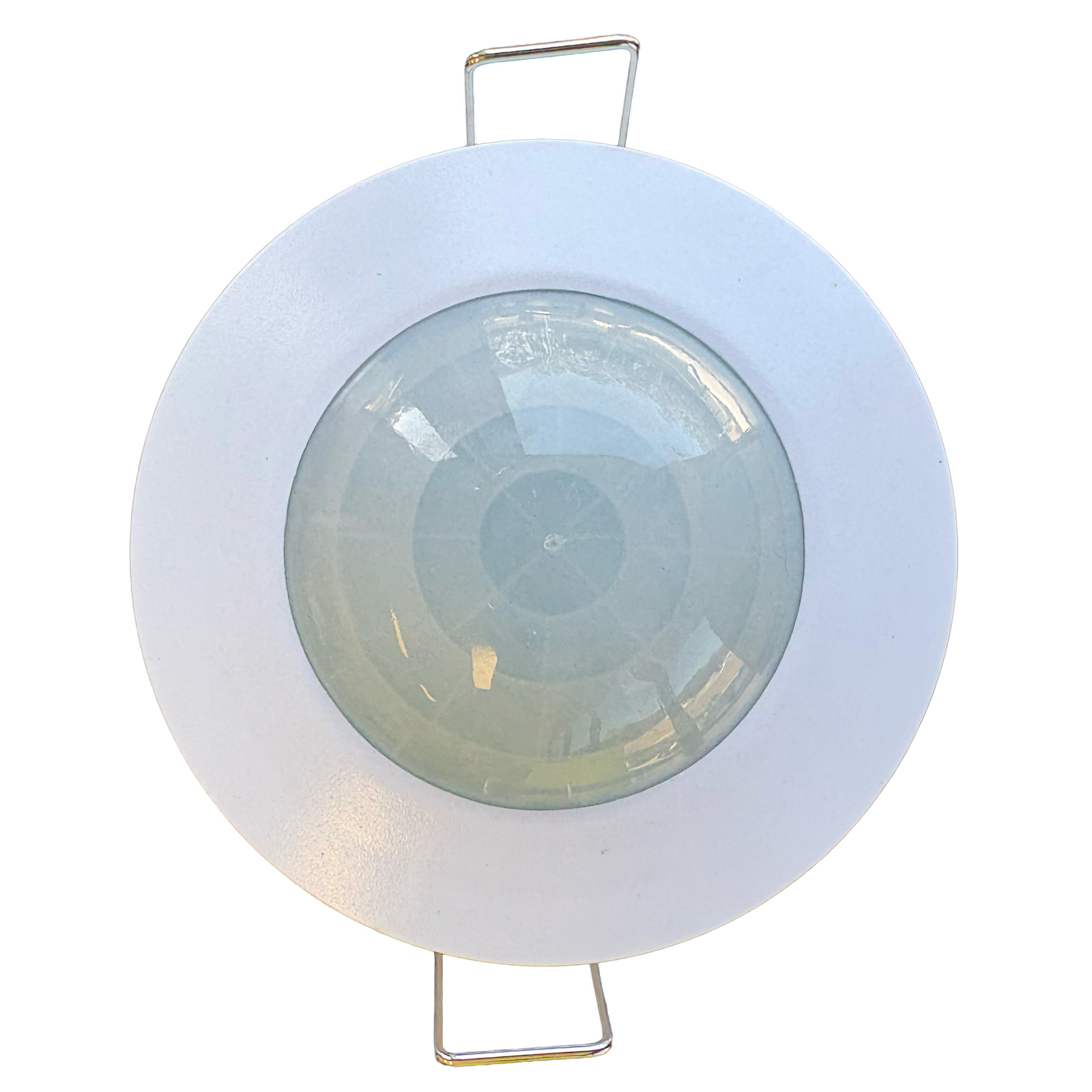

Surface-mounted sensors are practical but visible. The TESST41W recesses into a 60.5mm ceiling cut-out, leaving a low-profile white lens that blends into plasterboard ceilings. Spring clips hold the body firmly in place, and the mounting height range of 2.2m to 4m covers standard Australian residential and light commercial ceiling heights.

Sized for real lighting loads
With a 1200W incandescent rating on 220-240V supply, 300W for energy-saving lamps and a maximum 300W LED load, one sensor can comfortably run a bank of LED downlights or a garage batten. Electricians can pair it with new or existing switched circuits where hands-free control is wanted.

Q: What size hole do I need to cut for the Tesla TESST41W?
A: The sensor is designed for a 60.5mm diameter ceiling cut-out, similar to a small downlight hole, and is held in place by spring clips.

Q: Can the TESST41W switch LED lights?
A: Yes. It is rated for a maximum LED load of 300W, alongside 1200W of incandescent or 300W of energy-saving lamp load on 220-240V AC.

Q: Can I stop the sensor triggering during the day?
A: Yes. The ambient light threshold is adjustable from below 3 lux up to 2000 lux, so it can be set to operate only after dark.
