Tesla HPF232 Double Pole Weatherproof Isolator Switch 32A 250V IP66 Surface Mount

Description

IP66 double pole isolation at 32A for heavier external circuits.

The Tesla HPF232 is a double pole 32A weatherproof isolator switch rated to 250V and IP66, built for surface mounting in exposed outdoor positions. Breaking both active and neutral, it provides complete local isolation for air conditioners, pumps, hot water systems, and other fixed equipment, with a padlockable OFF position and an impact-resistant enclosure. The 32A rating suits heavier circuits than the 20A models in the range.

Key Features

• Tesla HPF232 — Double Pole Weatherproof Isolator Switch
• Rated: 32A, 250V
• IP66 weather protected — suitable for any external application
• Double pole switching — breaks both active and neutral
• Padlockable in the OFF position for safe isolation and lockout
• Impact-resistant base and cover
• Dual 25mm screwed conduit entries top and bottom — four ways to surface wire

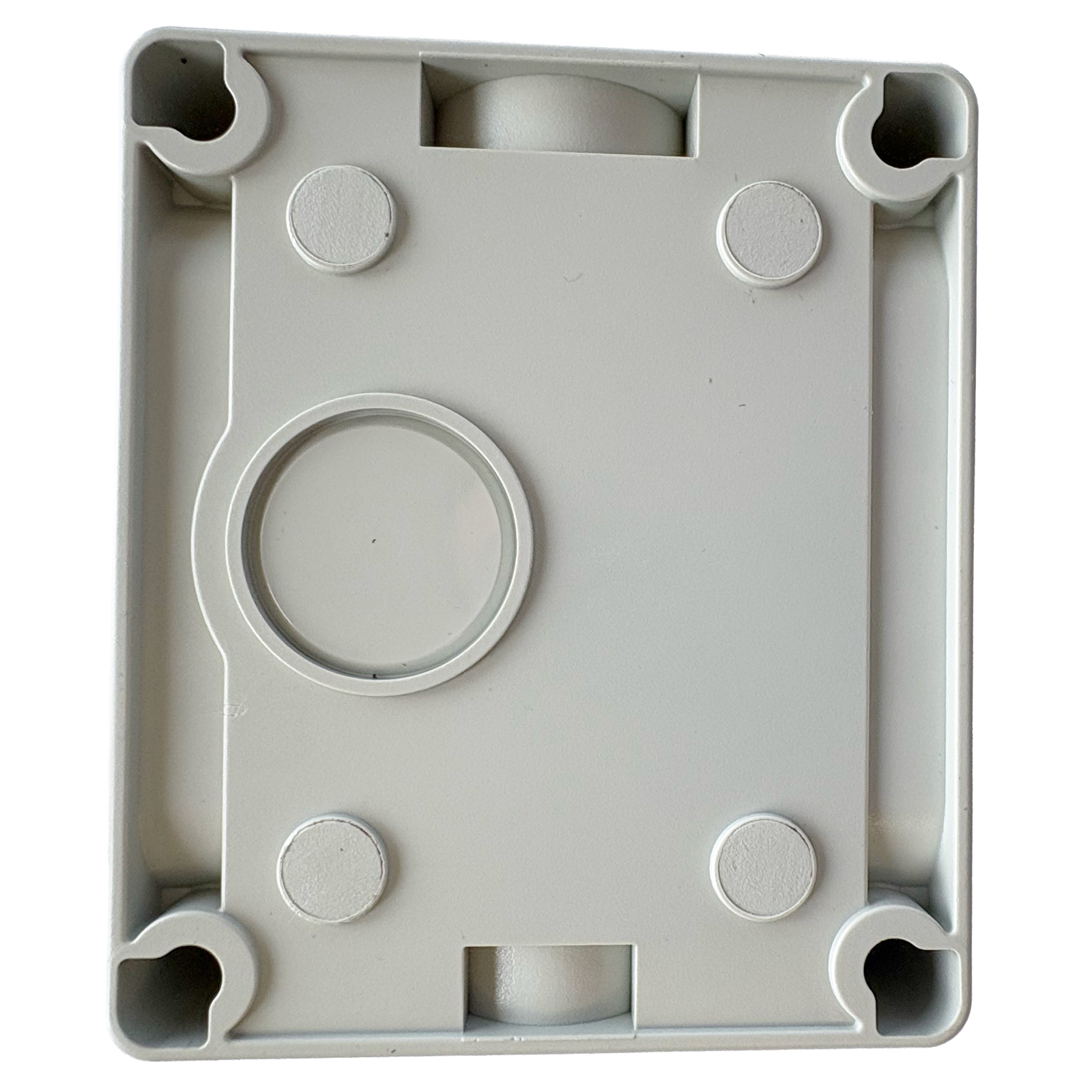

• Ample base entries: two 20mm plain, one 25mm plain, one 20mm each side, plus 25mm rear entry for back wiring
• Supplied with screwed conduit plugs and reducers for 20mm or 25mm conduit, plus screw caps
• Insulated caps cover the base mounting screws
• Dimensions: 85mm x 85mm x 84mm (H)

View specs and order now for fast dispatch Australia-wide.

Why the Tesla HPF232 Isolator Belongs on the Job

Complete two-pole isolation at 32A
Fixed equipment such as air conditioner condensers, pumps, and hot water systems needs a local isolation point so it can be safely switched off for service without returning to the switchboard. The HPF232 does that as a double pole switch, breaking both the active and neutral conductors rather than the active alone — complete isolation for the appliance. At 32A it handles heavier circuits than the 20A models in the Tesla HPF range, and its IP66 rating means it stands up to dust and powerful water jets in fully exposed positions. A hole is provided to padlock the lever in the OFF position so equipment stays locked out while work is carried out.

Built to be wired quickly and survive the site

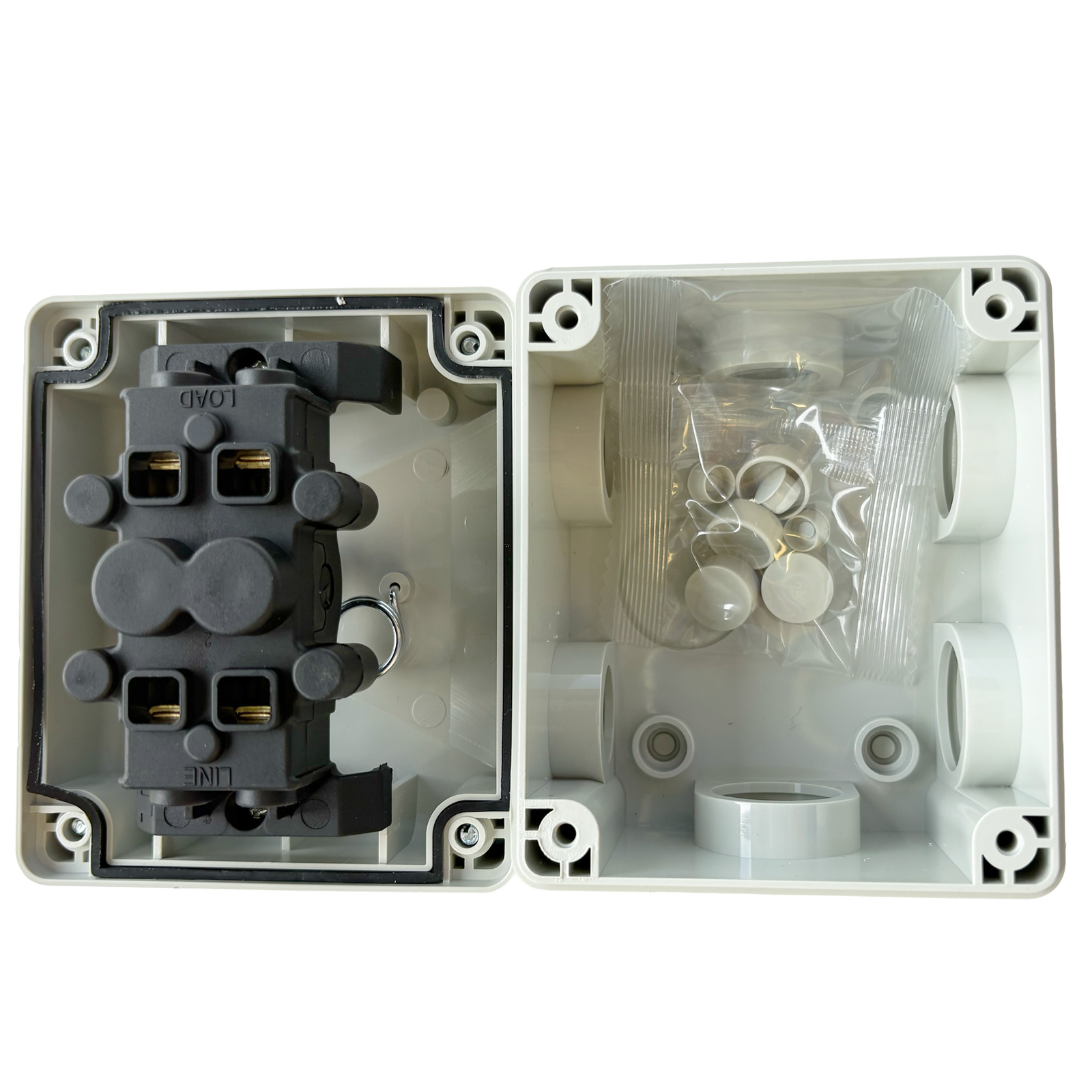

The base mount mechanism gives more wiring room and easy termination, and dual 25mm screwed conduit entries top and bottom allow four ways to surface wire the switch. The base carries ample additional entries — two 20mm plain, one 25mm plain, one 20mm on each side, plus a 25mm rear entry for back wiring. Each unit ships with screwed plugs and reducers for 20mm and 25mm conduit, plus the screw caps that must be fitted to maintain the IP rating. The impact-resistant base and cover survive the hardest knock, and insulated caps cover the base mounting screws.

Compact surface-mount footprint
At 85mm x 85mm with an overall height of 84mm, the HPF232 mounts neatly to a wall or post. Installation and connection must be carried out by a licensed electrician in accordance with Australian requirements. Tesla Electrical Components is an Australian-based brand headquartered in Wetherill Park, NSW, and this isolator is sold individually and shipped Australia-wide.

Q: Is the Tesla HPF232 suitable for outdoor use?
Yes. The HPF232 is rated IP66 and weather protected, making it suitable for any external application such as air conditioners, pumps, and hot water systems. The supplied screw caps must be installed to maintain the IP rating.

Q: What is the difference between the HPF232 and the 20A models?
The HPF232 is rated 32A rather than 20A, suiting heavier circuits, and like the 20A double pole model it breaks both active and neutral for complete isolation.

Q: Can the Tesla HPF232 be locked off?
Yes. A hole is provided so the lever can be padlocked in the OFF position, allowing the switch to be locked out during servicing.
