Clipsal 56AI532-GY Appliance Inlet 500V 32A 5 Pin 3 Phase Neutral Angled IP66

SKU: cliappinl532

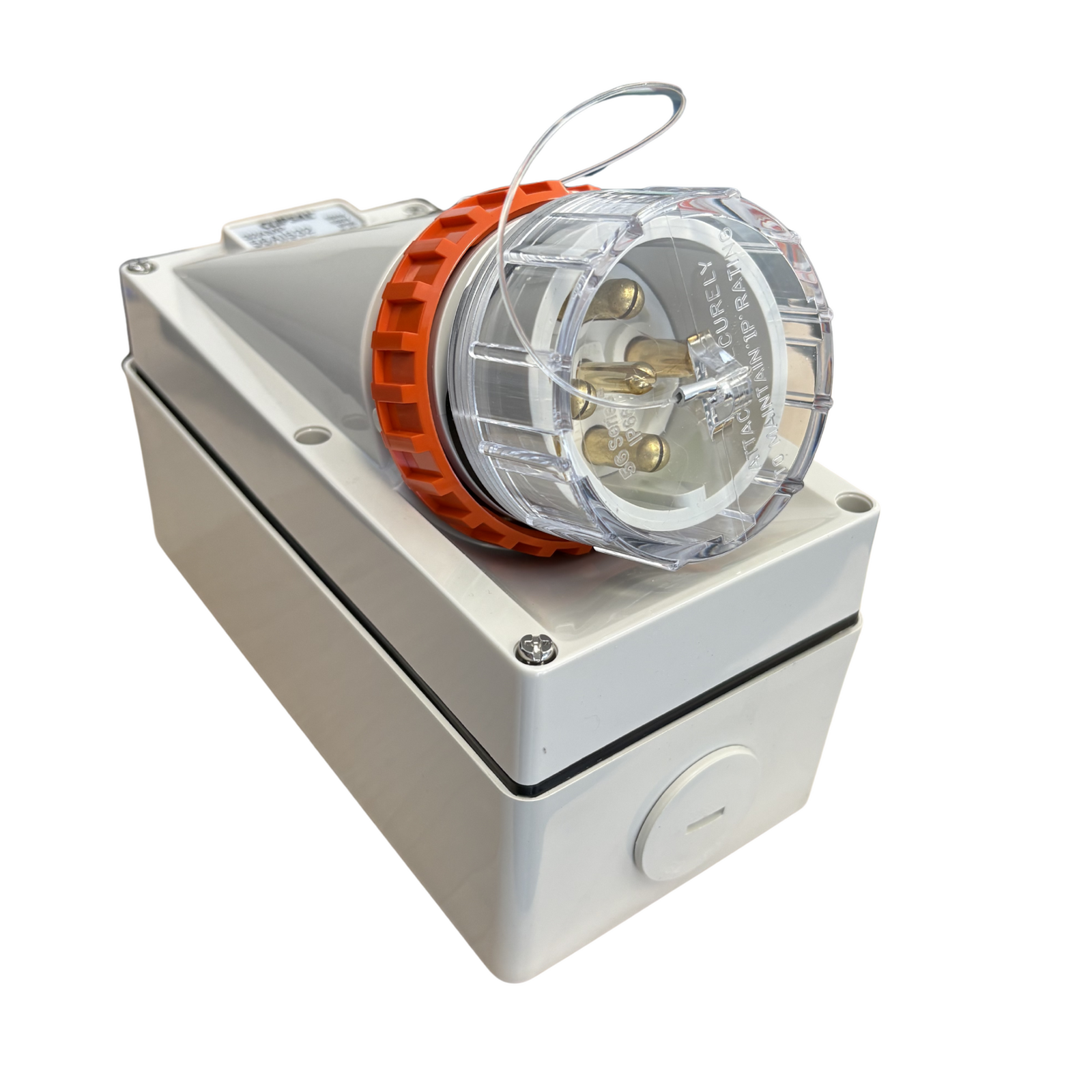

Product image thumbnail for SKU cliappinl532

Download Data Sheet

$298.36 (ex-GST)

$328.20 (inc-GST)

$328.20

$298.36

(inc-GST)

(ex-GST)

⚫︎ Ships in 2-5 days

Clipsal 56 Series IP66 appliance inlet, 500V 32A. Five round pins (3P + N + E) including neutral, angled body, 6-16mm² terminals. AS/NZS 60320.1, grey.

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

A five-pin three-phase IP66 inlet with neutral, for 500V industrial equipment.

The Clipsal 56AI532-GY is a 500V 32A appliance inlet from the rugged 56 Series, in grey. Its five round pins carry three phases, neutral, and earth (3P + N + E) – a different configuration from the four-pin inlets in the range, which carry three phases and earth only. The angled body provides a secure, weatherproof feed point for high-current industrial machinery.

Key Features

500V, 32A appliance inlet
Five round pins – three phases, neutral, and earth (3P + N + E)
Angled body design
IP66 rated – dust-tight and protected against powerful water jets
Surface mount
Brass screw terminals accepting 6–16mm² rigid or stranded cable
Polycarbonate cover, durable plastic body
Made to AS/NZS 60320.1, IP66 to AS 60529
Wide operating range: -25 to 75°C
Grey finish

Order yours online now.

Why it Matters

Five Pins: Three Phases, Neutral, and Earth
This inlet includes a neutral, unlike the four-pin three-phase inlets in the range which carry three phases and earth only. Check your equipment's connection requirements to confirm which configuration you need – your electrician can advise on the correct inlet for the installation.

32A with Heavy-Gauge Terminals
The 32A rating handles substantially heavier loads than the 10A and 20A five-pin inlets, with brass screw terminals accepting 6 to 16mm² cable – matching the conductor sizes required for 32A circuits.

Angled Body
This unit has an angled body rather than a straight one, which changes how the plug and lead sit once connected. Worth checking against your mounting position and cable route before ordering.

What is the Clipsal 56AI532-GY?
It is a 500V 32A IP66 appliance inlet with five round pins carrying three phases, neutral, and earth, used to feed power into industrial equipment through a weatherproof connection.

How is this different from the four-pin version?
The four-pin inlets carry three phases plus earth (3P + E). This five-pin version also includes a neutral (3P + N + E).

What cable does it take?
The brass screw terminals accept 6 to 16mm² rigid or stranded cable, sized for 32A circuits.

(cliappinl532)

Design
Brand	Clipsal
Range	56 Series
Product type	Appliance inlet
Device application	Power supply
Colour	Grey
Market segment	Small commercial, industrial, utility
Electrical
Rated current	32 A
Rated operational voltage	500 V, 50/60 Hz (EN 60309-2)
Poles	3P + N + E (three phase, neutral & earth, 5 round pins)
Terminals	Brass screw terminals, 6–16 mm² rigid or stranded
Voltage colour	Black
Protection & Physical
IP rating	IP66 (AS 60529)
Mounting mode	Surface mounted
Shape	Angled
Height	204 mm
Width	101 mm
Depth	165 mm
Net weight	980 g
Operating temperature	-25 to 75 °C
Tightening torque	0.8 N·m
Material
Body material	Plastic
Cover material	Polycarbonate
Contact material	Brass screws
Packing
Unit type	PCE
Units per package	1
Package height	15.6 cm
Package width	10.2 cm
Package length	20.1 cm
Package weight	978 g
Compliance
Standards	AS/NZS 60320.1
Outlet standard	Australian/New Zealand (industrial)
Targeted market	Australia
Identification
Manufacturer Part Number	56AI532-GY
Barcode (EAN)	9311554202842
