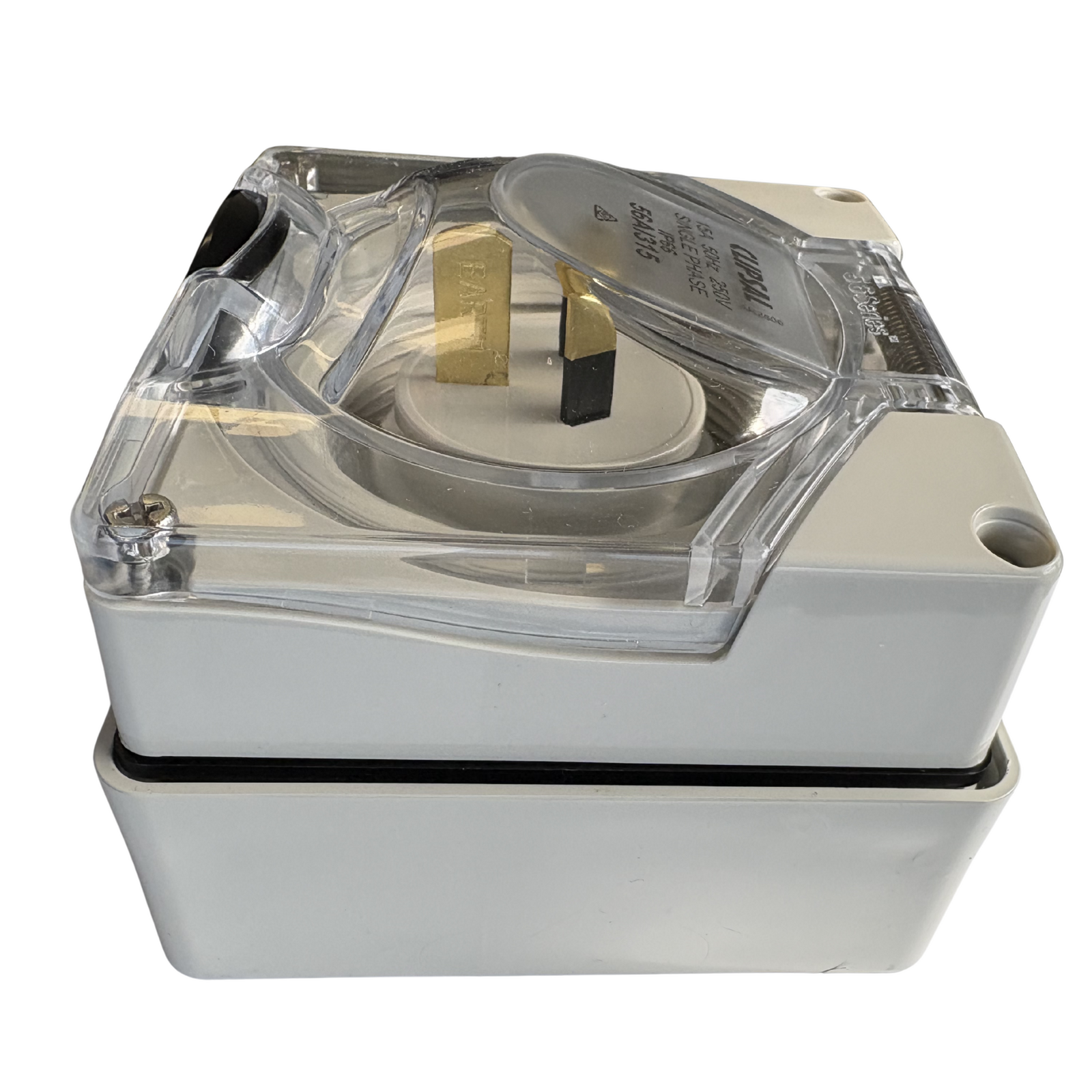

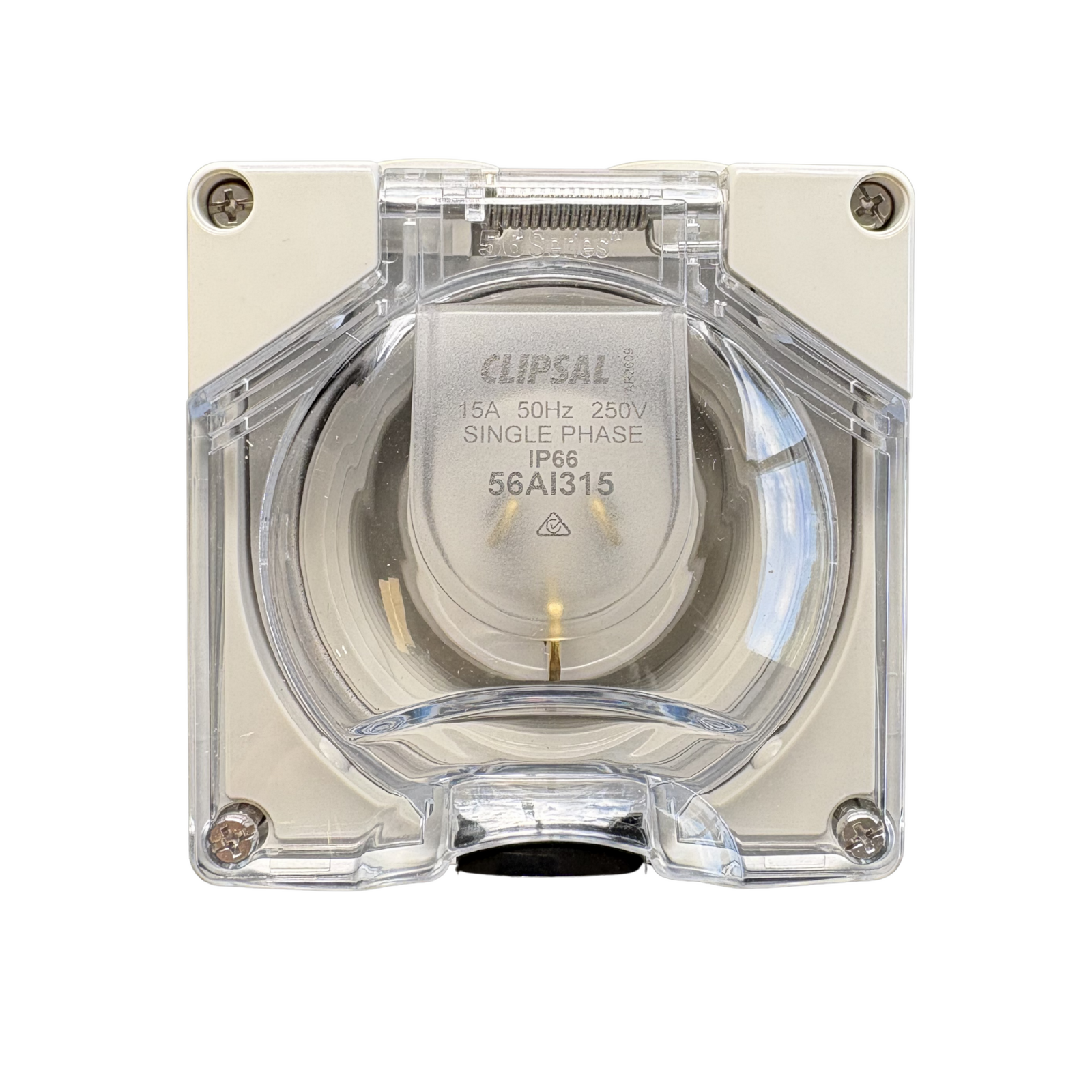

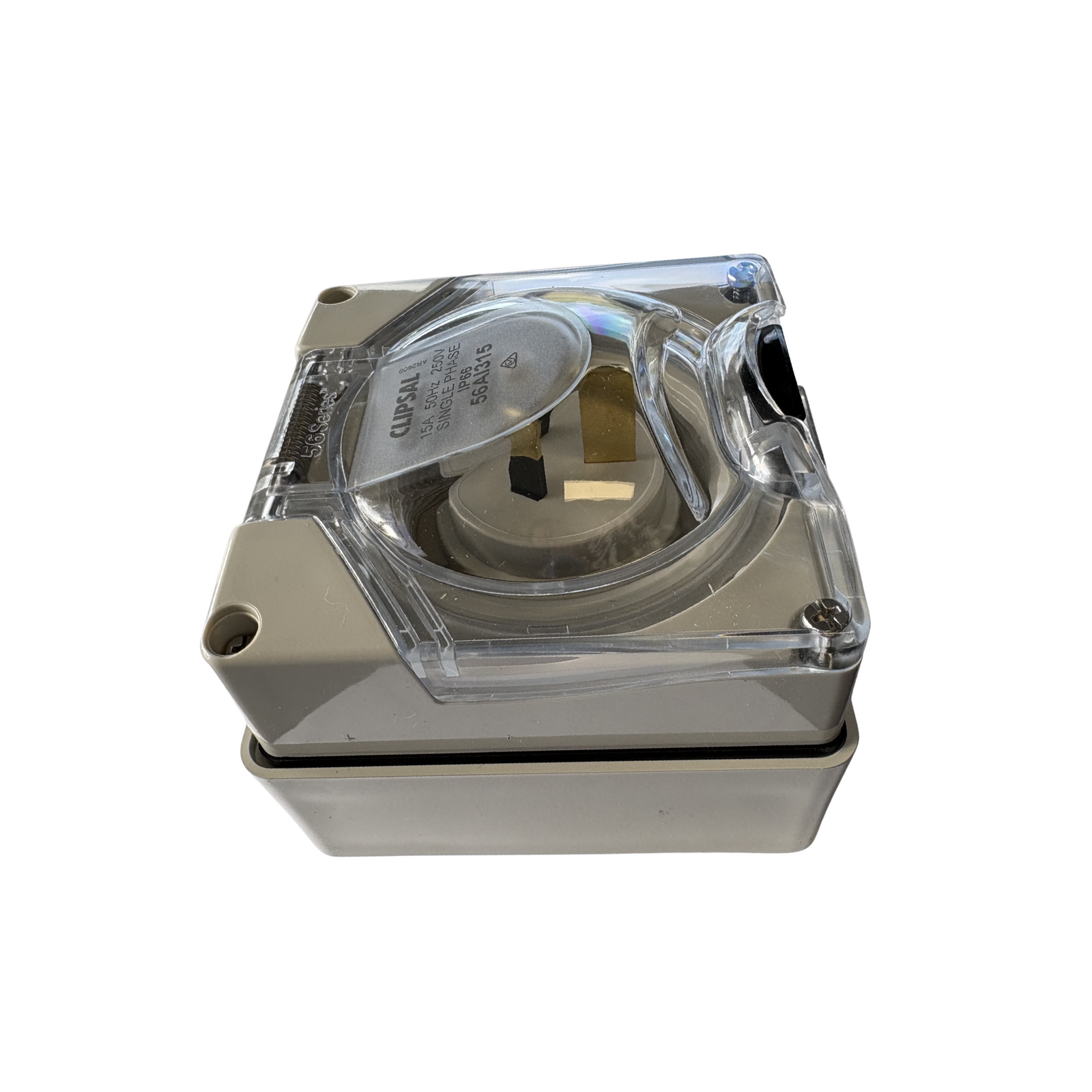

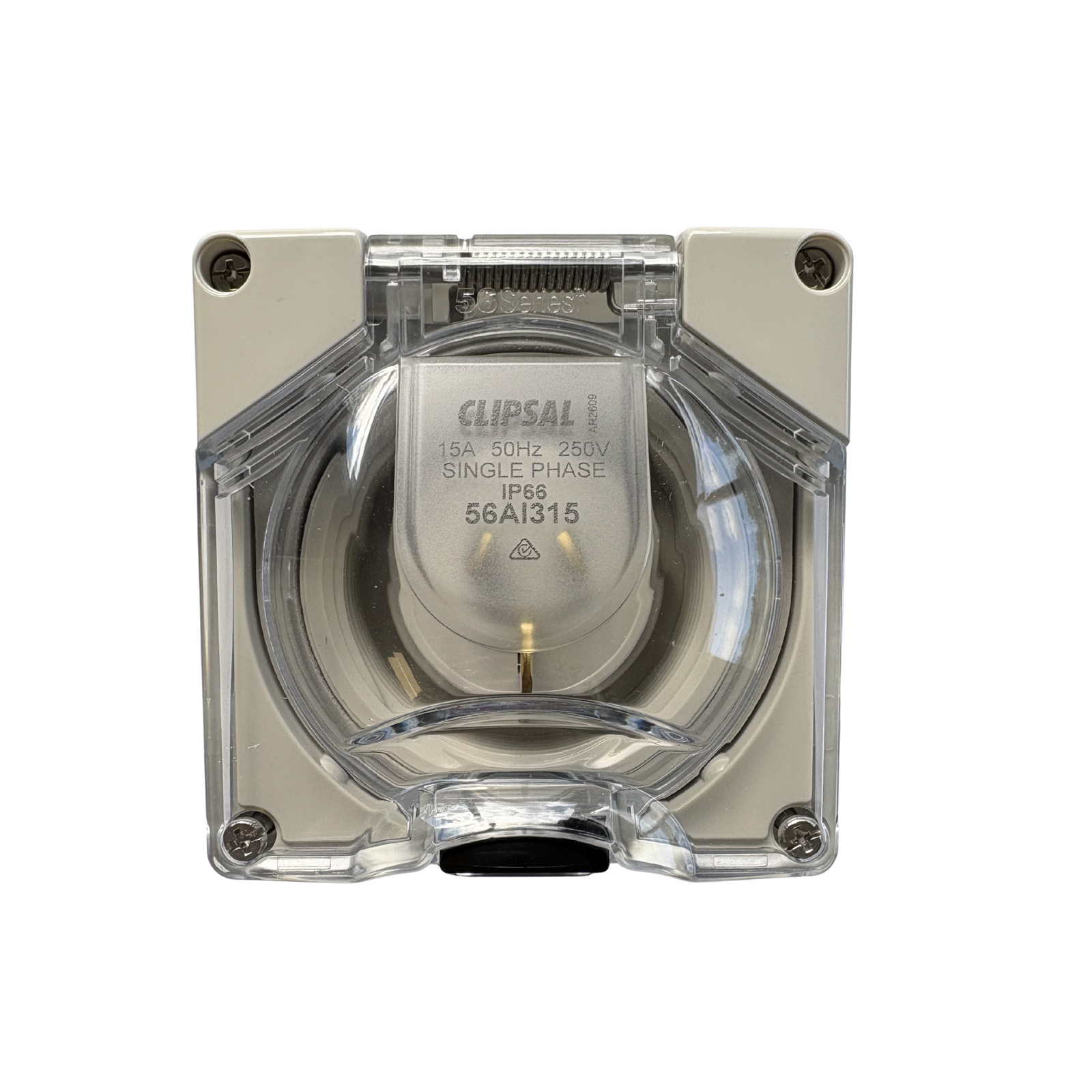

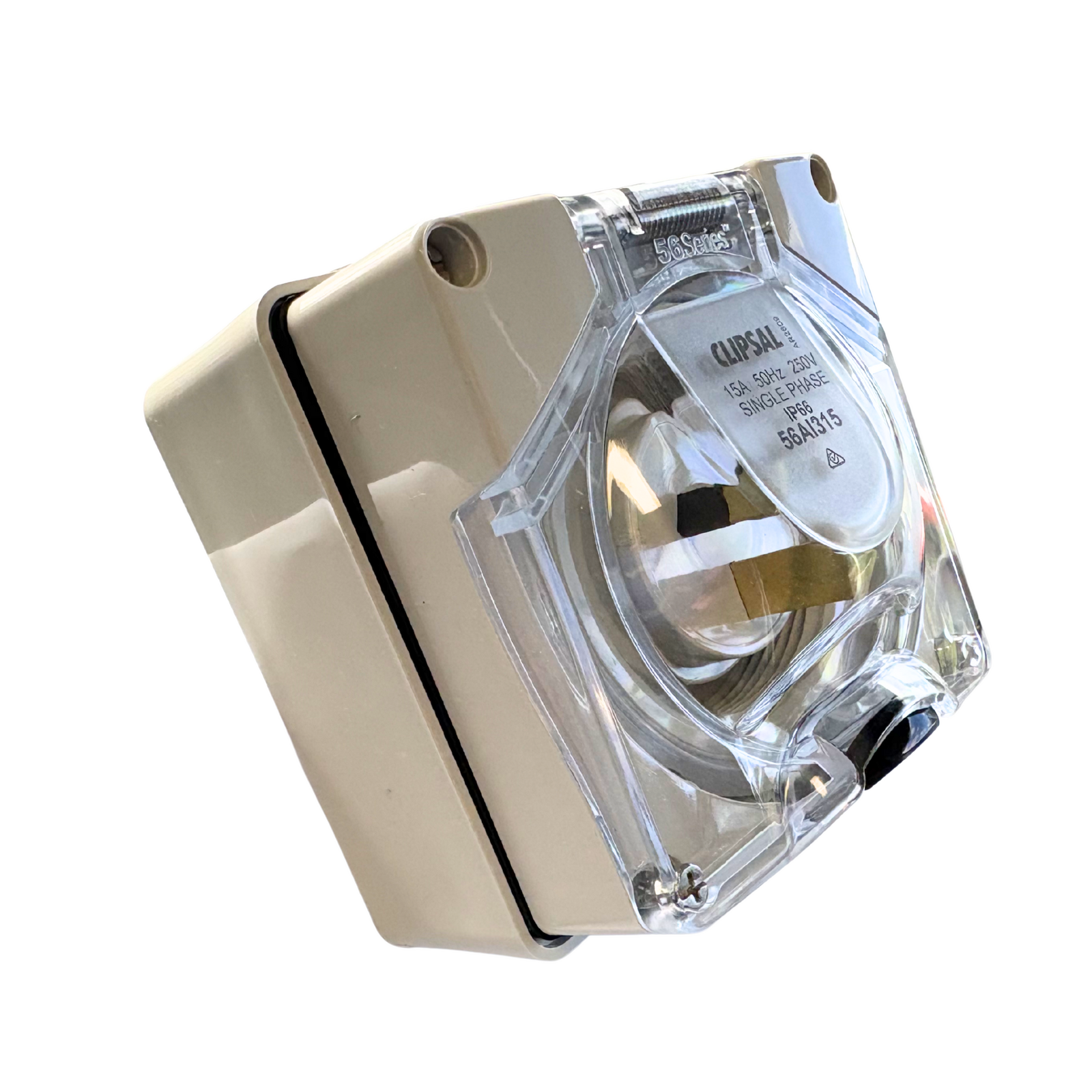

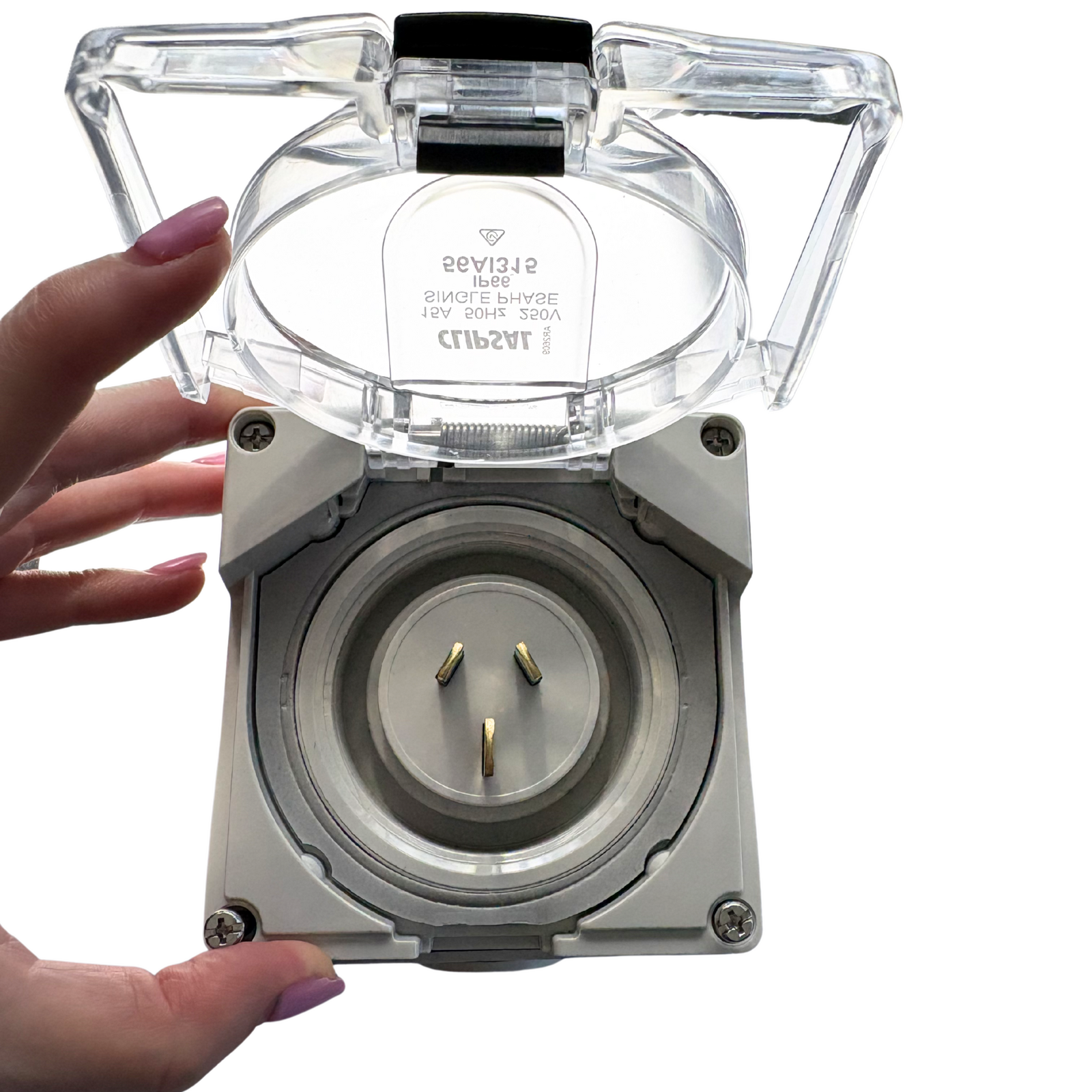

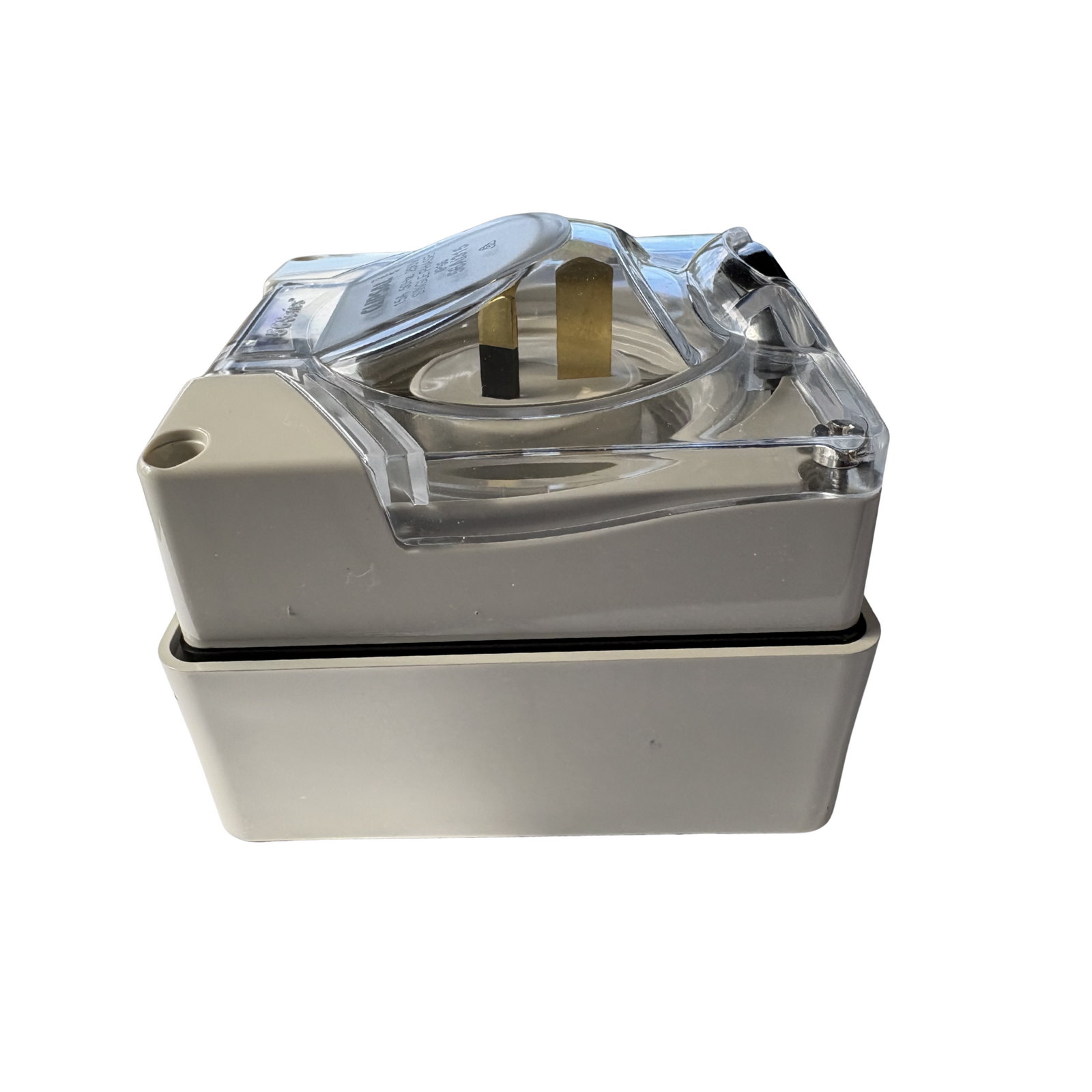

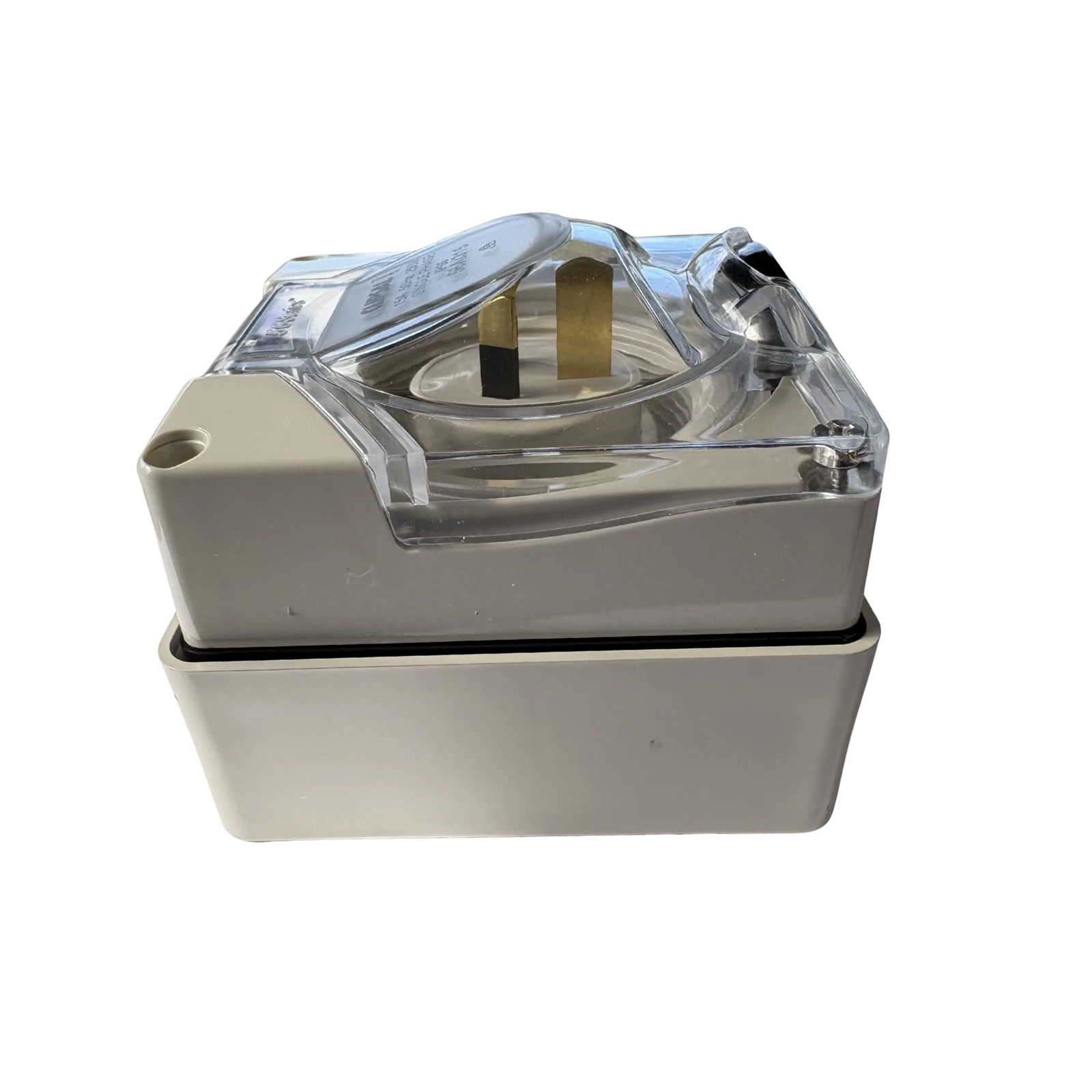

Clipsal 56AI315-GY 56 Series Appliance Inlet 250V 15A 3 Pin IP66 Grey

SKU: cliappinl315

Product image thumbnail for SKU cliappinl315

Download Data Sheet

$121.43 (ex-GST)

$133.57 (inc-GST)

$133.57

$121.43

(inc-GST)

(ex-GST)

⚫︎ Ships in 2-5 days

Clipsal 56 Series IP66 appliance inlet, 250V 15A, three flat pins. Weatherproof 240V connection for caravans, RVs, and industrial equipment. AS/NZS 60320.1, grey.

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

A weatherproof IP66 15A power inlet for 240V appliances and caravans.

The Clipsal 56AI315-GY is a 250V 15A appliance inlet from the rugged 56 Series, in grey. With three flat pins and an IP66 rating, it provides a secure, weatherproof point to feed 240V power into a caravan, RV, or piece of industrial equipment – the 15A rating suiting higher-draw loads than a standard 10A inlet. Built to Australian standards for demanding outdoor and industrial use.

Key Features

250V, 15A appliance inlet
Three flat pins (Active, Neutral, Earth)
IP66 rated – dust-tight and protected against powerful water jets
Surface mount
Brass screw terminals accepting 2.5–6mm² rigid or stranded cable
Polycarbonate cover, durable plastic body
Made to AS/NZS 60320.1, IP66 to AS 60529
Wide operating range: -25 to 75°C
Grey finish (RAL 7035)

Order yours online now.

Why it Matters

15A for Higher-Draw Loads
The 15A rating gives extra capacity over a standard 10A inlet – suited to higher-current caravans, RVs, and equipment. Combined with the IP66 rating (fully dust-tight, withstands powerful water jets), it's built for a connection that's exposed to weather on a caravan, trailer, or outdoor installation.

For Caravans, RVs, and Industry
The 250V 15A three-flat-pin format suits connecting a higher-draw caravan or RV to 240V site power, and equally suits industrial and commercial equipment that needs a rugged, weatherproof inlet. Built to Australian and New Zealand standards throughout.

Solid, Serviceable Terminals
Brass screw terminals accept 2.5 to 6mm² rigid or stranded cable, giving a secure connection sized for the higher current – wired by a licensed electrician.

What is the Clipsal 56AI315-GY?
It is a 250V 15A IP66 appliance inlet with three flat pins, used to feed 240V power into a caravan, RV, or piece of equipment through a weatherproof connection.

What does IP66 mean?
IP66 means it is completely dust-tight and protected against powerful water jets from any direction – suitable for outdoor and industrial use.

What cable does it take?
The brass screw terminals accept 2.5 to 6mm² rigid or stranded cable.

(cliappinl315)

Design
Range	Clipsal - 56 Series
Range of product	Series 56
Product brand	Clipsal
Product or component type	appliance inlet
Device application	power supply
Colour	grey (RAL 7035)
Market segment	small commercialindustryutility
Physical
[in] rated current	15 A
[ue] rated operational voltage	250 V 50/60 Hz conforming to EN 60309-2
Mounting mode	surface mounted
Outlet standard	industrial
Connections - terminals	screw terminal 2.5-6 mm² rigid or stranded cable
Net weight	0.42 kg
Height	107 mm
Width	101 mm
Depth	82 mm
Standards	AS/NZS 60320.1
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Mercury free	Yes
Material
Material	plastic
Material	polycarbonate: cover
Contacts material	screws: brass
Others
Poles description	1P + N + E
Voltage colour	blue
Plug, socket category	low voltage
Outlet standard deviation	Australian/New Zealand
Tightening torque	0.8 N.m
Plug, socket, control station shape	straight
Targeted country	Australia
Unit type of package 1	PCE
Package 1 height	8.85 cm
Package 1 width	10.35 cm
Package 1 length	10.65 cm
Package 1 weight	416 g
Recycled metal content at cr level	0
Removable battery	N/A
Global warming ; total life cycle	3 kg CO2 eq.
Minimum percentage of recycled plastic content	0
