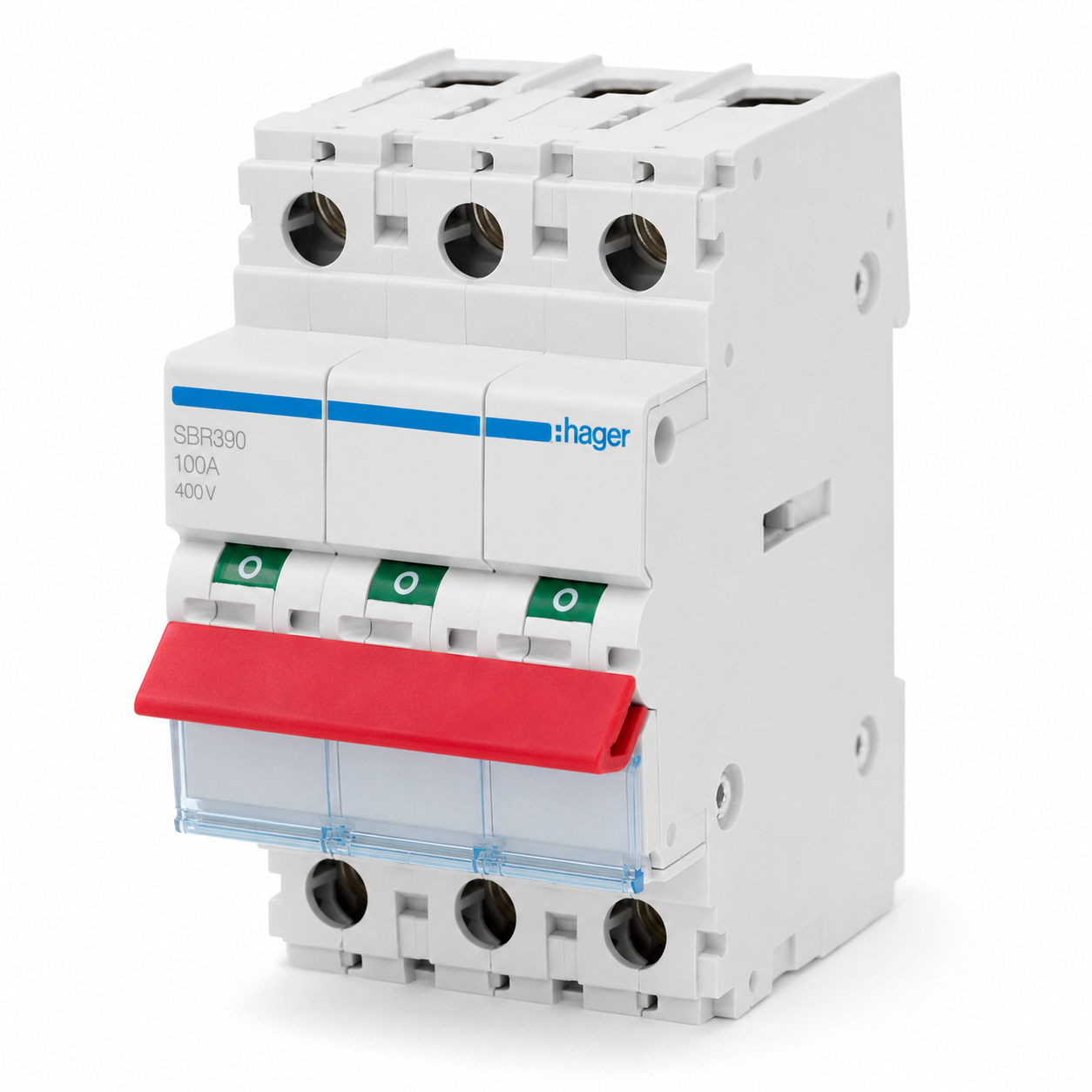

Hager SBR390 100 Amps 3 Pole Modular Load-break / Isolating Switch
SKU: hagisoswi3100
Product Image Gallery
Product Pricing
$66.19 (ex-GST)
$72.81 (inc-GST)
$72.81
$66.19
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ In Stock
Trusted premium Hager product - reliable and safe electrical solutions for professionals
Electrotraders USPs
Description
- Hager SBR390
- 3 Pole Modular Load-break / Isolating Switch
- 100 Amps
(hagisoswi3100)
Specifications
| Architecture | |
| Number of poles | 3 |
| Neutral position | Without neutral |
| Type of pole | 3P |
| Electric current | |
| Rated current | 100 A |
| Rated conditional short-circuit current Icc with gl-gG fuses | 1,20 kA |
| Acceptable current rating AC21 category A | 100 A |
| Acceptable current rating AC21 category B | 100 A |
| Acceptable current rating AC22 category A | 100 A |
| Acceptable current rating AC22 category B | 100 A |
| Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-3 | 1,69 kA |
| Rated short-time withstand current Icw 1s IEC 60947 | 1,20 kA |
| Installation, mounting | |
| Nominal tightening torque | 3,60 - 3,60 Nm |
| Type of bottom connection for modular devices | Screw terminal |
| Voltage | |
| Rated operational voltage Ue | 400 - 400 V |
| Type voltage supply | AC |
| Rated insulation voltage Ui | 440 V |
| Rated impulse withstand voltage Uimp | 6000 V |
| Capacity | |
| Number of modules | 3 |
| Safety | |
| Ingress Protection (IP) class | IP20 |
| Frequency | |
| Frequency | 50 - 60 Hz |
| Dimensions | |
| Height | 83 mm |
| Width | 52,50 mm |
| Depth | 68 mm |
| Equipment | |
| Number of NO contacts | 3 |
| Number of NC contacts | 0 |
| Use conditions | |
| Operating temperature | -20 - 70 DegC |
| Storage/transport temperature | -40 - 80 DegC |
| Connection | |
| Cross-section flexible conductor | 6 - 35 mm^2 |
| Cross-section rigid conductor | 6 - 50 mm^2 |
| Endurance | |
| Number of mechanical operations | 40000 |
| Electrical durability at nominal load in AC21 in operating cycles | 2500 |
| Electrical durability at nominal load in AC22 in operating cycles | 2500 |
| Power | |
| Total power loss under IN | 16,50 W |
| Power loss per pole at In | 5,50 W |
| Connectivity | |
| Down connection alignment for modular devices | Aligned terminal |
| Top connection alignment for modular devices | Aligned terminal |
| SKU | hagisoswi3100 |
| Manfacturer Part Number | SBR390 |
| Barcode # | 3250615510471 |
| Brand | Hager |
