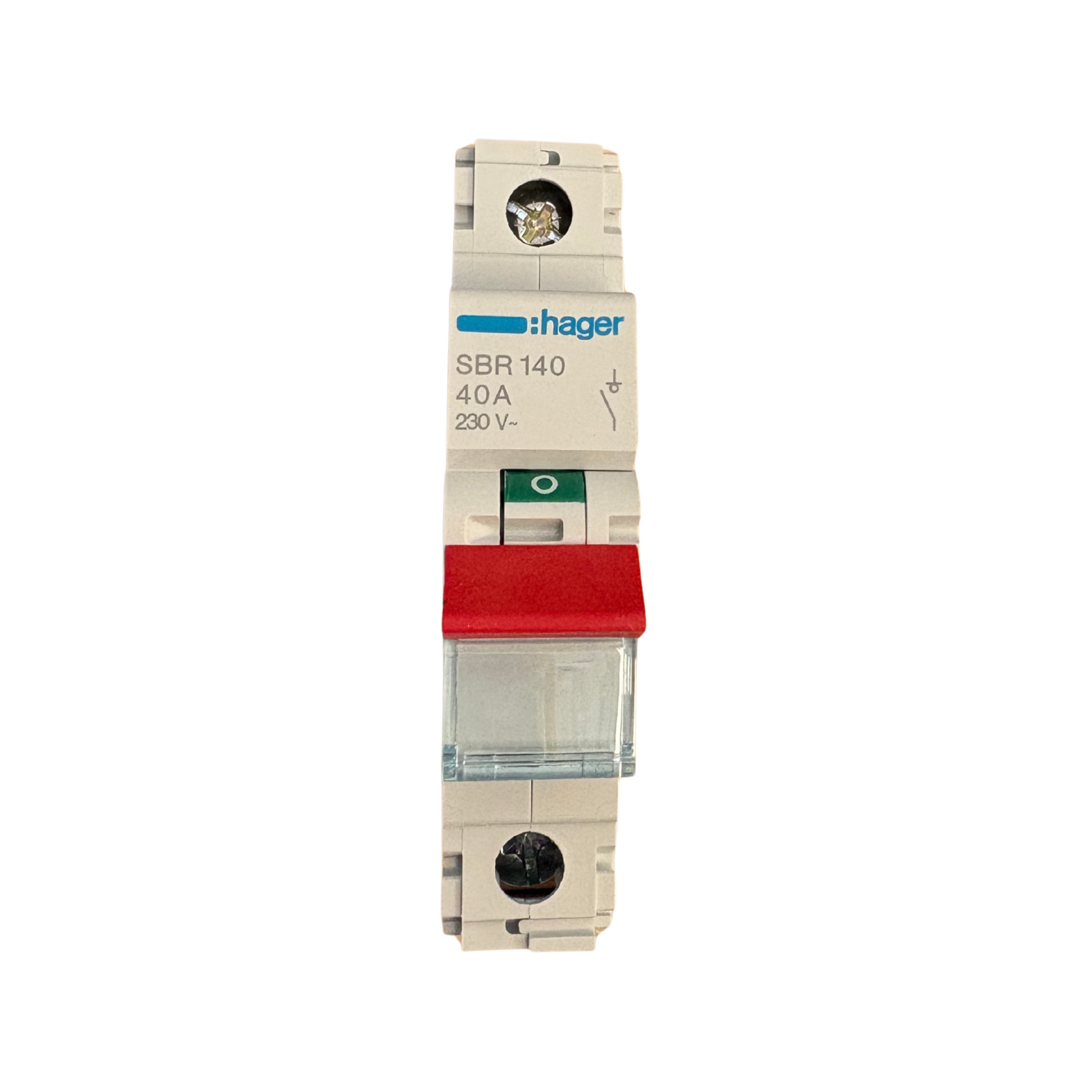

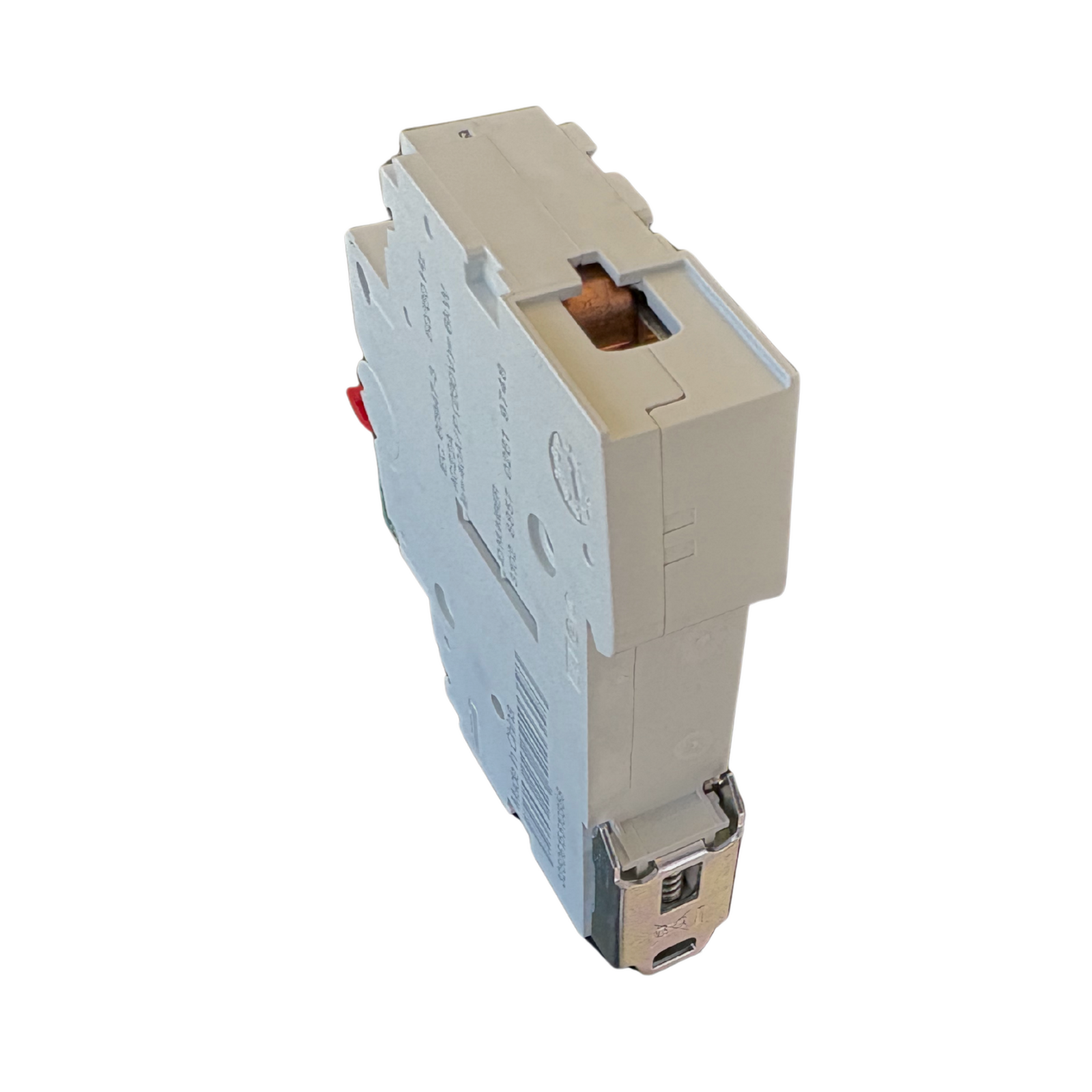

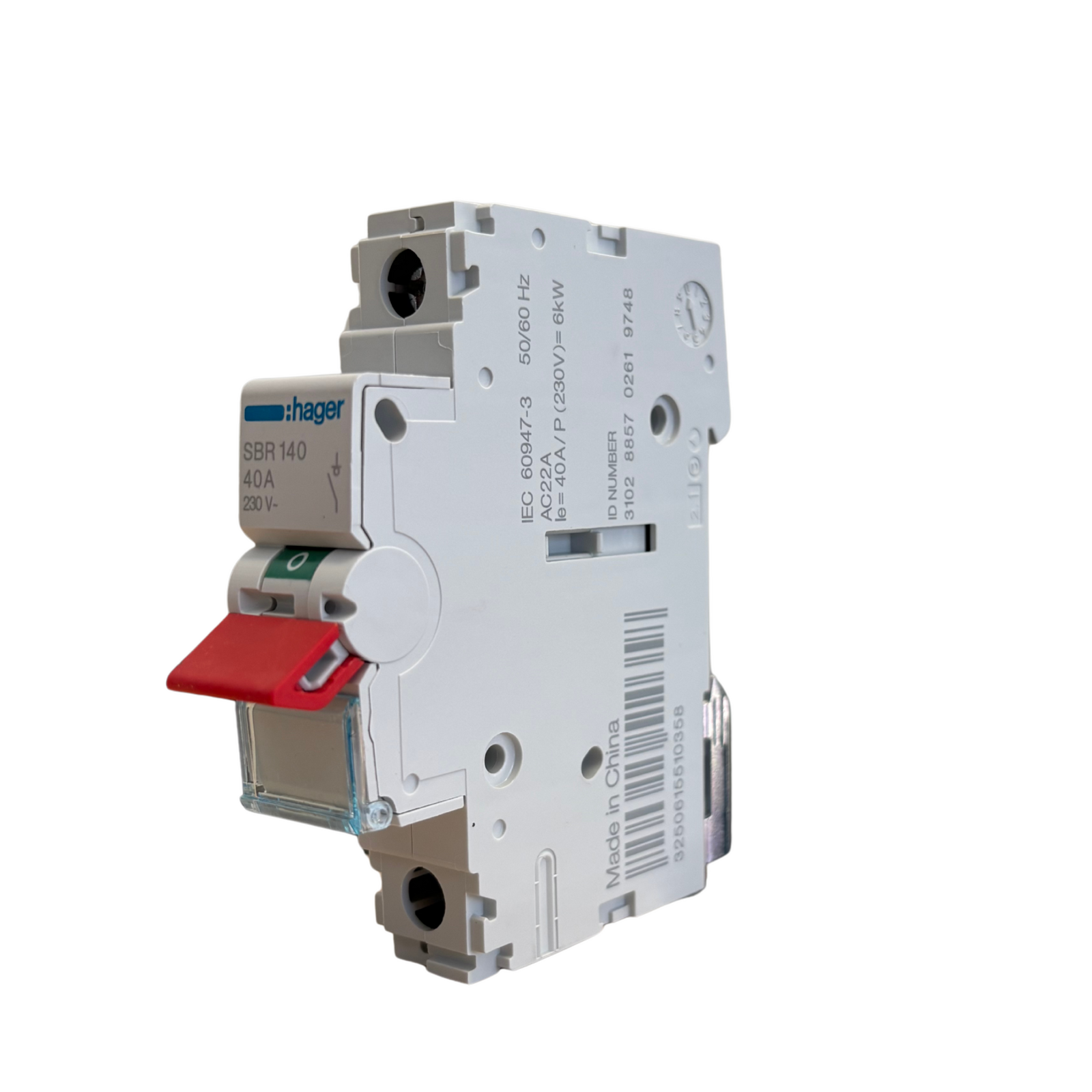

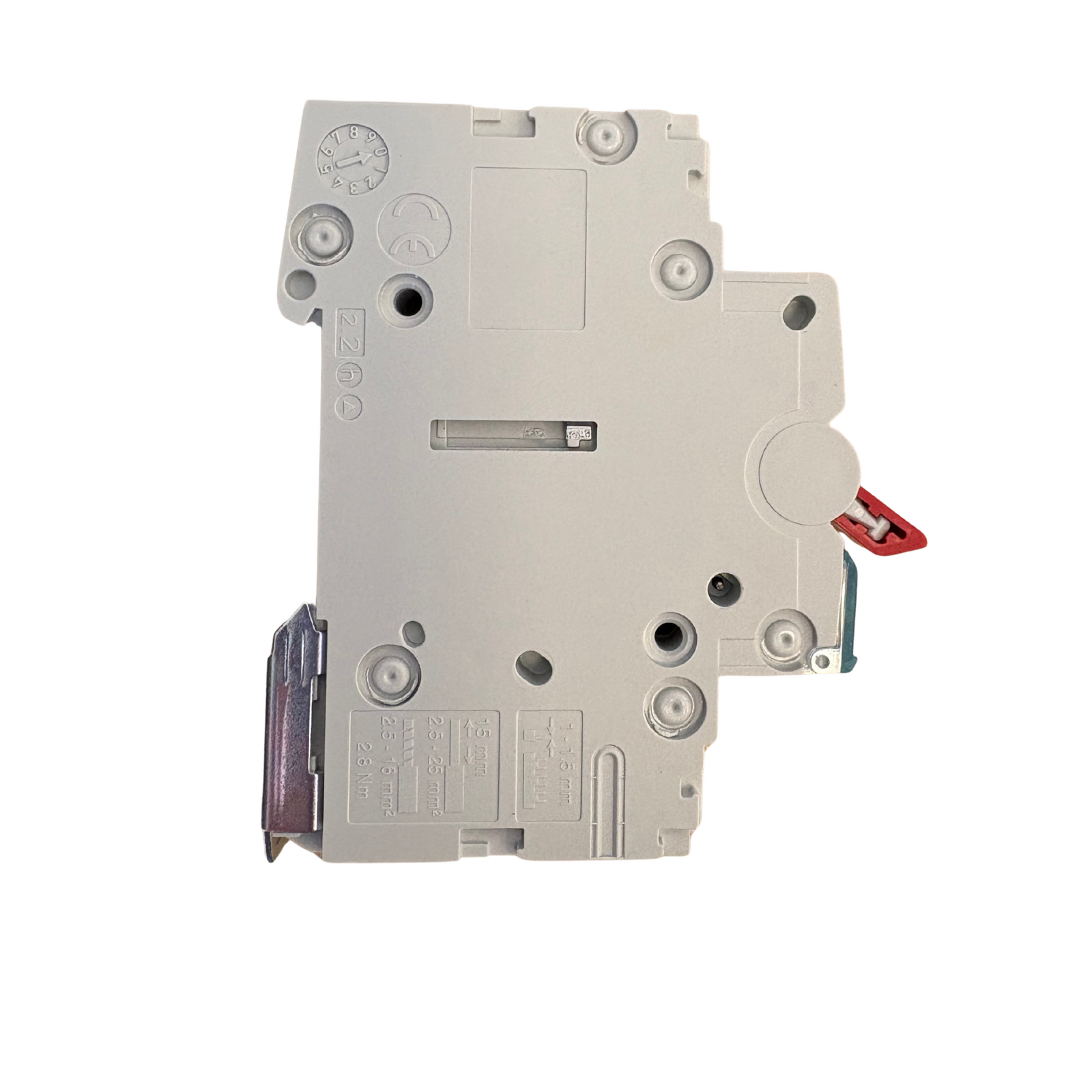

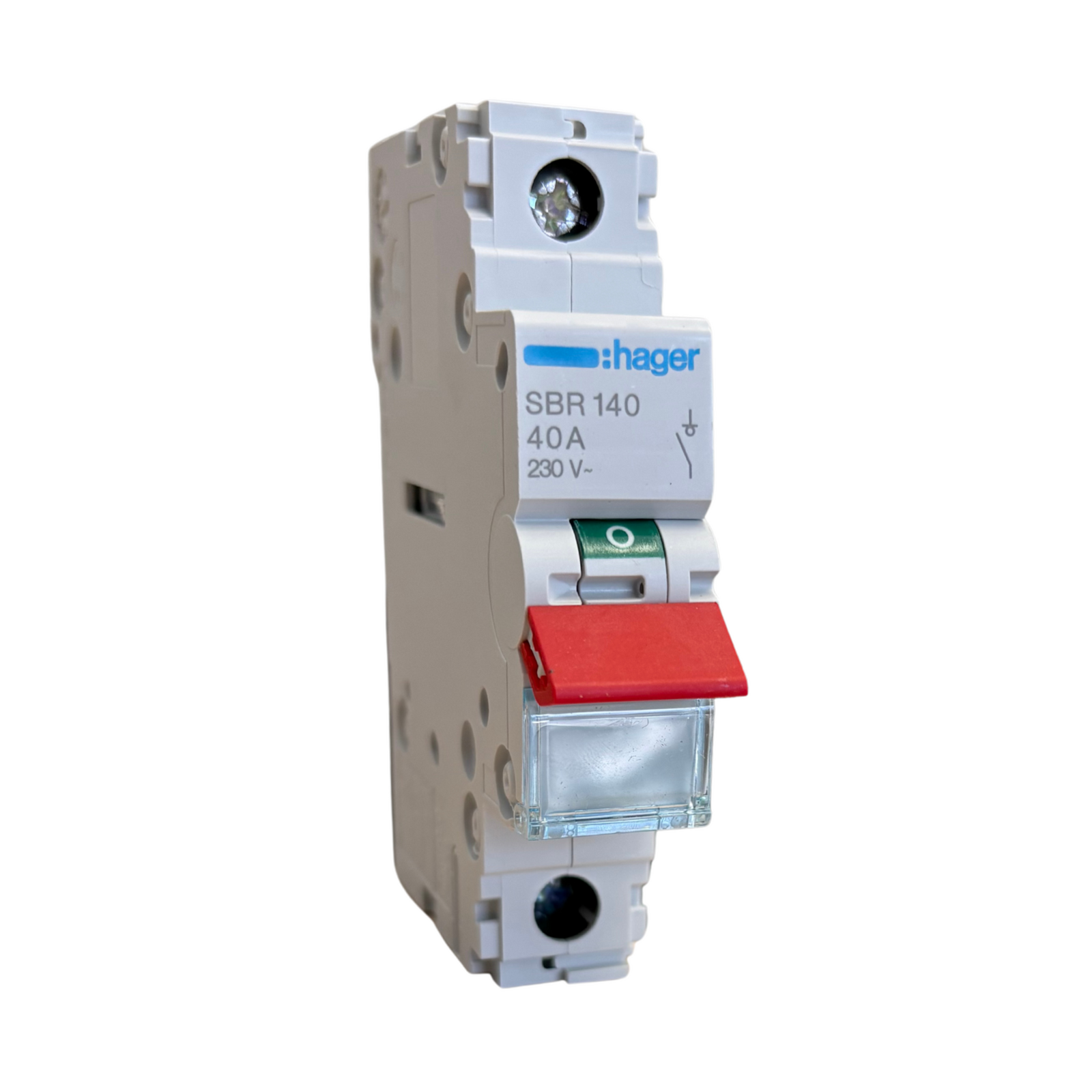

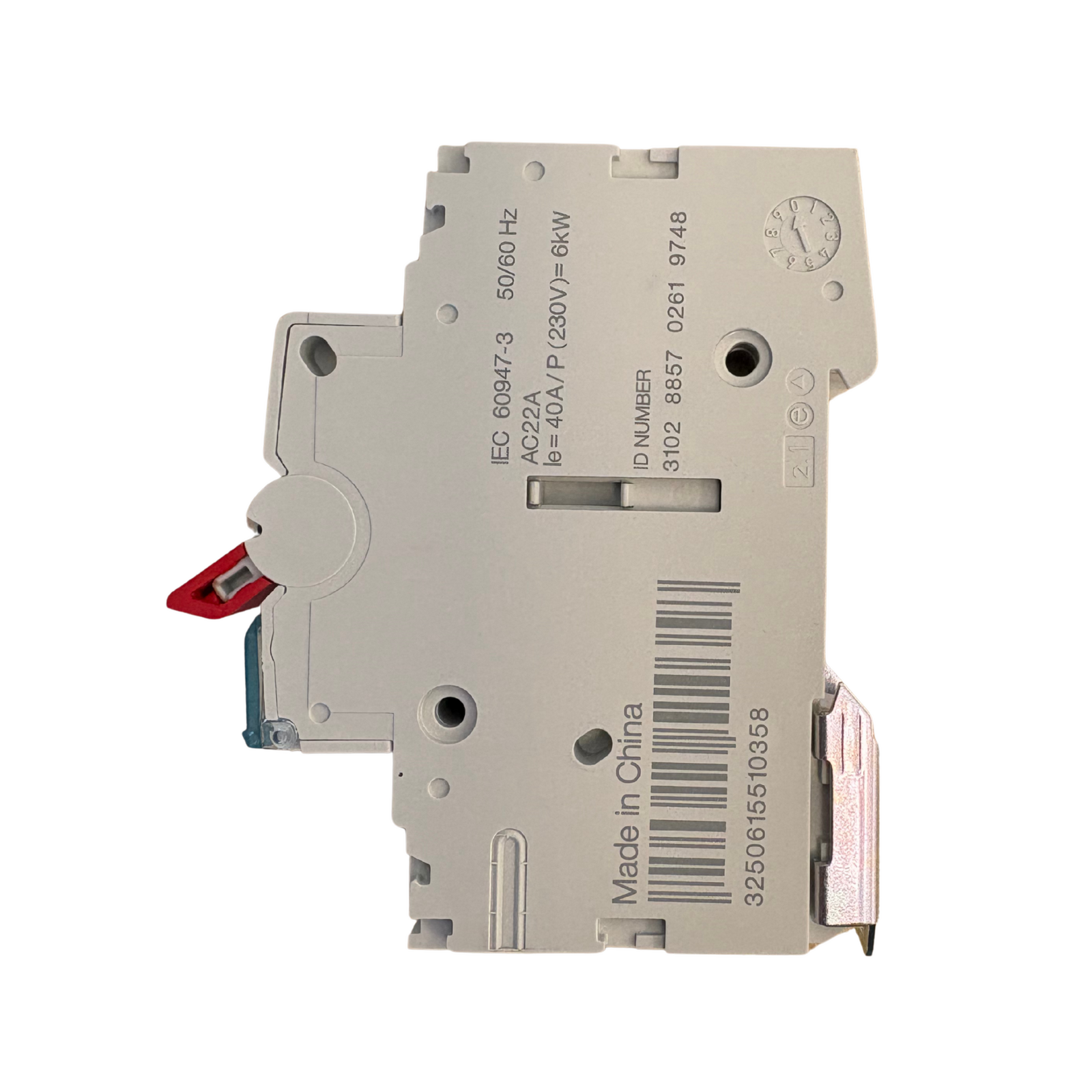

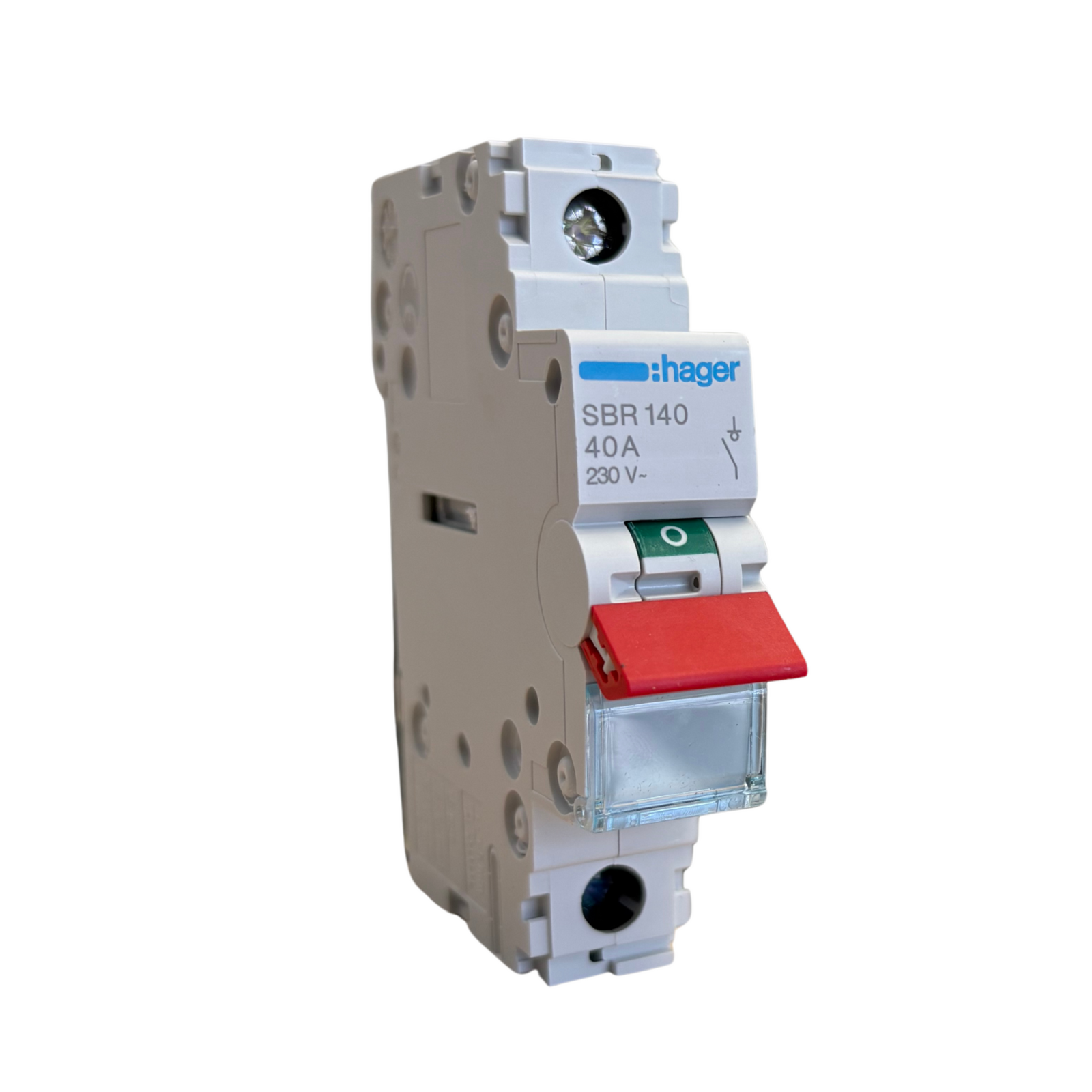

Hager SBR140 40 Amps 1 Pole Modular Load-break / Isolating Switch

SKU: hagisoswi140

Product Image Gallery

Product image thumbnail for SKU hagisoswi140

Product Pricing

$16.94 (ex-GST)

$18.63 (inc-GST)

$18.63

$16.94

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ In Stock

Trusted premium Hager product - reliable and safe electrical solutions for professionals

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200


Description

  • Hager SBR140
  • 1 Pole Modular Load-break / Isolating Switch
  • 40 Amps

(hagisoswi140)

Specifications

Architecture
Number of poles1
Neutral positionWithout neutral
Type of pole1P
Electric current
Rated current40 A
Acceptable current rating AC21 category A40 A
Acceptable current rating AC21 category B40 A
Acceptable current rating AC22 category A40 A
Acceptable current rating AC22 category B40 A
Rated short-circuit making capacity Icm under 240 V AC according to IEC 60947-30,84 kA
Rated short-time withstand current Icw 1s IEC 609470,60 kA
Rated conditional short-circuit current Inc with fuse according to IEC/EN 60669-2-46000A/80A gG parallel 16A gG
Installation, mounting
Nominal tightening torque2,80 - 2,80 Nm
Voltage
Rated operational voltage Ue230 - 230 V
Type voltage supplyAC
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp6000 V
Capacity
Number of modules1
Safety
Ingress Protection (IP) classIP20
Frequency
Frequency50 - 60 Hz
Dimensions
Height83 mm
Width17,50 mm
Depth68 mm
Equipment
Number of NO contacts1
Number of NC contacts0
Use conditions
Operating temperature-20 - 70 DegC
Storage/transport temperature-40 - 80 DegC
Connection
Cross-section flexible conductor2.5 - 16 mm^2
Cross-section rigid conductor2.5 - 25 mm^2
Endurance
Number of mechanical operations60000
Electrical durability at nominal load in AC21 in operating cycles5000
Electrical durability at nominal load in AC22 in operating cycles5000
Power
Total power loss under IN1,10 W
Power loss per pole at In1,10 W
Connectivity
Top connection alignment for modular devicesAligned terminal
SKU hagisoswi140
Manfacturer Part Number SBR140
Barcode # 3250615510358
Brand Hager
