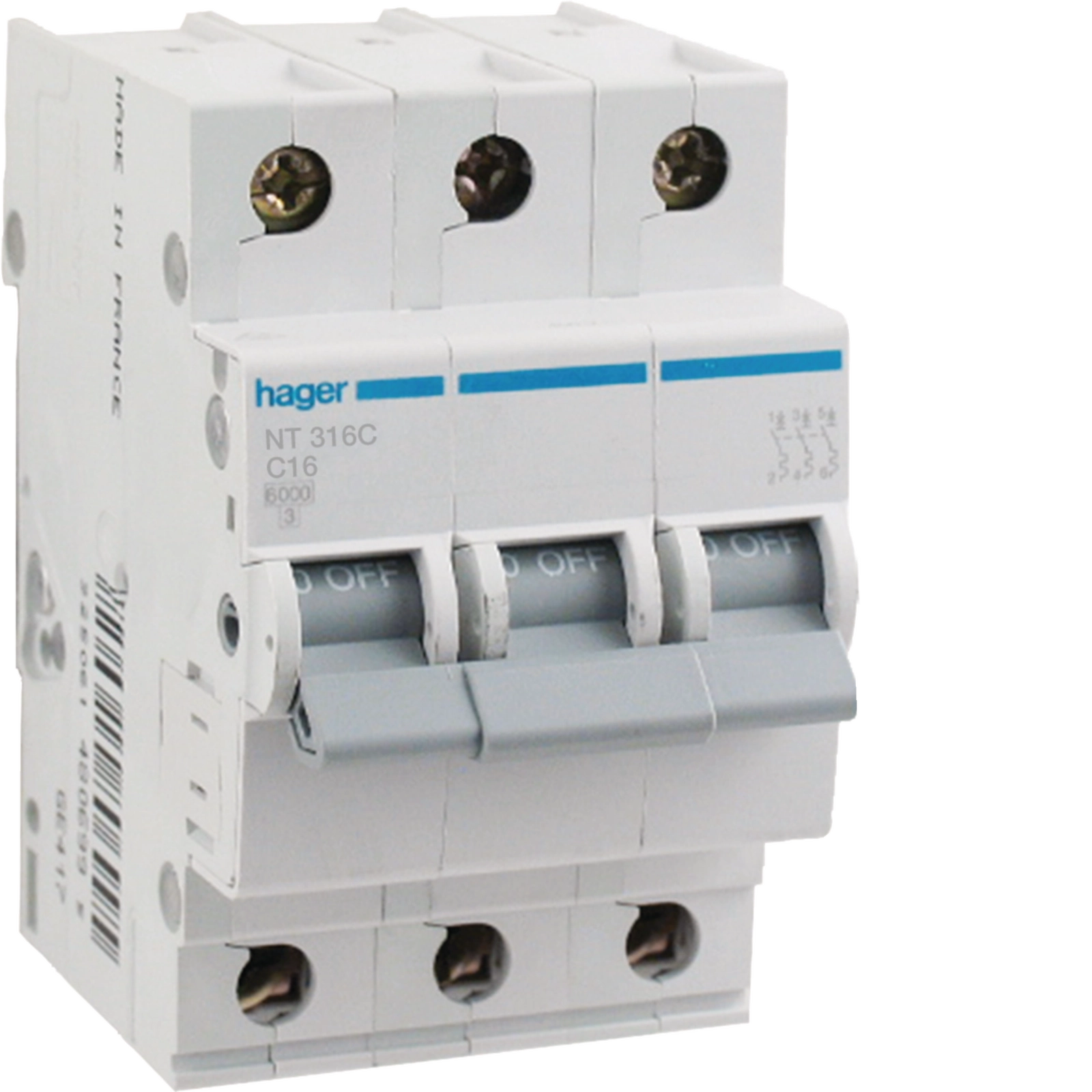

Hager NT316C 16 Amps 3 Pole MCB Circuit Breaker 10kA

SKU: hagmcb31610k

Product Image Gallery

Product image thumbnail for SKU hagmcb31610k

Product Pricing

$57.69 (ex-GST)

$63.46 (inc-GST)

$63.46

$57.69

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ In Stock

Trusted premium Hager product - reliable and safe electrical solutions for professionals

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200


Description

  • Hager NT316C
  • 3 Pole MCB 10kA
  • 16 Amps

(hagmcb31610k)

Specifications

Electric current
Rated current16 A
Architecture
Type of pole3P
CurveC
Capacity
Number of modules3
Installation, mounting
Nominal tightening torque top terminal2,80 - 2,80 Nm
Nominal tightening torque down terminal2,80 - 2,80 Nm
Nominal tightening torque2,80 - 2,80 Nm
Type of bottom connection for modular devicesbiconnect
Type of top connection for modular devicesScrew terminal
360?ø mounting position possibleYes
Main electrical attributes
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
Voltage
Rated operational voltage Ue415 - 415 V
Type voltage supplyAC
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4000 V
Frequency
Frequency50 - 60 Hz
Safety
Ingress Protection (IP) classIP20
Use conditions
Degree of pollution according to IEC 60664 / IEC 60947-22
Class of energy limitation I^2t3
Air humidity protectionFor all climates
Operating temperature-25 - 70 DegC
Power
Total power loss under IN8 W
Connectivity
Type of connectionScrew terminal
Top connection alignment for modular devicesAligned terminal
Down connection alignment for modular devicesAligned terminal
Dimensions
Height83 mm
Width52,50 mm
Depth70 mm
Connection
Cross-section of input and output with screws, for massive conductors1 - 35 mm^2
Cross-section of input and output with screws, for flexible conductors1 - 25 mm^2
Cross-section of input with screws, for flexible conductors1 - 25 mm^2
Cross-section of input with screws, for massive conductors1 - 35 mm^2
SKU hagmcb31610k
Manfacturer Part Number NT316C
Barcode # 3250614807206
Brand Hager
