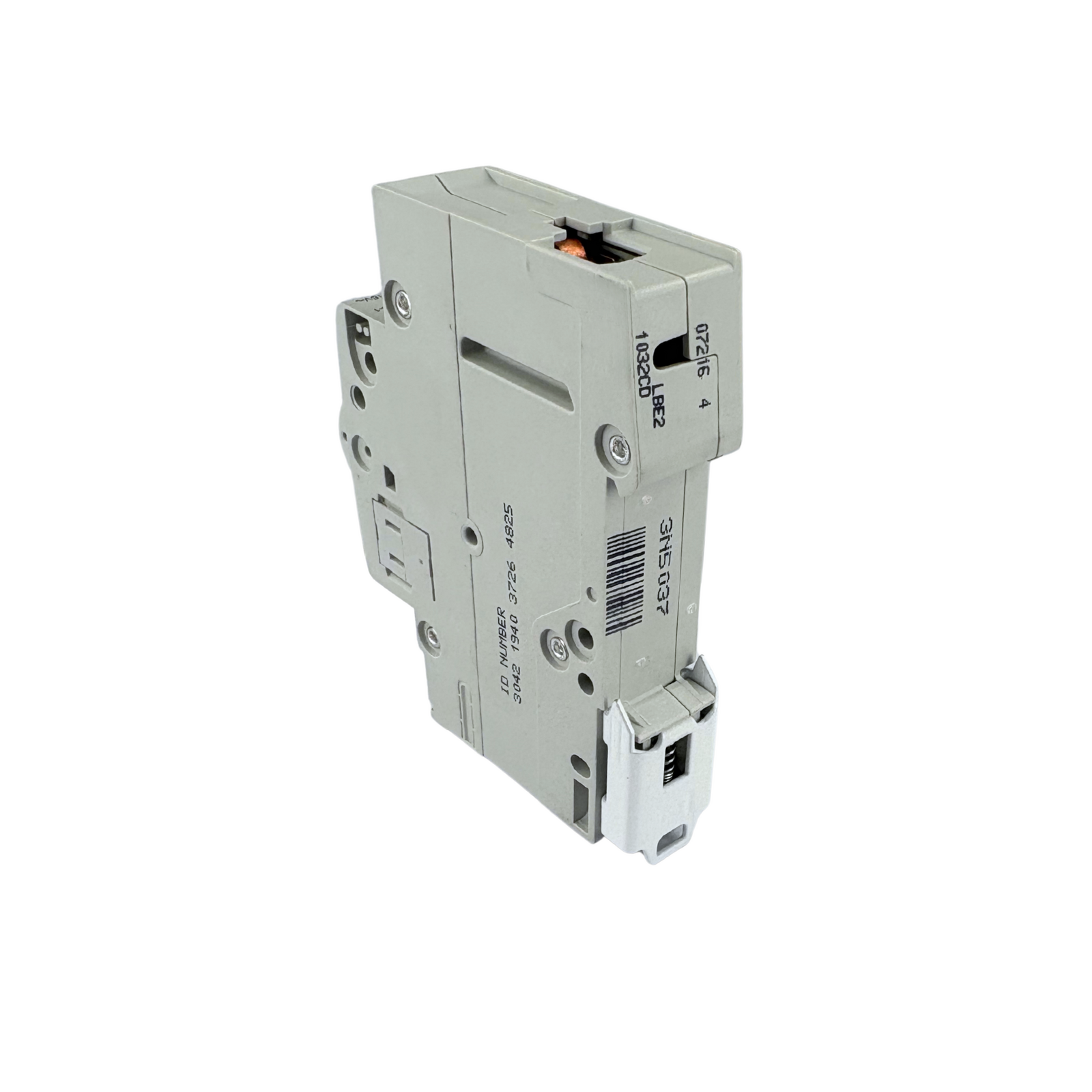

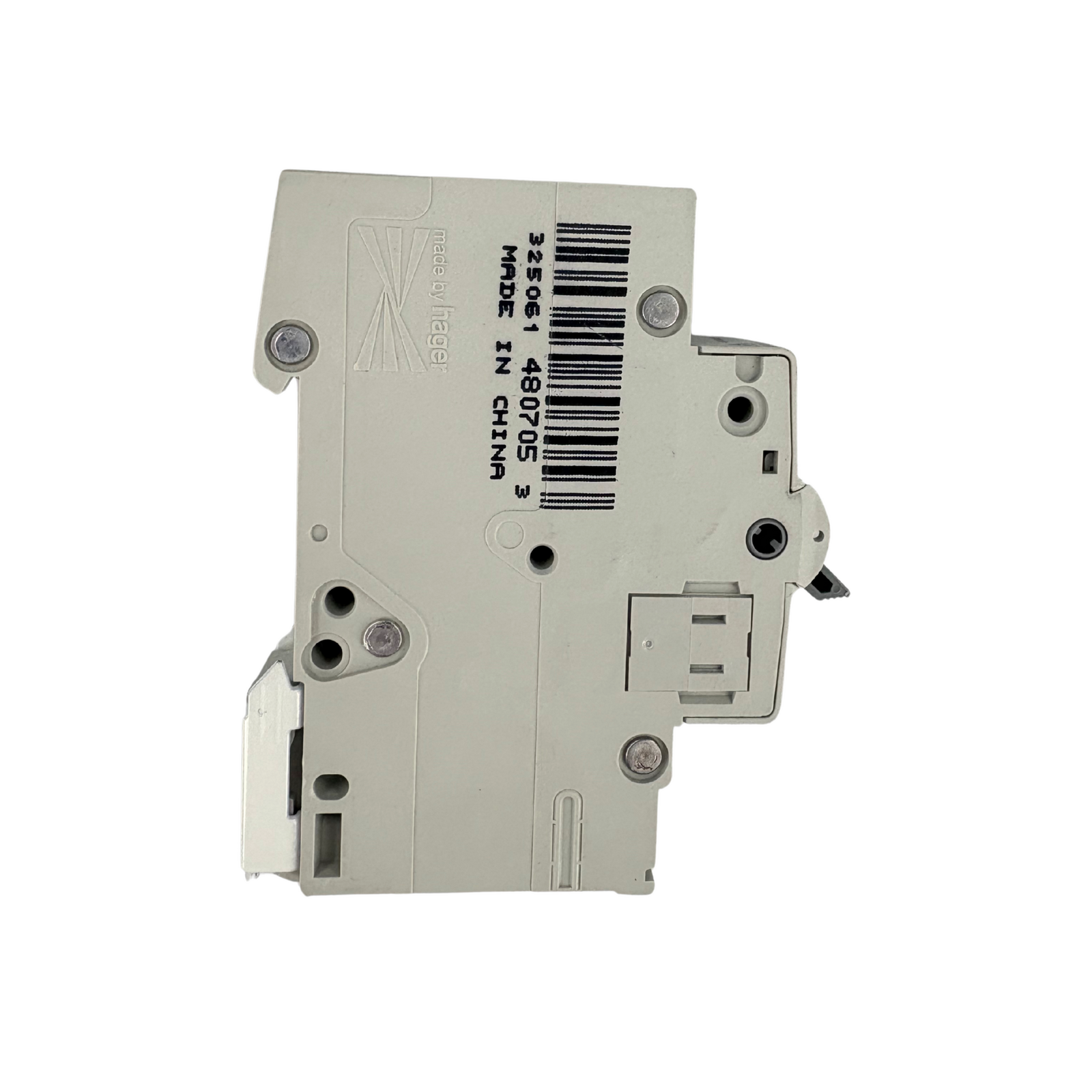

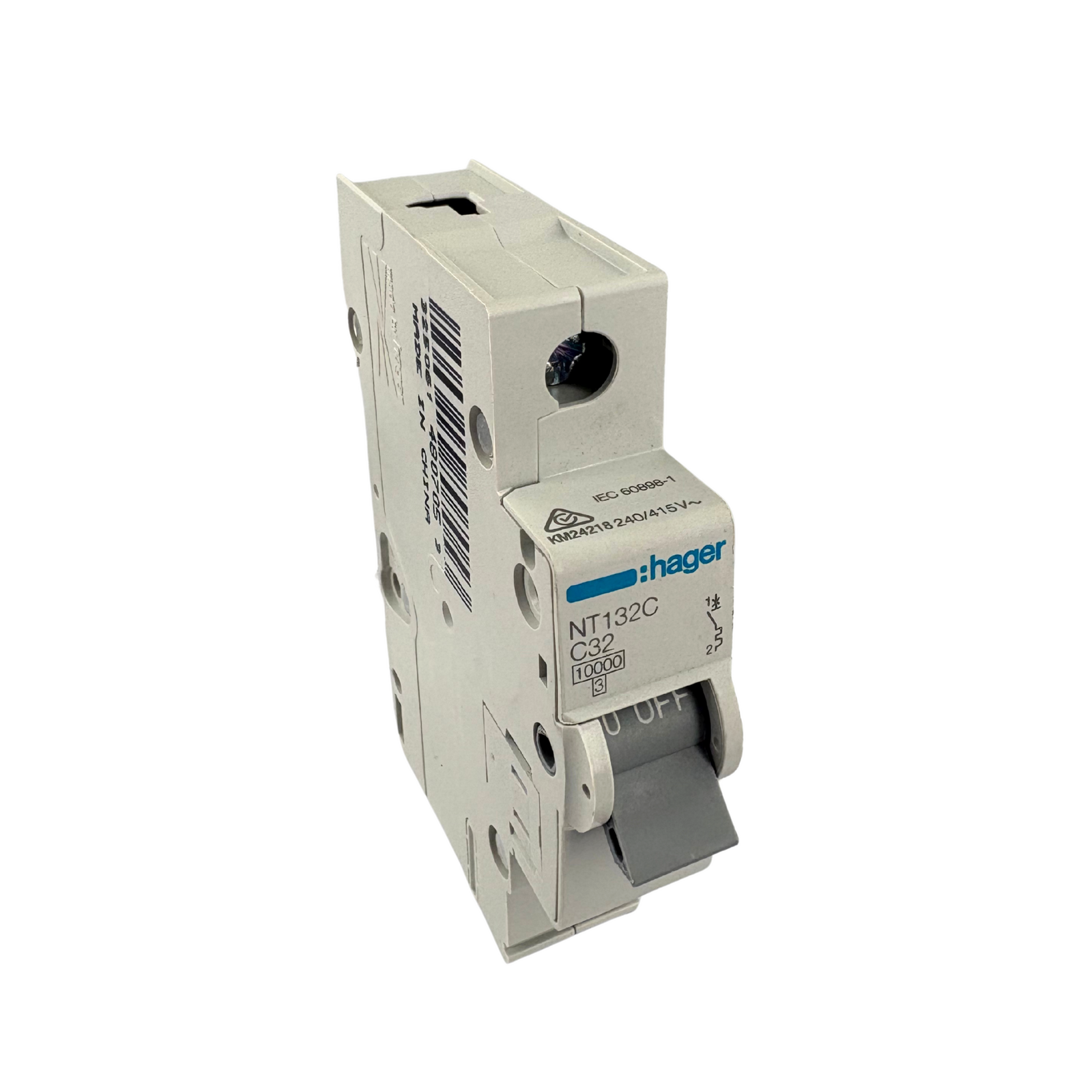

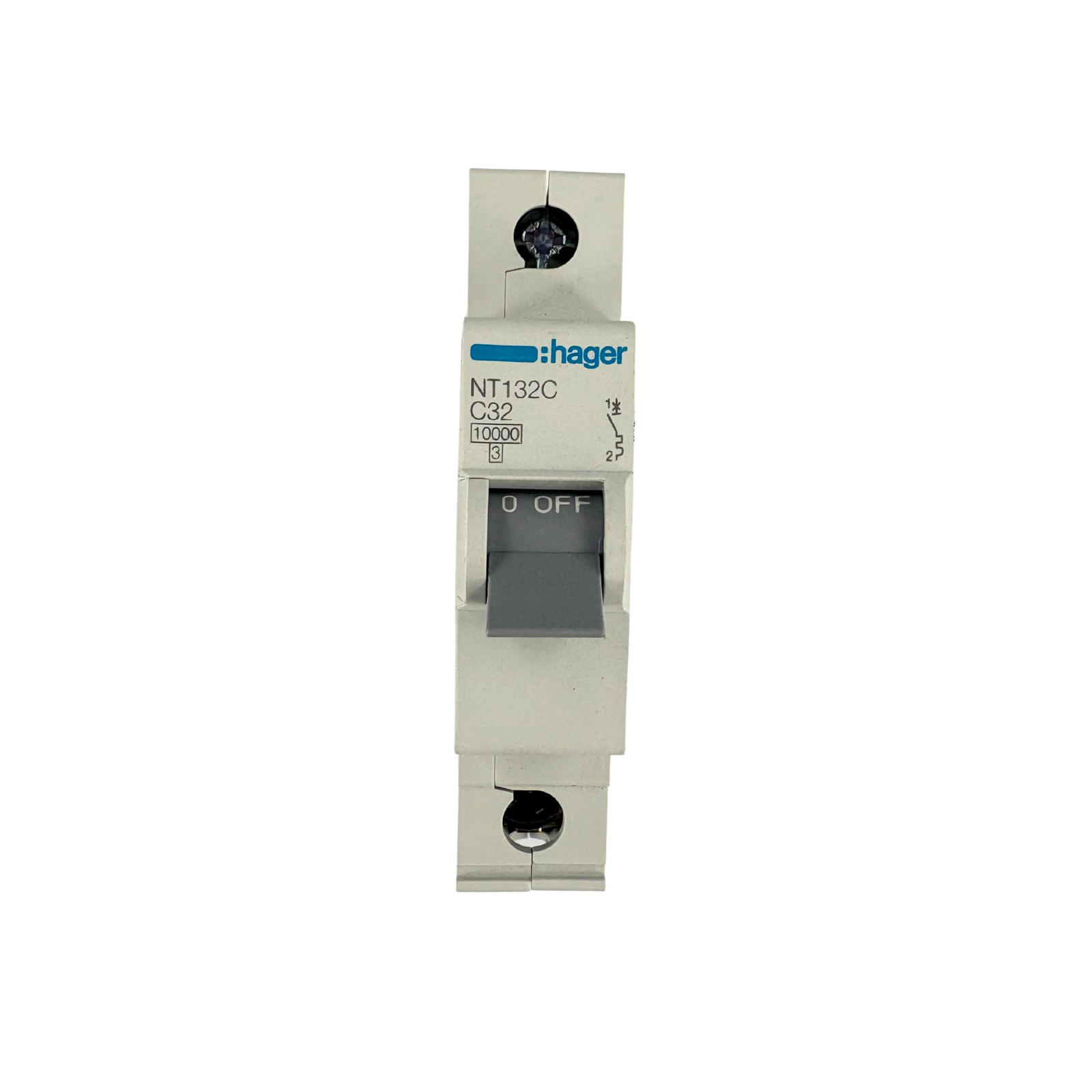

Hager NT132C 32 Amps 1 Pole MCB Circuit Breaker 10kA
SKU: hagmcb13210k
Product Image Gallery
Product Pricing
$12.81 (ex-GST)
$14.09 (inc-GST)
$14.09
$12.81
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ In Stock
Trusted premium Hager product - reliable and safe electrical solutions for professionals
Electrotraders USPs
Description
- Hager NT132C
- 1 Pole MCB 10kA
- 32 Amps
(hagmcb13210k)
Specifications
| Electric current | |
| Rated current | 32 A |
| Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1 | 10 kA |
| Architecture | |
| Type of pole | 1P |
| Curve | C |
| Capacity | |
| Number of modules | 1 |
| Installation, mounting | |
| Nominal tightening torque top terminal | 2,80 - 2,80 Nm |
| Nominal tightening torque down terminal | 2,80 - 2,80 Nm |
| Nominal tightening torque | 2,80 - 2,80 Nm |
| Type of bottom connection for modular devices | biconnect |
| Type of top connection for modular devices | Screw terminal |
| 360?ø mounting position possible | Yes |
| Main electrical attributes | |
| Rated short-circuit breaking capacity Icn AC according to IEC 60898-1 | 10 kA |
| Voltage | |
| Rated operational voltage Ue | 240 - 415 V |
| Type voltage supply | AC |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4000 V |
| Frequency | |
| Frequency | 50 - 60 Hz |
| Safety | |
| Ingress Protection (IP) class | IP20 |
| Use conditions | |
| Degree of pollution according to IEC 60664 / IEC 60947-2 | 2 |
| Class of energy limitation I^2t | 3 |
| Air humidity protection | For all climates |
| Operating temperature | -25 - 70 DegC |
| Power | |
| Total power loss under IN | 4,40 W |
| Connectivity | |
| Type of connection | Screw terminal |
| Top connection alignment for modular devices | Aligned terminal |
| Down connection alignment for modular devices | Aligned terminal |
| Dimensions | |
| Height | 83 mm |
| Width | 17,50 mm |
| Depth | 70 mm |
| Connection | |
| Cross-section of input and output with screws, for massive conductors | 1 - 35 mm^2 |
| Cross-section of input and output with screws, for flexible conductors | 1 - 25 mm^2 |
| Cross-section of input with screws, for flexible conductors | 1 - 25 mm^2 |
| Cross-section of input with screws, for massive conductors | 1 - 35 mm^2 |
| SKU | hagmcb13210k |
| Manfacturer Part Number | NT132C |
| Barcode # | 3250614807053 |
| Brand | Hager |
