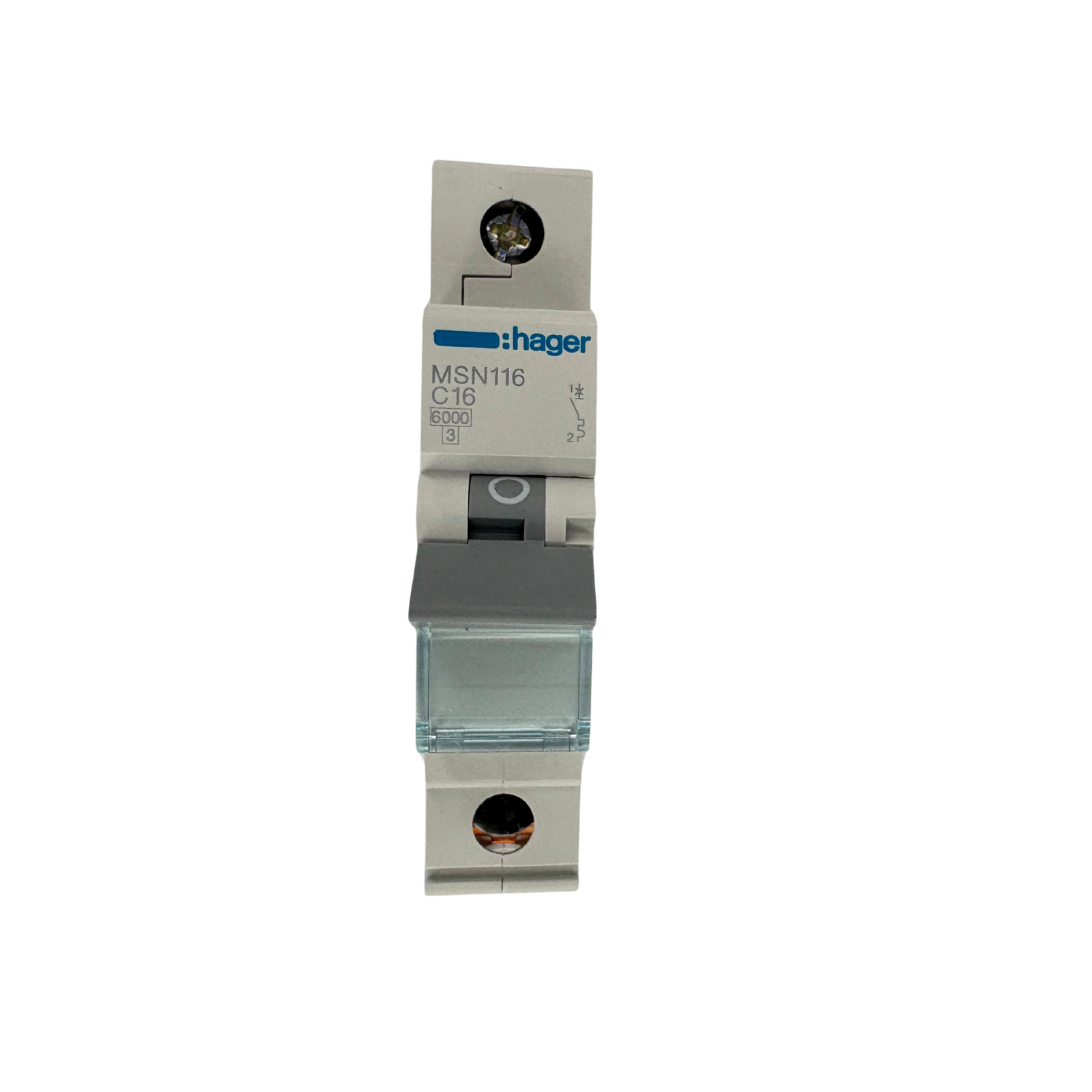

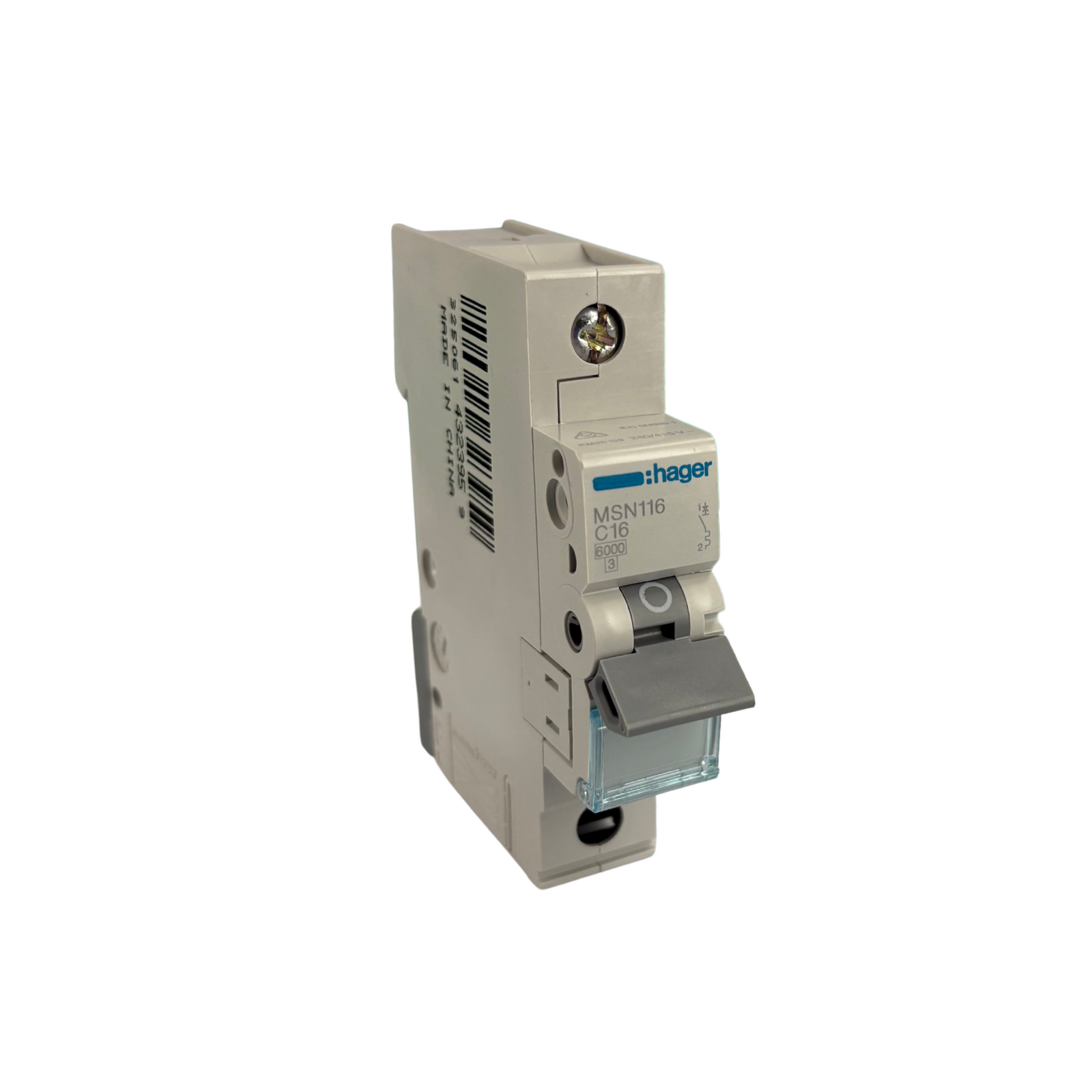

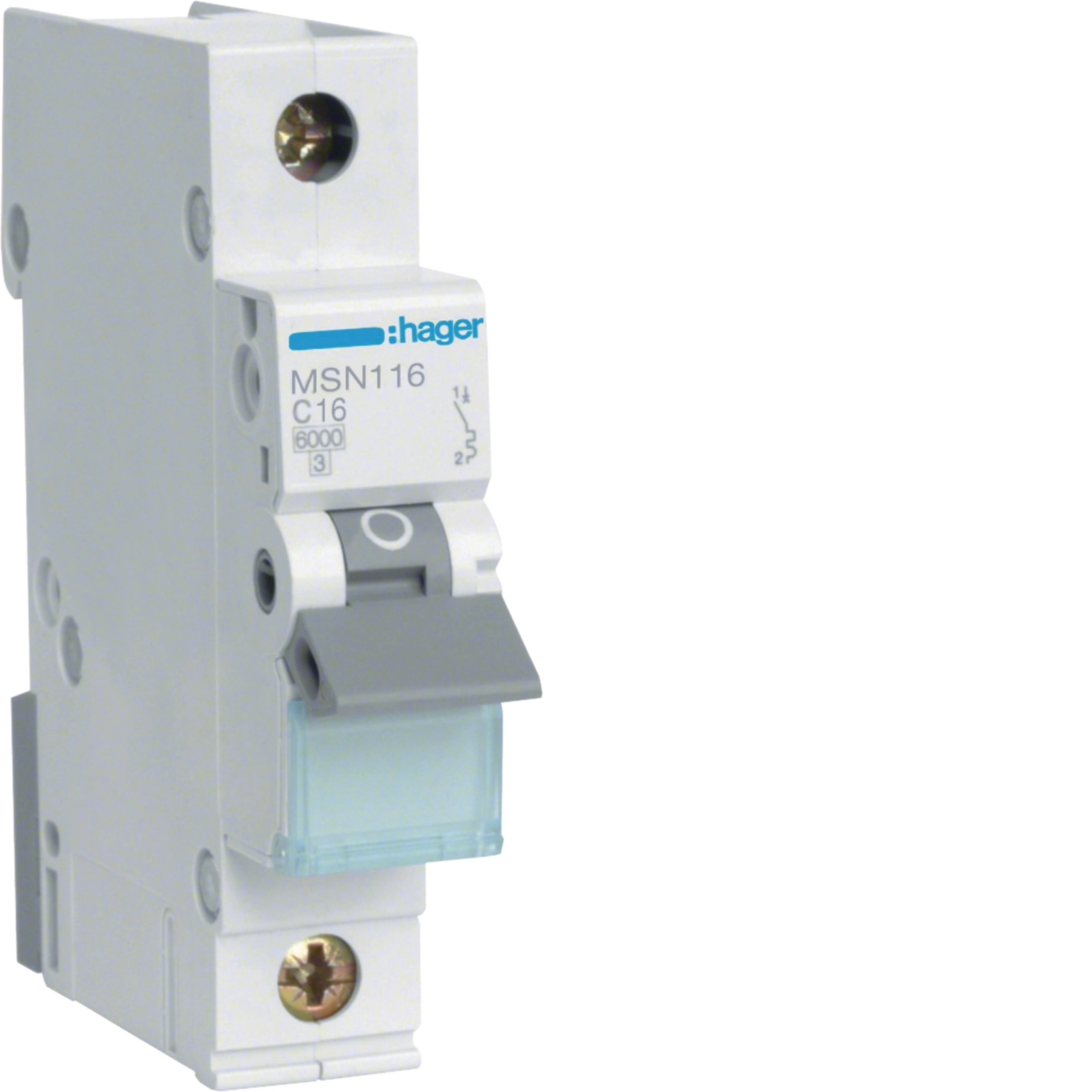

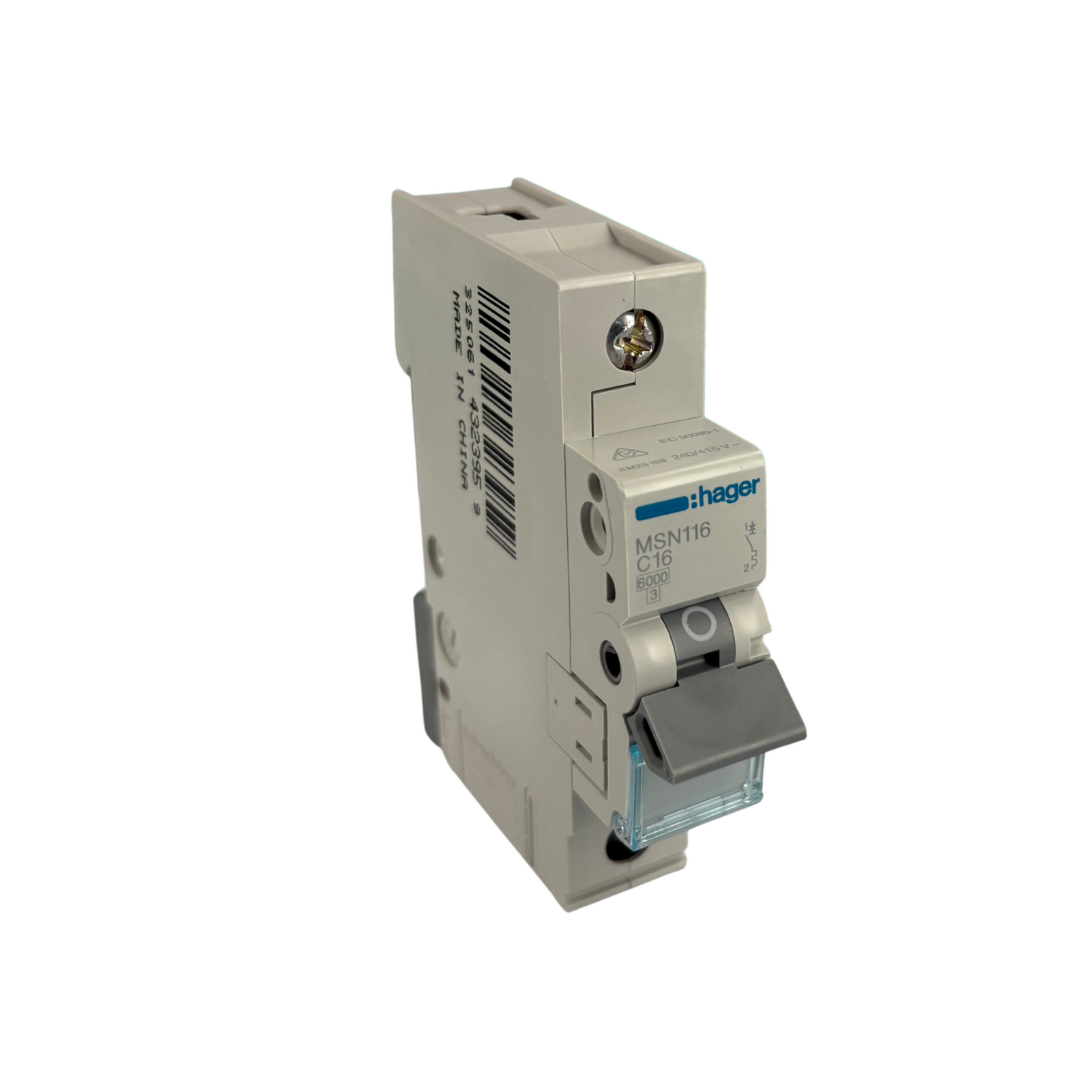

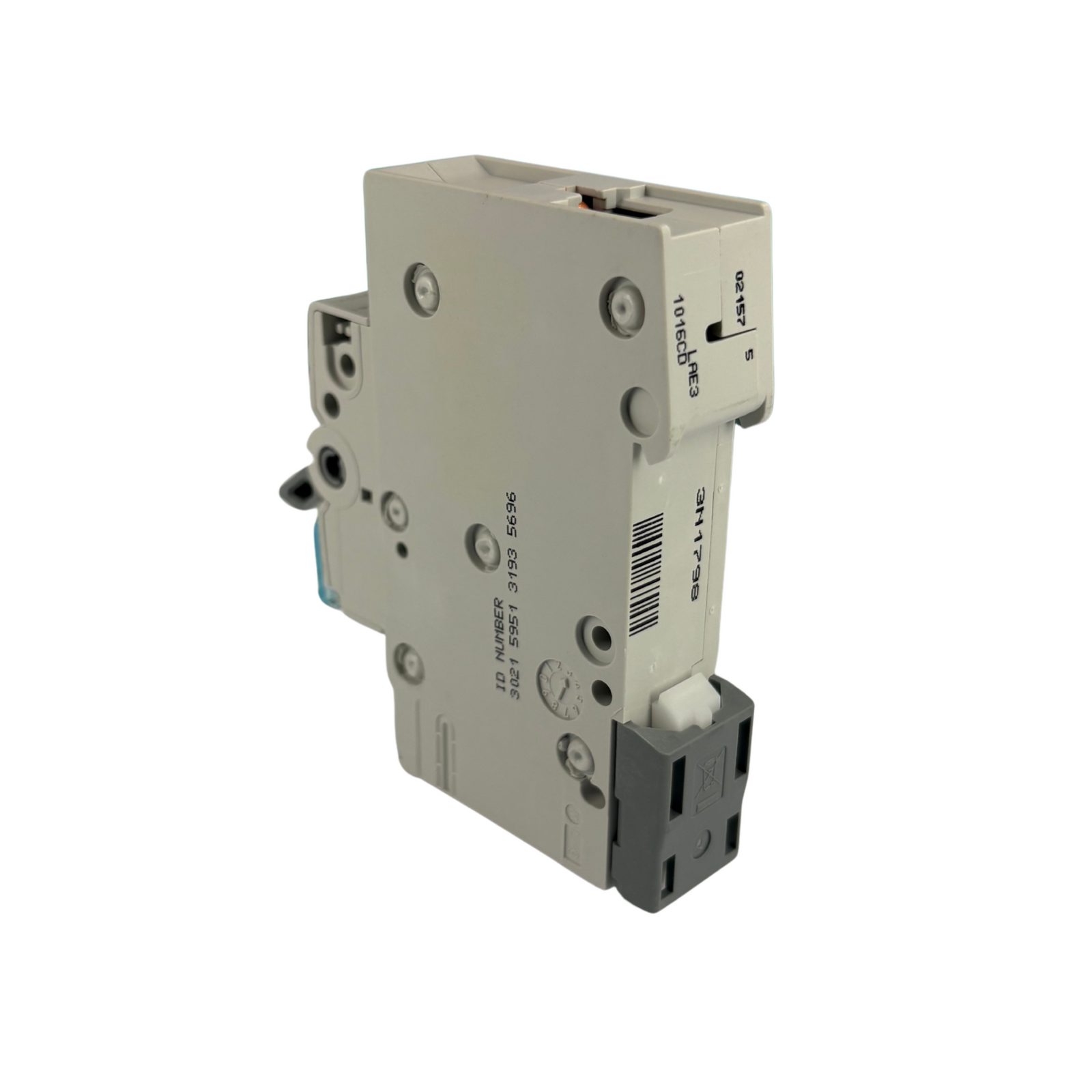

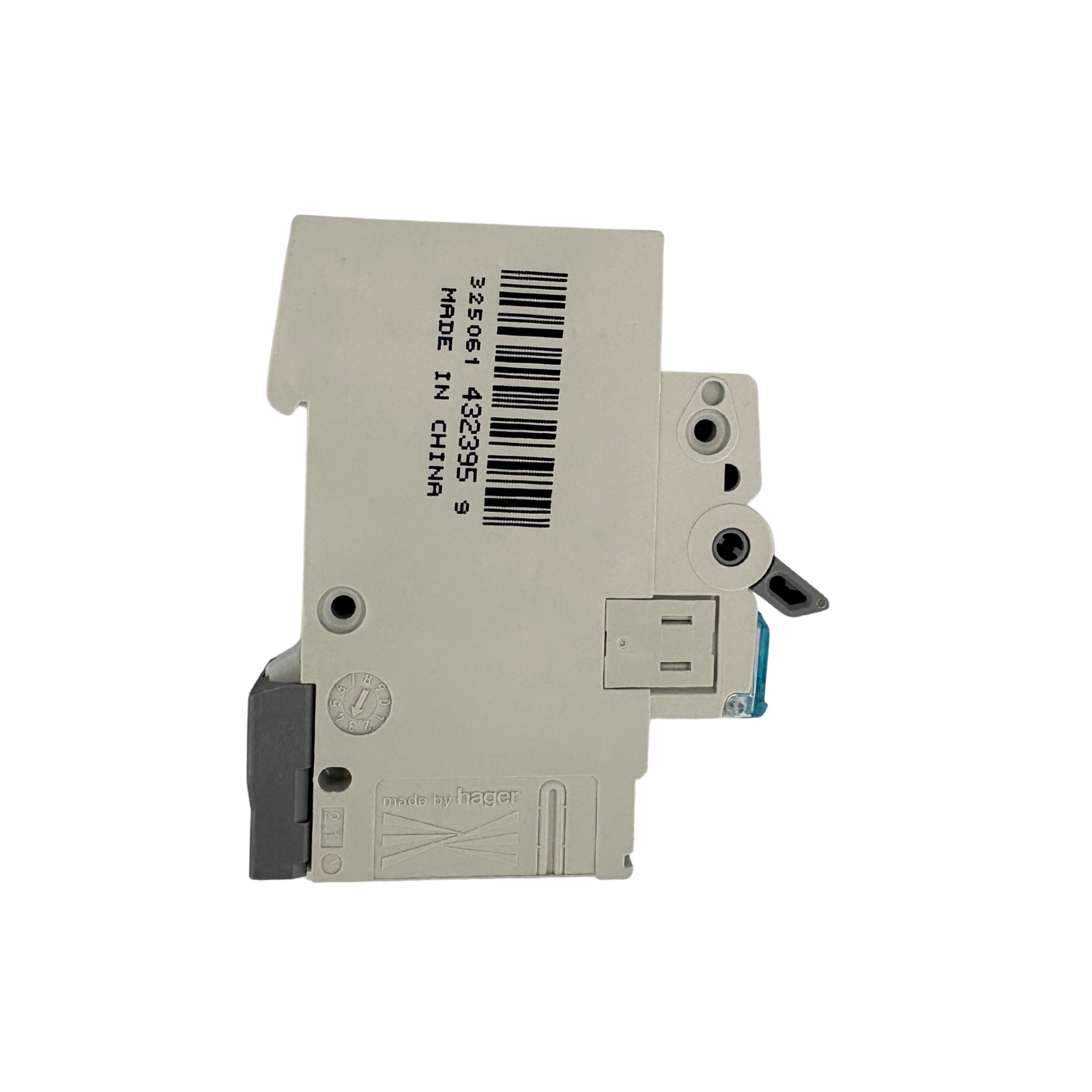

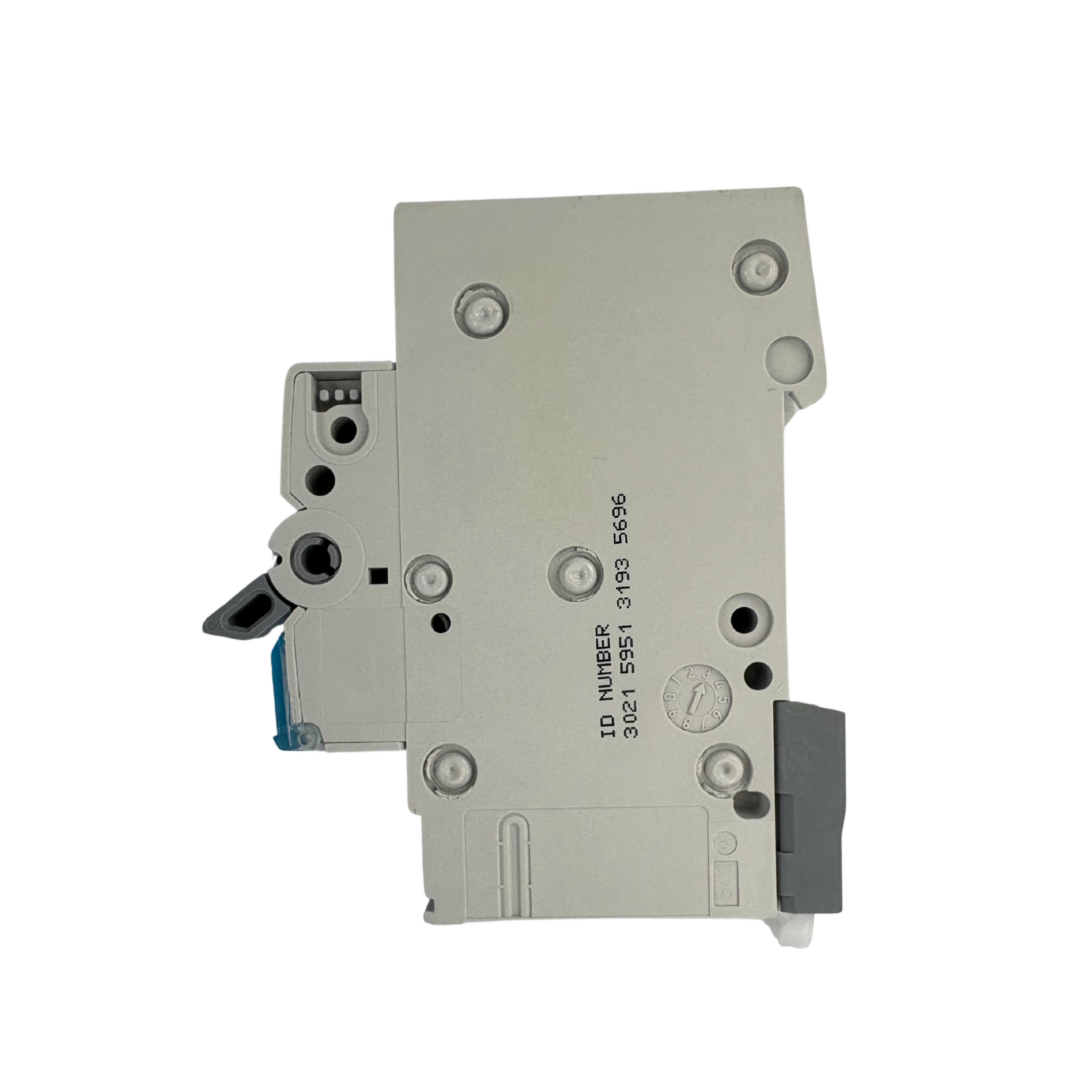

Hager MSN116 16 Amps 1 Pole MCB Circuit Breaker 6kA

SKU: hagmcb1166k

Product image thumbnail for SKU hagmcb1166k

Download Data Sheet

$5.19 (ex-GST)

$5.71 (inc-GST)

$5.71

$5.19

(inc-GST)

(ex-GST)

⚫︎ In Stock

Trusted premium Hager product - reliable and safe electrical solutions for professionals

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

Hager MSN116
1 Pole MCB 6kA
16 Amps

(hagmcb1166k)

Electric current
Rated current	16 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1	6 kA
Rated current -15DegC	21,3 A
Rated current -10DegC	20,8 A
Rated current -5DegC	20,2 A
Rated current at 0DegC	19,6 A
Rated current 5DegC	19 A
Rated current 10DegC	18,5 A
Rated current 15DegC	17,9 A
Rated current at 20DegC	17,3 A
Rated current 25DegC	16,8 A
Rated current 30DegC	16 A
Rated current 35DegC	15,6 A
Rated current at 40DegC	15 A
Rated current at 45DegC	14,5 A
Rated current at 50DegC	14 A
Rated current 55DegC	13,3 A
Rated current 60DegC	12,7 A
Rated current 65DegC	12,2 A
Rated current 70DegC	11,6 A
Architecture
Type of pole	1P
Curve	C
Capacity
Number of modules	1
Installation, mounting
Nominal tightening torque top terminal	2,80 - 2,80 Nm
Nominal tightening torque down terminal	2,80 - 2,80 Nm
Nominal tightening torque	2,80 - 2,80 Nm
Type of bottom connection for modular devices	biconnect
Type of top connection for modular devices	Screw terminal
360?ø mounting position possible	Yes
Main electrical attributes
Rated short-circuit breaking capacity Icn AC according to IEC 60898-1	6 kA
Voltage
Rated operational voltage Ue	240 - 415 V
Type voltage supply	AC
Rated insulation voltage Ui	500 V
Rated impulse withstand voltage Uimp	4000 V
Frequency
Frequency	50 - 60 Hz
Connection
Cross-section of input and output with screws, for massive conductors	1 - 35 mm^2
Cross-section of input and output with screws, for flexible conductors	1 - 25 mm^2
Cross-section of input with screws, for flexible conductors	1 - 25 mm^2
Cross-section of input with screws, for massive conductors	1 - 35 mm^2
Cross-section flexible conductor	1 - 25 mm^2
Cross-section rigid conductor	1 - 35 mm^2
Safety
Ingress Protection (IP) class	IP20
Use conditions
Degree of pollution according to IEC 60664 / IEC 60947-2	2
Class of energy limitation I^2t	3
Air humidity protection	For all climates
Operating temperature	-25 - 70 DegC
Power
Total power loss under IN	2,3 W
Connectivity
Type of connection	Screw terminal
Top connection alignment for modular devices	Aligned terminal
Down connection alignment for modular devices	Aligned terminal
Dimensions
Height	83 mm
Width	17,50 mm
Depth	70 mm
