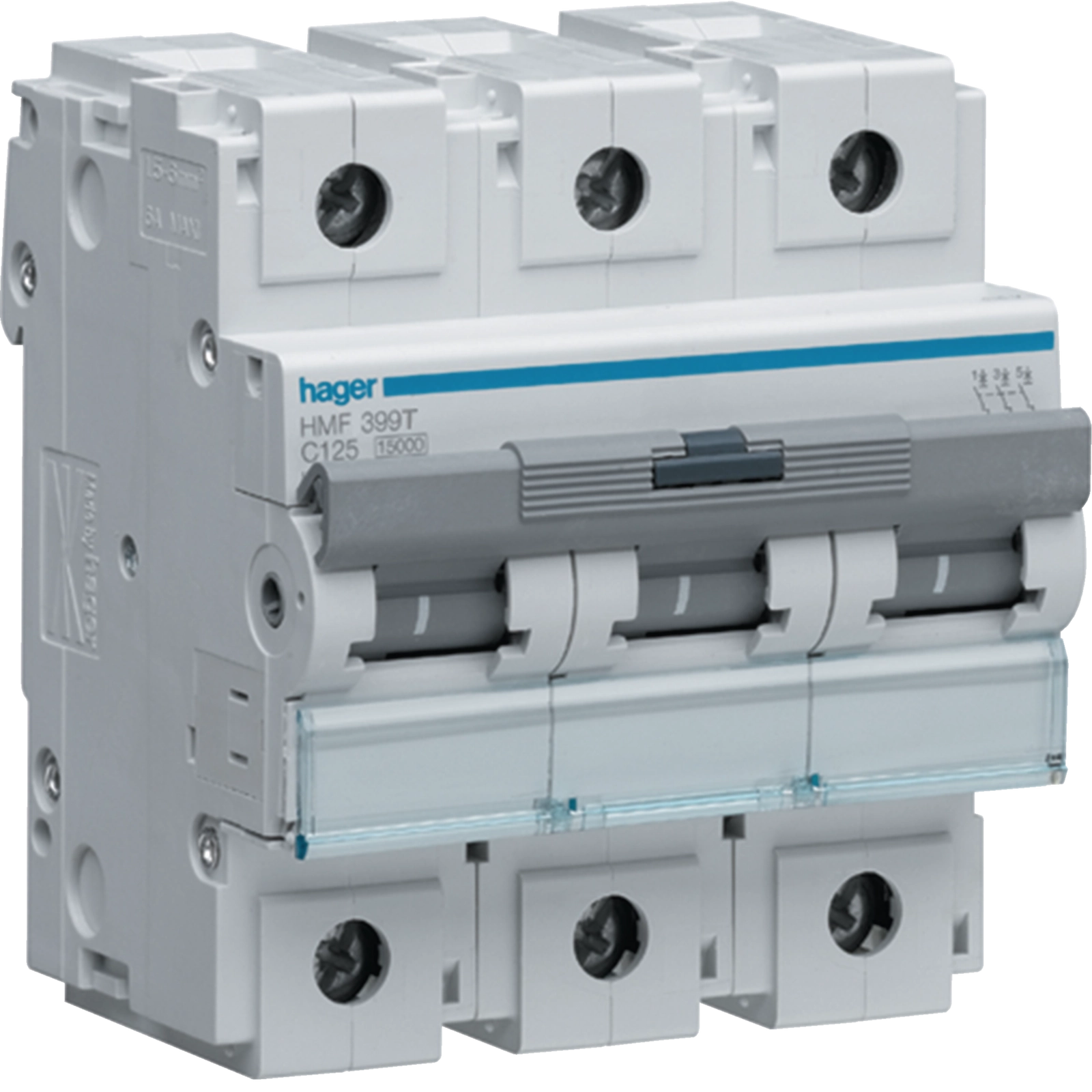

Hager HMF399T 125 Amps 3 Pole MCB Circuit Breaker 10kA
SKU: hagmcb312510k
Product Image Gallery
Product Pricing
$451.82 (ex-GST)
$497.00 (inc-GST)
$497.00
$451.82
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ Only 1 Left!
Trusted premium Hager product - reliable and safe electrical solutions for professionals
Electrotraders USPs
Description
- Hager HMF399T
- 3 Pole MCB 10kA
- 125 Amps
(hagmcb312510k)
Specifications
| Architecture | |
| Type of pole | 3P |
| Curve | C |
| Voltage | |
| Rated operational voltage Ue | 400 - 415 V |
| Type voltage supply | AC |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 6000 V |
| Frequency | |
| Frequency | 50 - 60 Hz |
| Electric current | |
| Rated current | 125 A |
| Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1 | 10 kA |
| Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2 | 10 kA |
| Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2 | 10 kA |
| Installation, mounting | |
| Nominal tightening torque | 3,5 - 5,0 Nm |
| Type of top connection for modular devices | Screw terminal |
| Type of bottom connection for modular devices | Screw terminal |
| Nominal tightening torque down terminal | 3,60 - 3,60 Nm |
| Nominal tightening torque top terminal | 3,60 - 3,60 Nm |
| Main electrical attributes | |
| Rated short-circuit breaking capacity Icn AC according to IEC 60898-1 | 10 kA |
| Power | |
| Total power loss under IN | 34,93 W |
| Endurance | |
| Electric endurance in number of cycles | 4000 |
| Number of mechanical operations | 20000 |
| Connection | |
| Cross-section of input and output with screws, for massive conductors | 1 - 70 mm^2 |
| Cross-section of input and output with screws, for flexible conductors | 1 - 50 mm^2 |
| Cross-section flexible conductor | 50 mm^2 |
| Cross-section rigid conductor | 70 mm^2 |
| Use conditions | |
| Degree of pollution according to IEC 60664 / IEC 60947-2 | 3 |
| Air humidity protection | For all climates |
| Operating temperature | -25 - 70 DegC |
| Capacity | |
| Number of modules | 4,50 |
| Connectivity | |
| Top connection alignment for modular devices | Aligned terminal |
| Down connection alignment for modular devices | Aligned terminal |
| Dimensions | |
| Height | 90 mm |
| Width | 80 mm |
| Depth | 70 mm |
| SKU | hagmcb312510k |
| Manfacturer Part Number | HMF399T |
| Barcode # | 3250613231170 |
| Brand | Hager |
