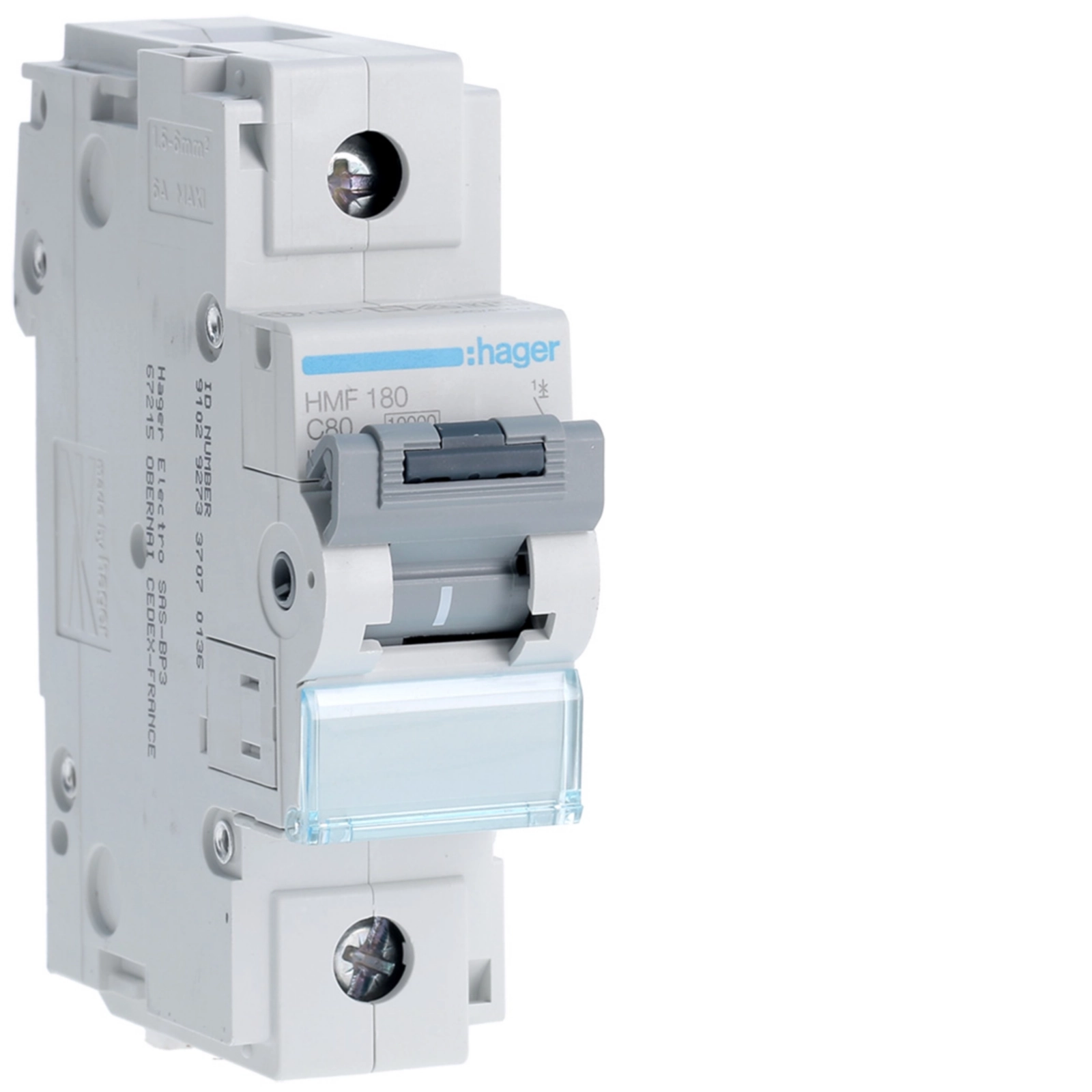

Hager HMF180T 80 Amps 1 Pole MCB Circuit Breaker 10kA

SKU: hagmcb18010k

Product Image Gallery

Product image thumbnail for SKU hagmcb18010k

Product Pricing

$124.37 (ex-GST)

$136.81 (inc-GST)

$136.81

$124.37

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ In Stock

Trusted premium Hager product - reliable and safe electrical solutions for professionals

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200


Description

  • Hager HMF180T
  • 1 Pole MCB 10kA
  • 80 Amps

(hagmcb18010k)

Specifications

Architecture
Type of pole1P
CurveC
Voltage
Rated operational voltage Ue230 - 415 V
Type voltage supplyAC
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6000 V
Frequency
Frequency50 - 60 Hz
Electric current
Rated current80 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-110 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-210 kA
Installation, mounting
Nominal tightening torque3,5 - 5,0 Nm
Type of top connection for modular devicesScrew terminal
Type of bottom connection for modular devicesScrew terminal
Nominal tightening torque down terminal3,60 - 3,60 Nm
Nominal tightening torque top terminal3,60 - 3,60 Nm
Main electrical attributes
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
Power
Total power loss under IN6,18 W
Endurance
Electric endurance in number of cycles4000
Number of mechanical operations20000
Connection
Cross-section of input and output with screws, for massive conductors1 - 70 mm^2
Cross-section of input and output with screws, for flexible conductors1 - 50 mm^2
Cross-section flexible conductor50 mm^2
Cross-section rigid conductor70 mm^2
Use conditions
Degree of pollution according to IEC 60664 / IEC 60947-23
Air humidity protectionFor all climates
Operating temperature-25 - 70 DegC
Capacity
Number of modules1,50
Connectivity
Top connection alignment for modular devicesAligned terminal
Down connection alignment for modular devicesAligned terminal
Dimensions
Height90 mm
Width27 mm
Depth70 mm
SKU hagmcb18010k
Manfacturer Part Number HMF180T
Barcode # 3250613231095
Brand Hager
