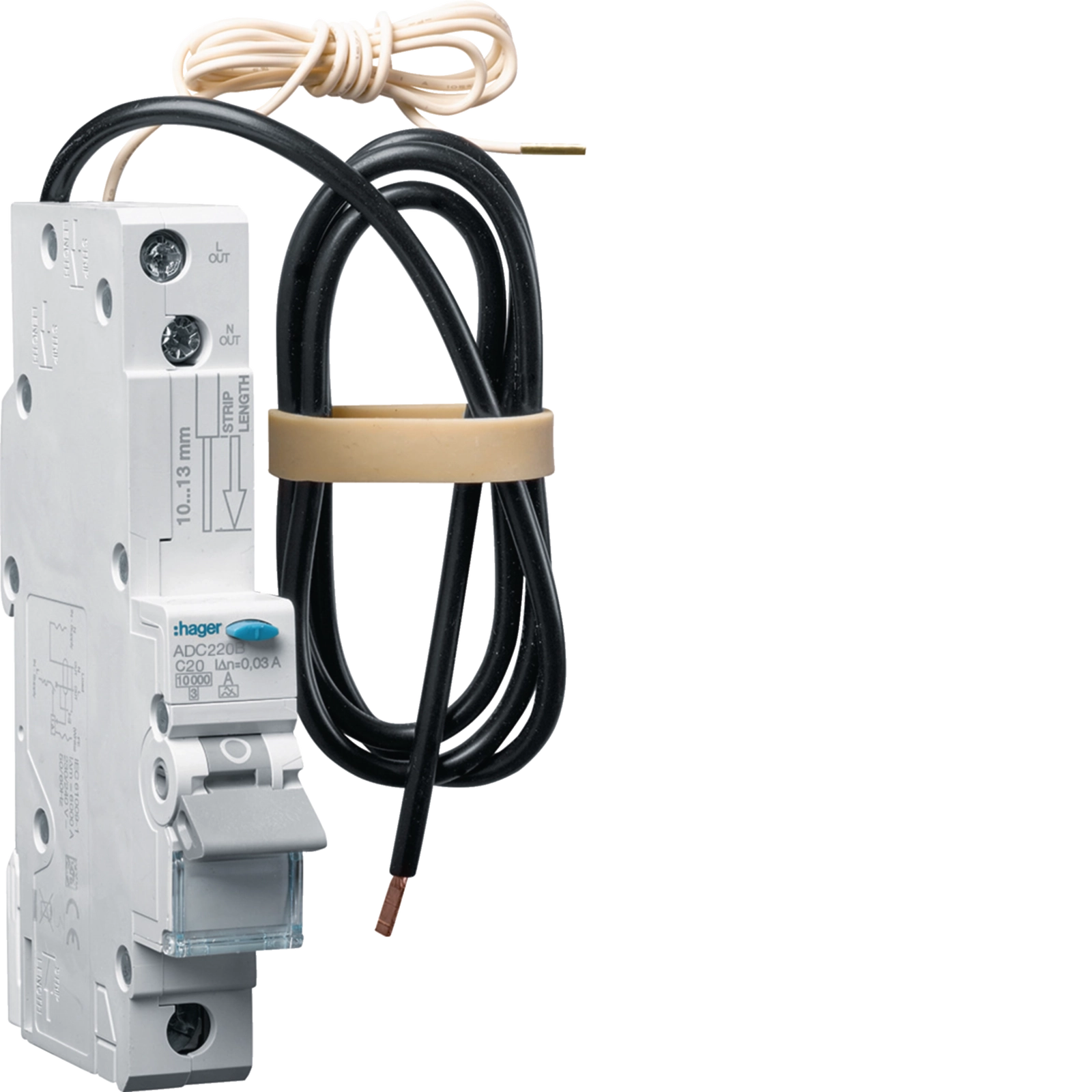

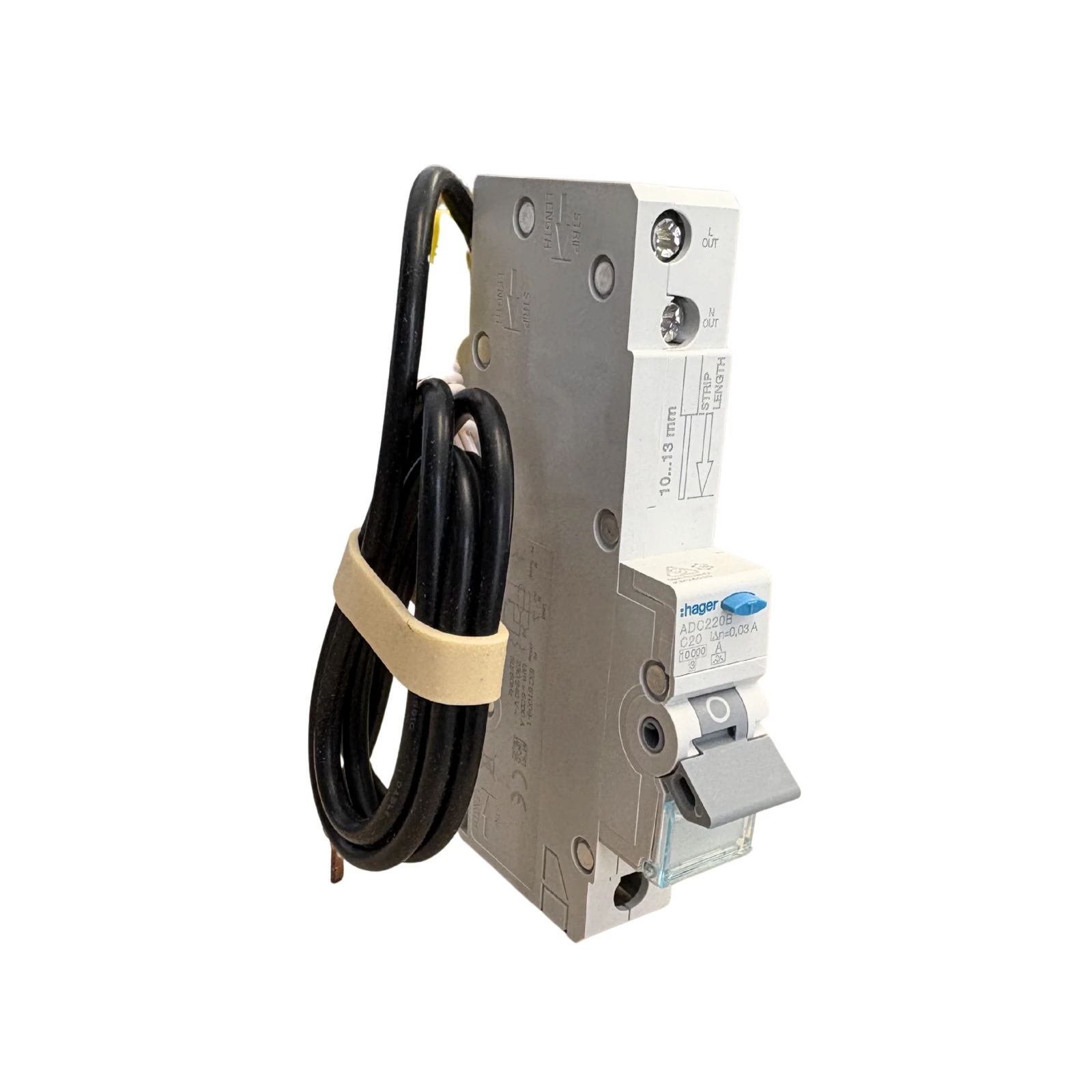

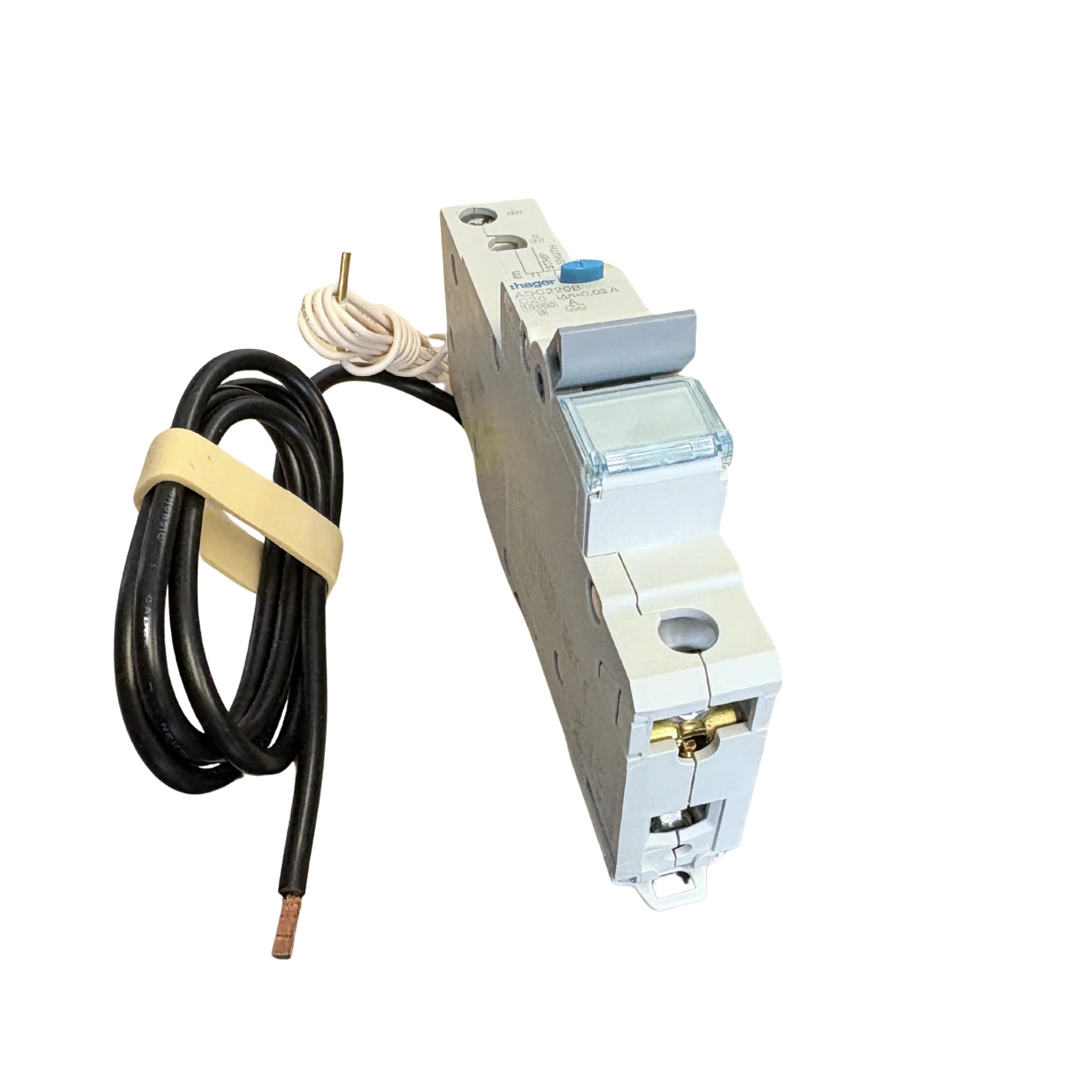

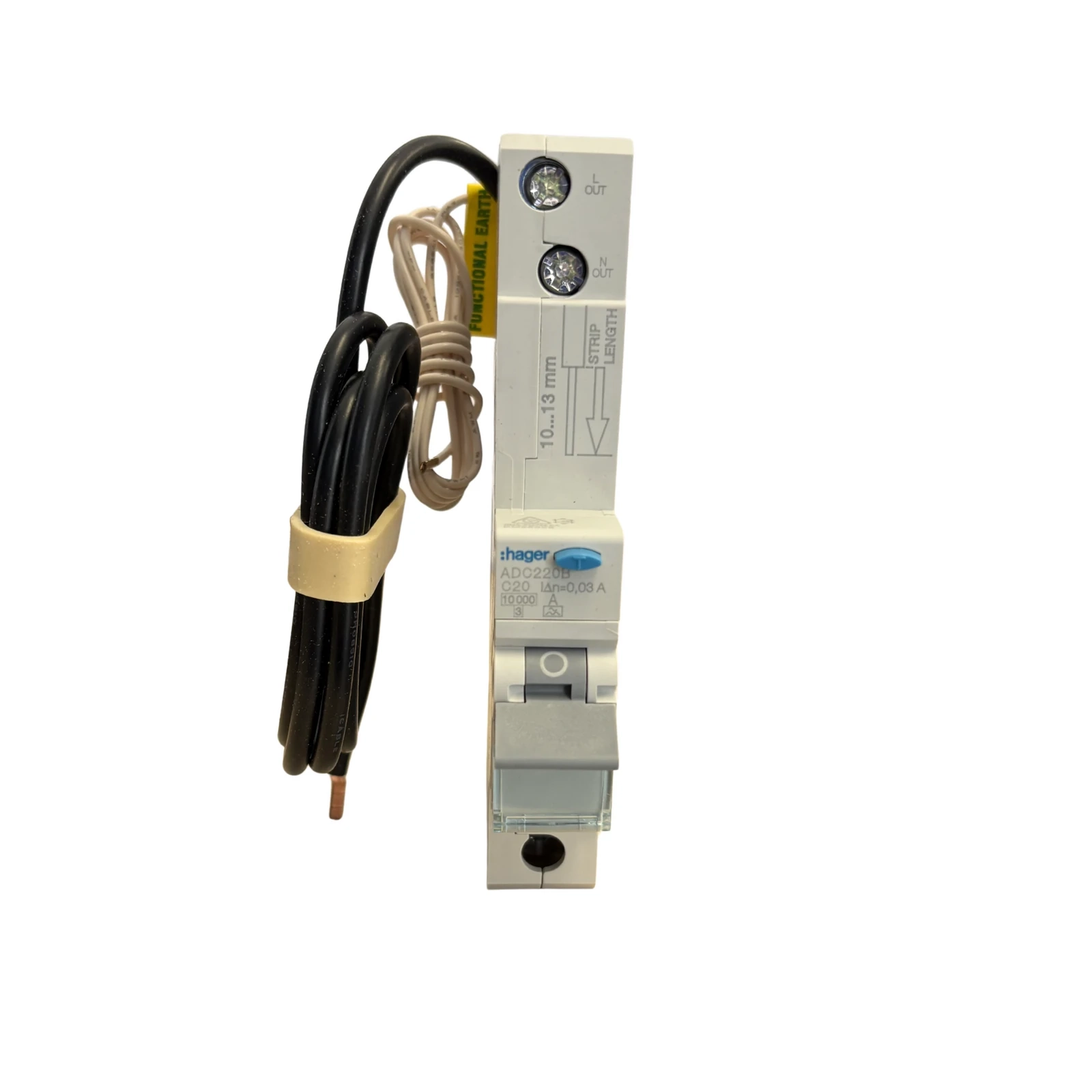

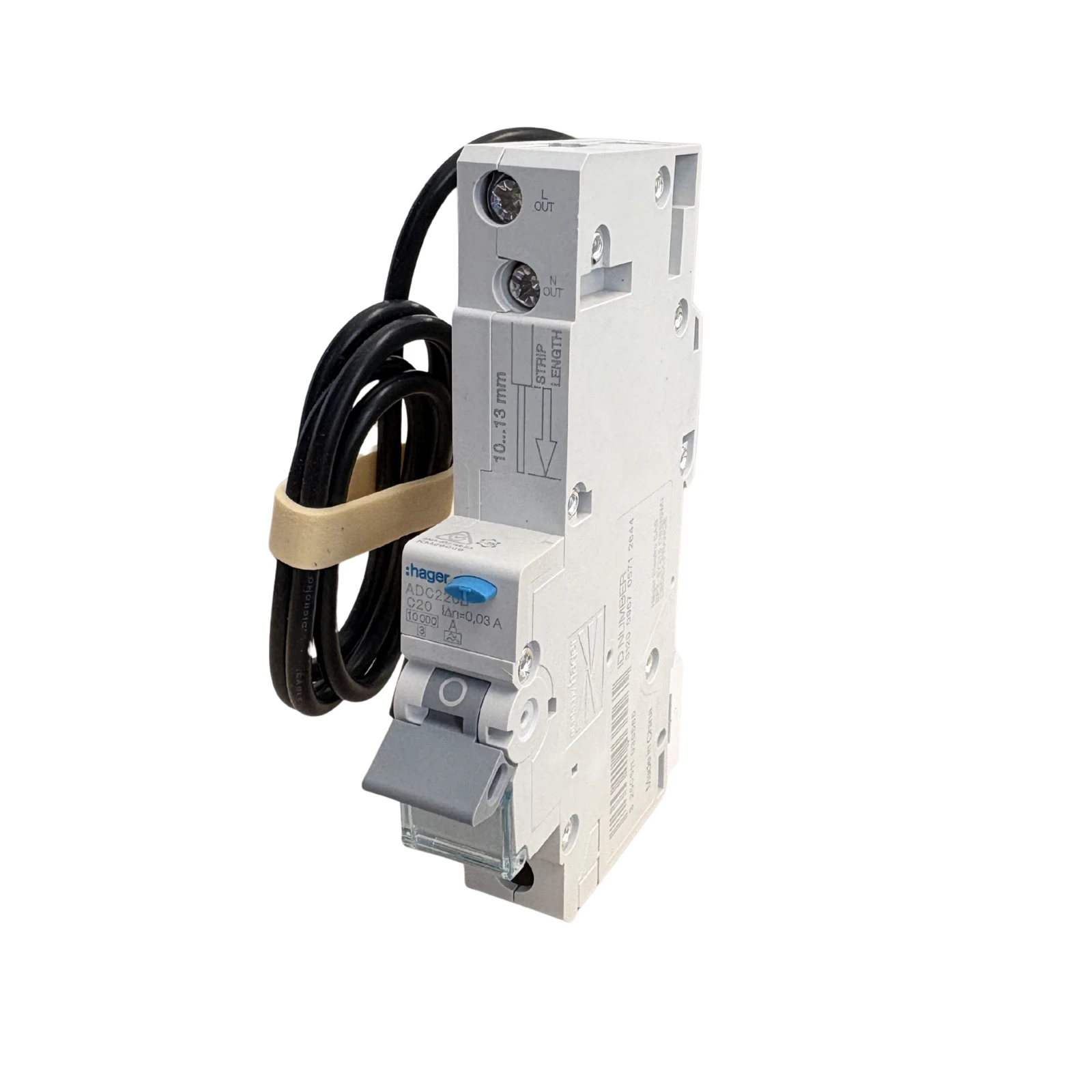

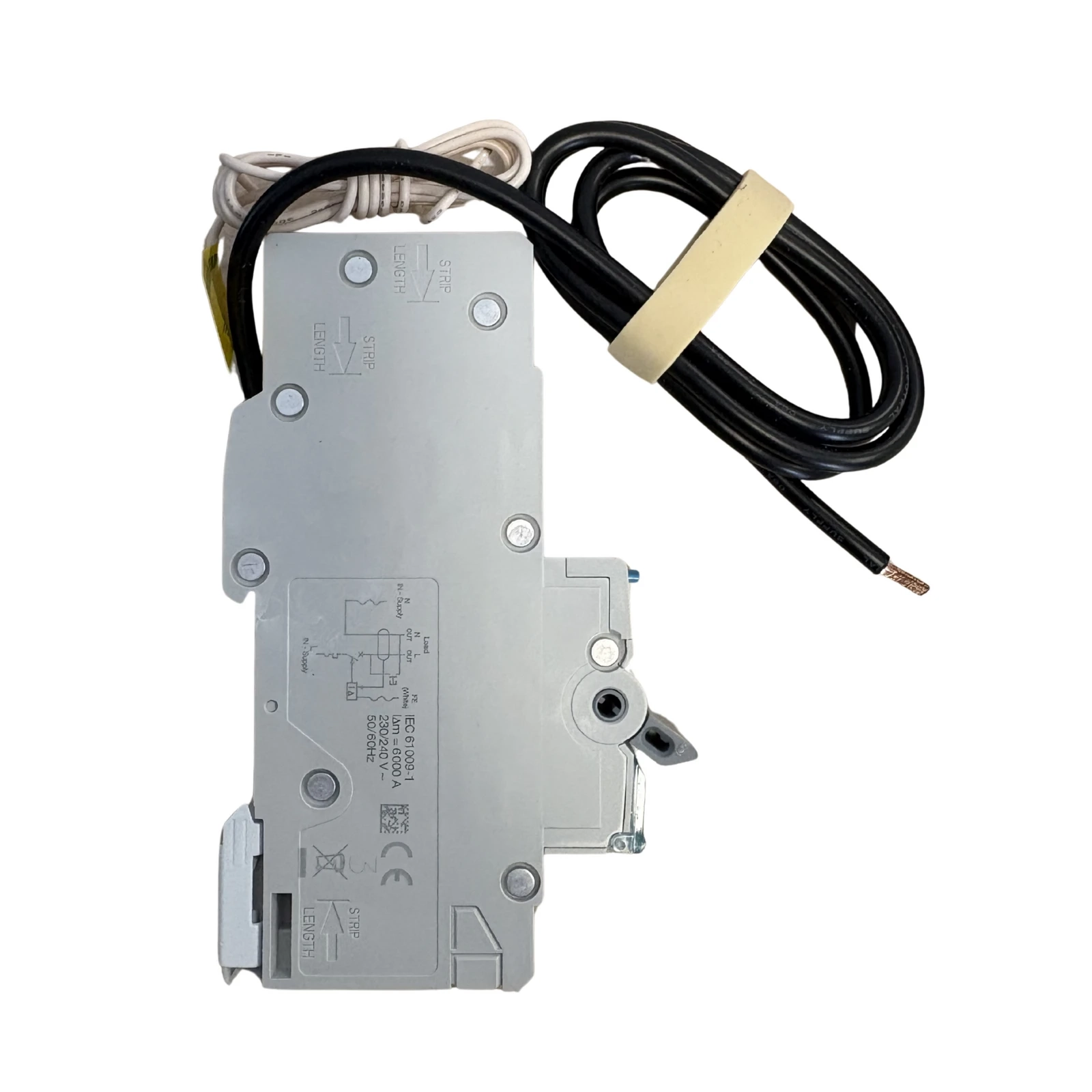

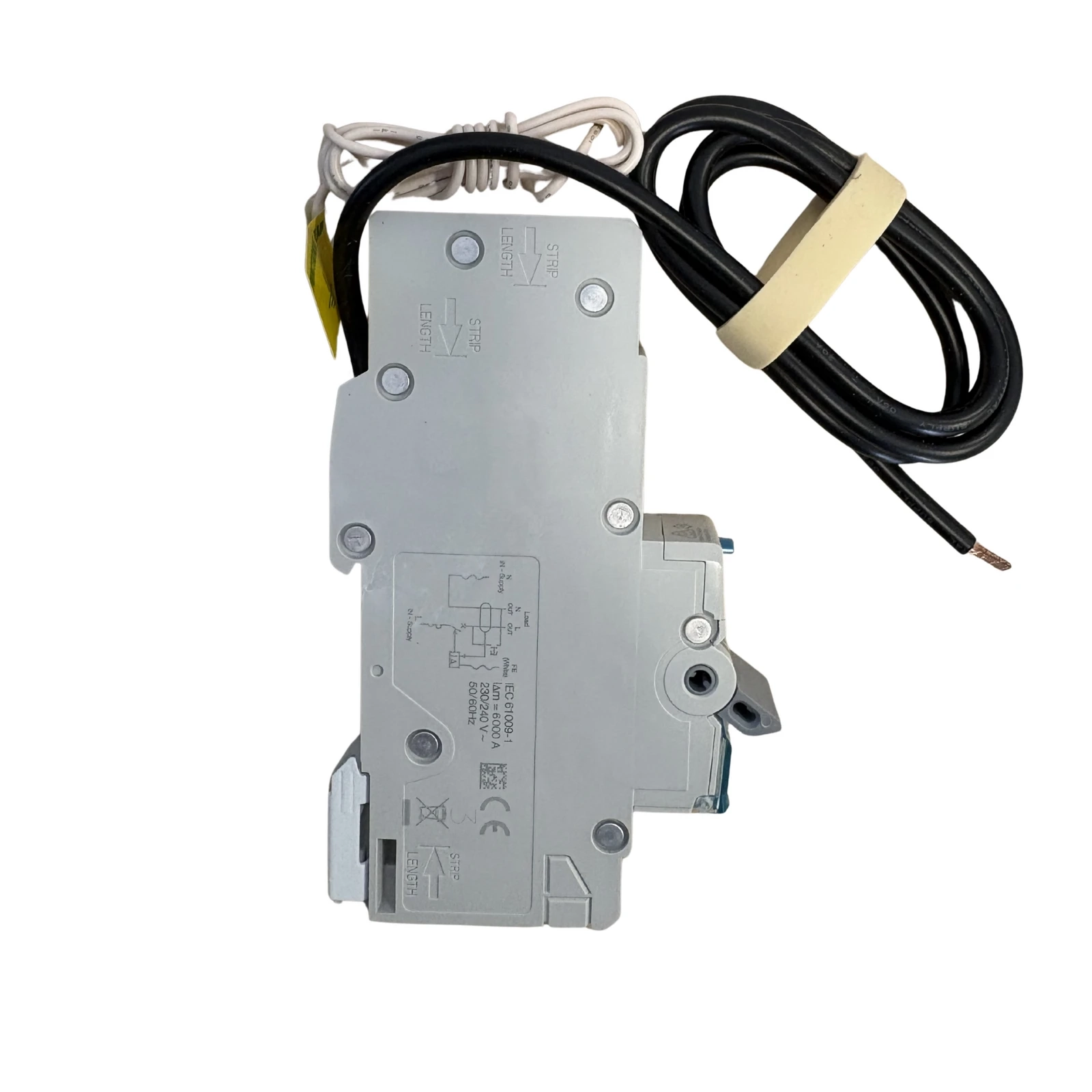

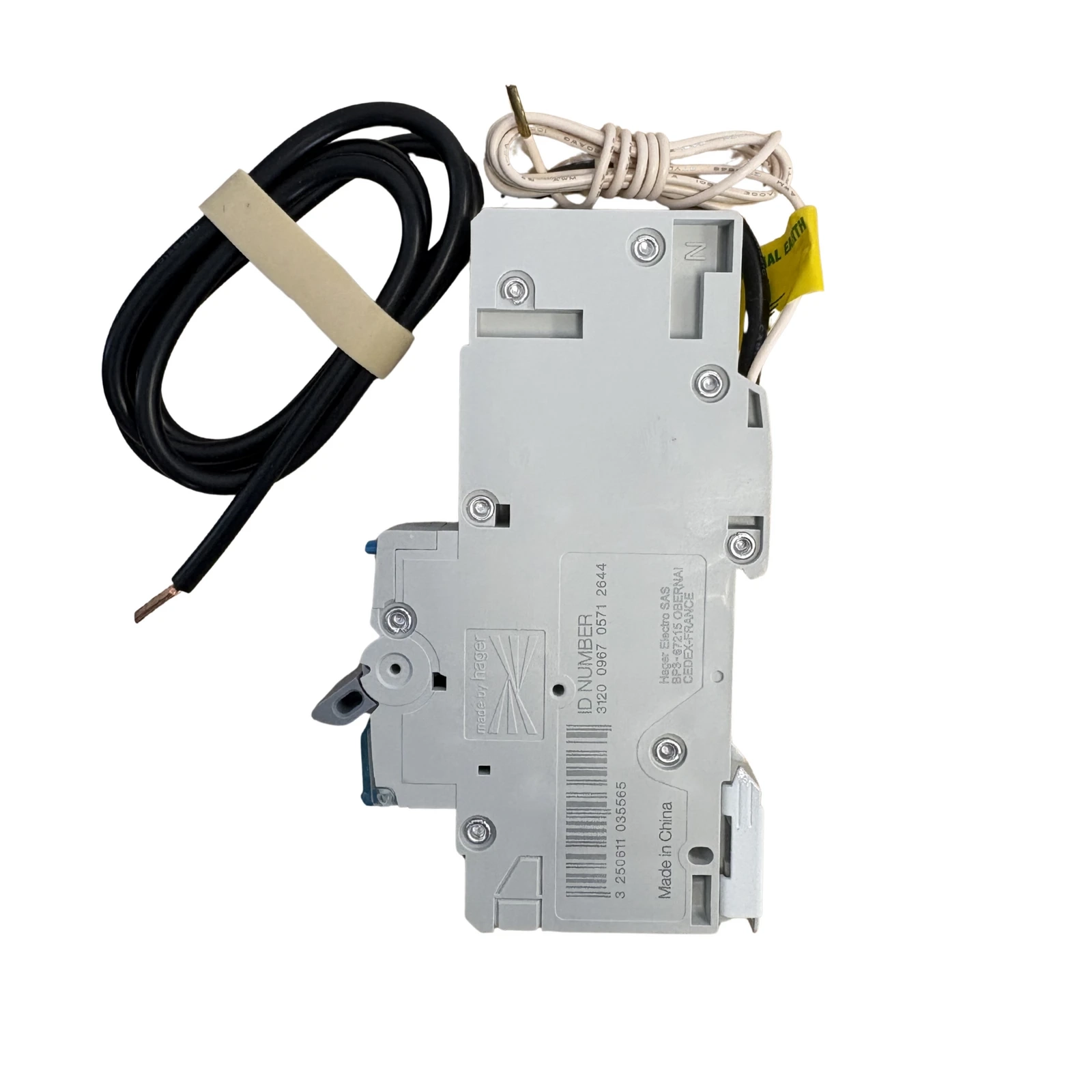

Hager ADC220B 20 Amps 1 Pole RCBO Safety Switch 10kA

SKU: hagrcb12010k

Product image thumbnail for SKU hagrcb12010k

Download Data Sheet

$107.06 (ex-GST)

$117.77 (inc-GST)

$117.77

$107.06

(inc-GST)

(ex-GST)

⚫︎ Ships in 24 hours

Trusted premium Hager product - reliable and safe electrical solutions for professionals

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

Hager ADC220B
1 Pole RCBO 10kA
20 Amps

(hagrcb12010k)

Architecture
Type of pole	1P
Curve	C
Electric current
Rated current	20 A
Rated residual operating current Idn	30 mA
Rated current -25DegC	25,09 A
Rated current at -20DegC	24,63 A
Rated current -15DegC	24,16 A
Rated current -10DegC	23,70 A
Rated current -5DegC	23,24 A
Rated current at 0DegC	22,78 A
Rated current 5DegC	22,31 A
Rated current 10DegC	21,85 A
Rated current 15DegC	21,39 A
Rated current at 20DegC	20,93 A
Rated current 25DegC	20,46 A
Rated current 30DegC	20 A
Rated current 35DegC	19,53 A
Rated current at 40DegC	19,05 A
Rated current at 50DegC	18,10 A
Rated current 55DegC	17,63 A
Rated current 60DegC	17,15 A
Min./max. threshold value of the AC thermal operation	1,13 - 1,45 A
Safety
Residual current type	A
Ingress Protection (IP) class	IP20
Main electrical attributes
Rated short-circuit breaking capacity Icn AC according to IEC 60898-1	10 kA
Voltage
Rated insulation voltage Ui	250 V
Rated impulse withstand voltage Uimp	4000 V
Rated operational voltage Ue	230 - 240 V
Overvoltage category according to IEC 60947-1	3
Power
Total power loss under IN	6,50 W
Frequency
Frequency	50 - 60 Hz
Use conditions
Max. Altitude	2000 m
Class of energy limitation I^2t	3
Operating temperature	-5 - 40 DegC
Storage/transport temperature	-40 - 70 DegC
Endurance
Electric endurance in number of cycles	2000
Number of mechanical operations	10000
Connection
Cross-section of input with screws, for flexible conductors	1 - 10 mm^2
Cross-section of input with screws, for massive conductors	1 - 16 mm^2
Cross-section of input and output with screws, for flexible conductors	1 - 16 mm^2
Cross-section of input and output with screws, for massive conductors	1 - 25 mm^2
Installation, mounting
Type of top connection for modular devices	Screw terminal
Type of bottom connection for modular devices	biconnect
Capacity
Number of modules	1
Dimensions
Height	115 mm
Width	17,80 mm
Depth	70 mm
Compatibility
Suitable for DIN Rail	Yes
