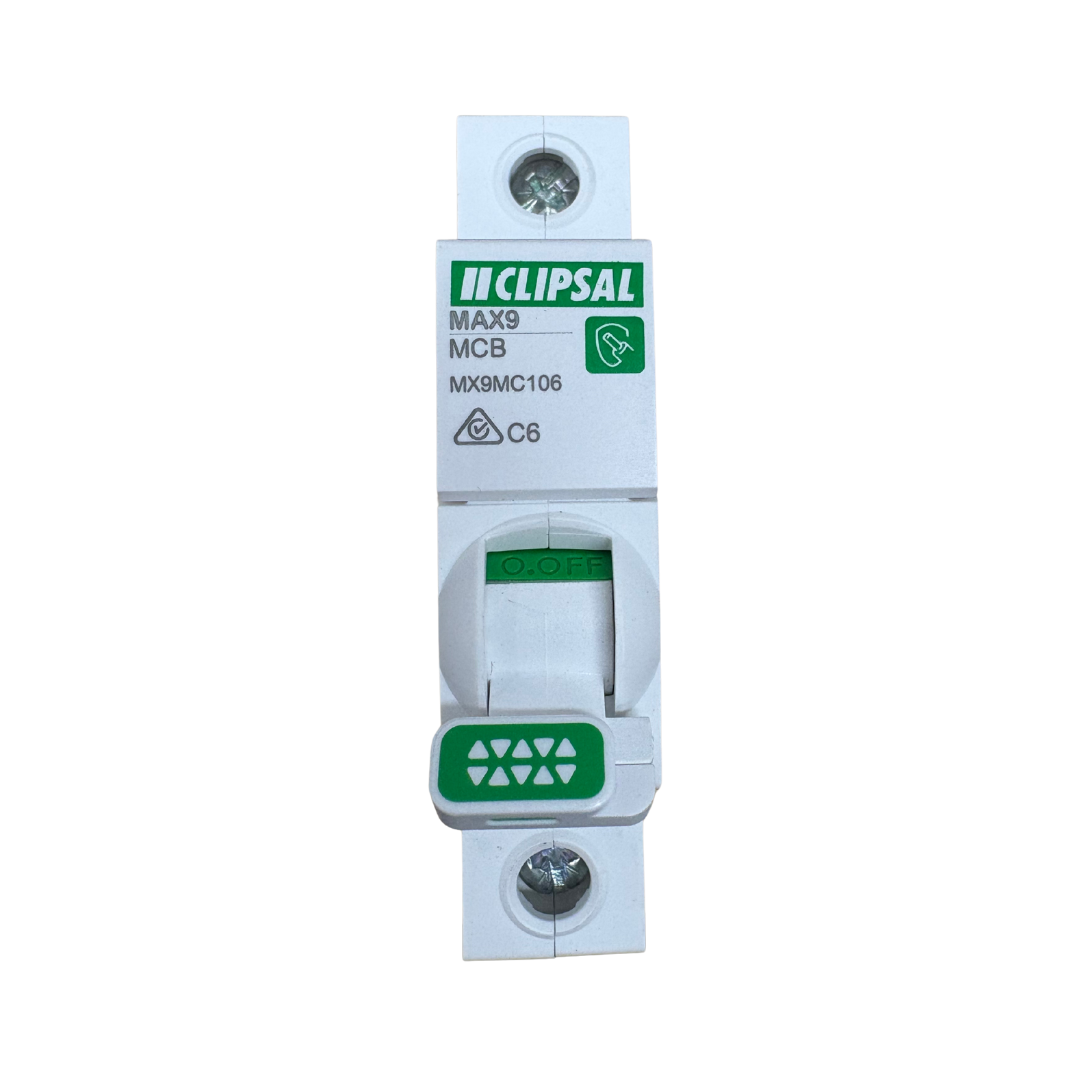

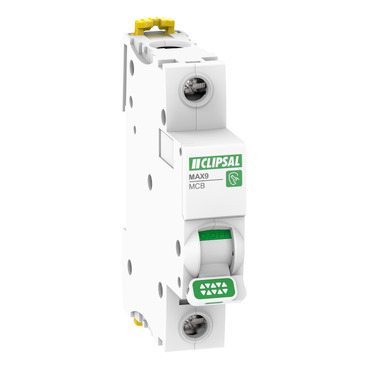

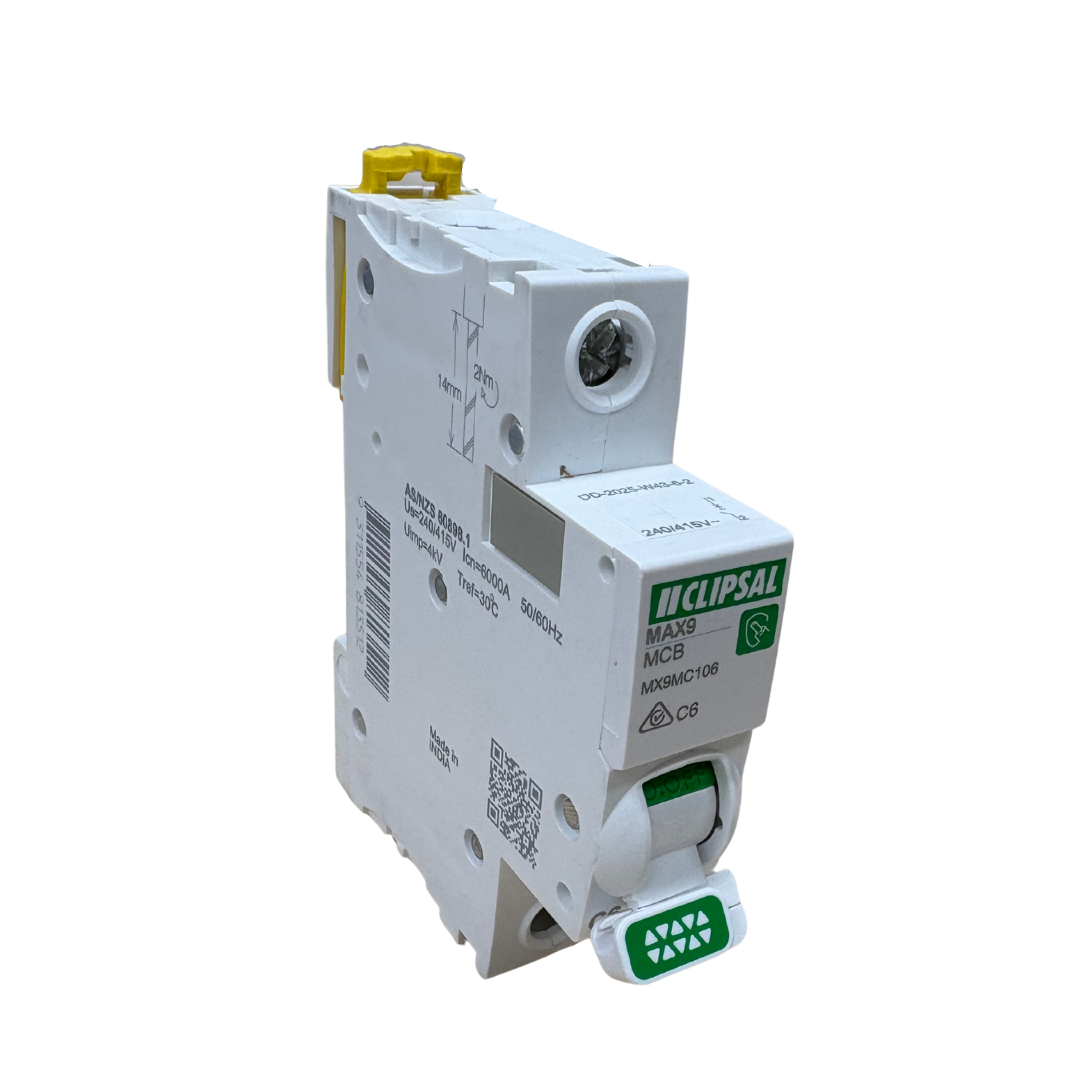

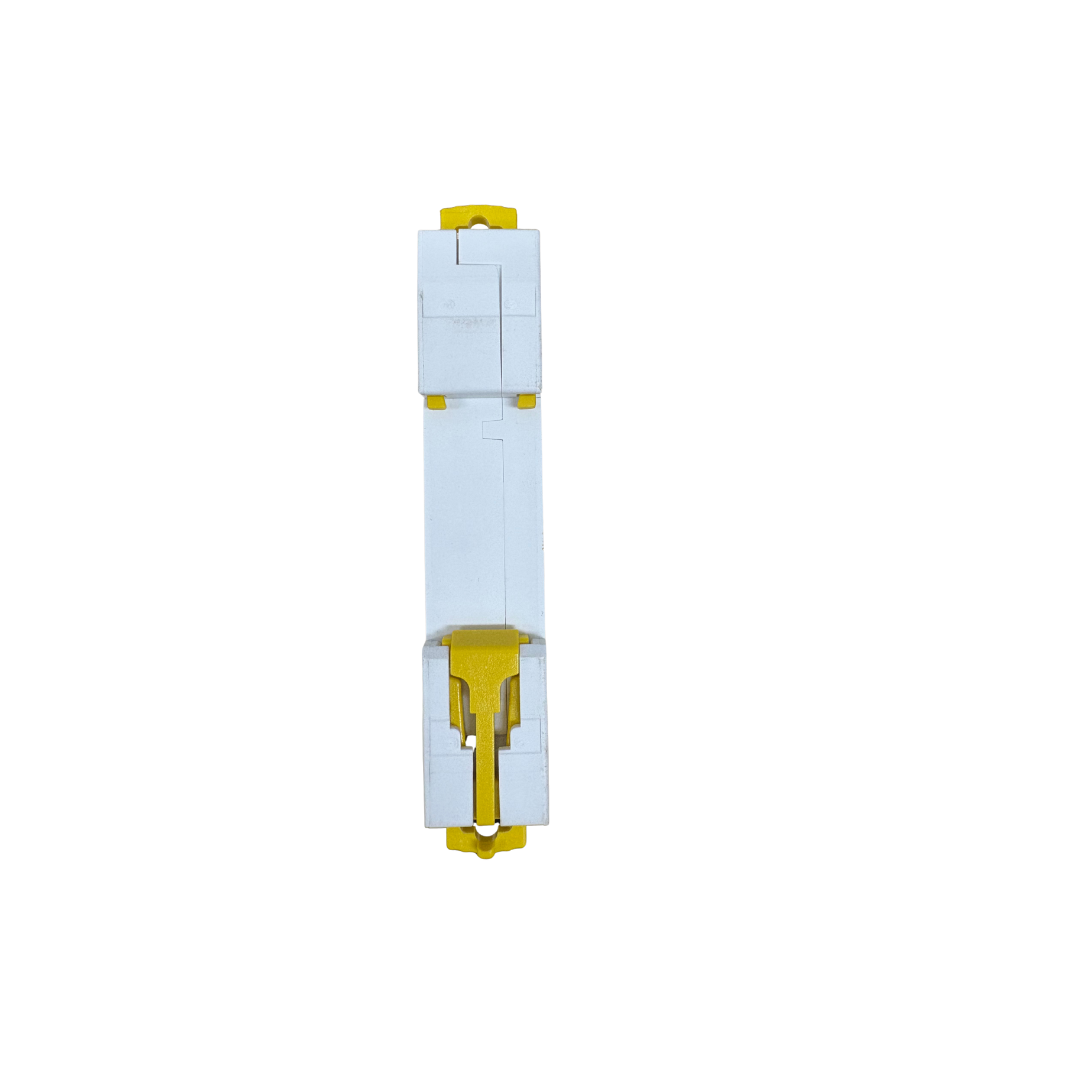

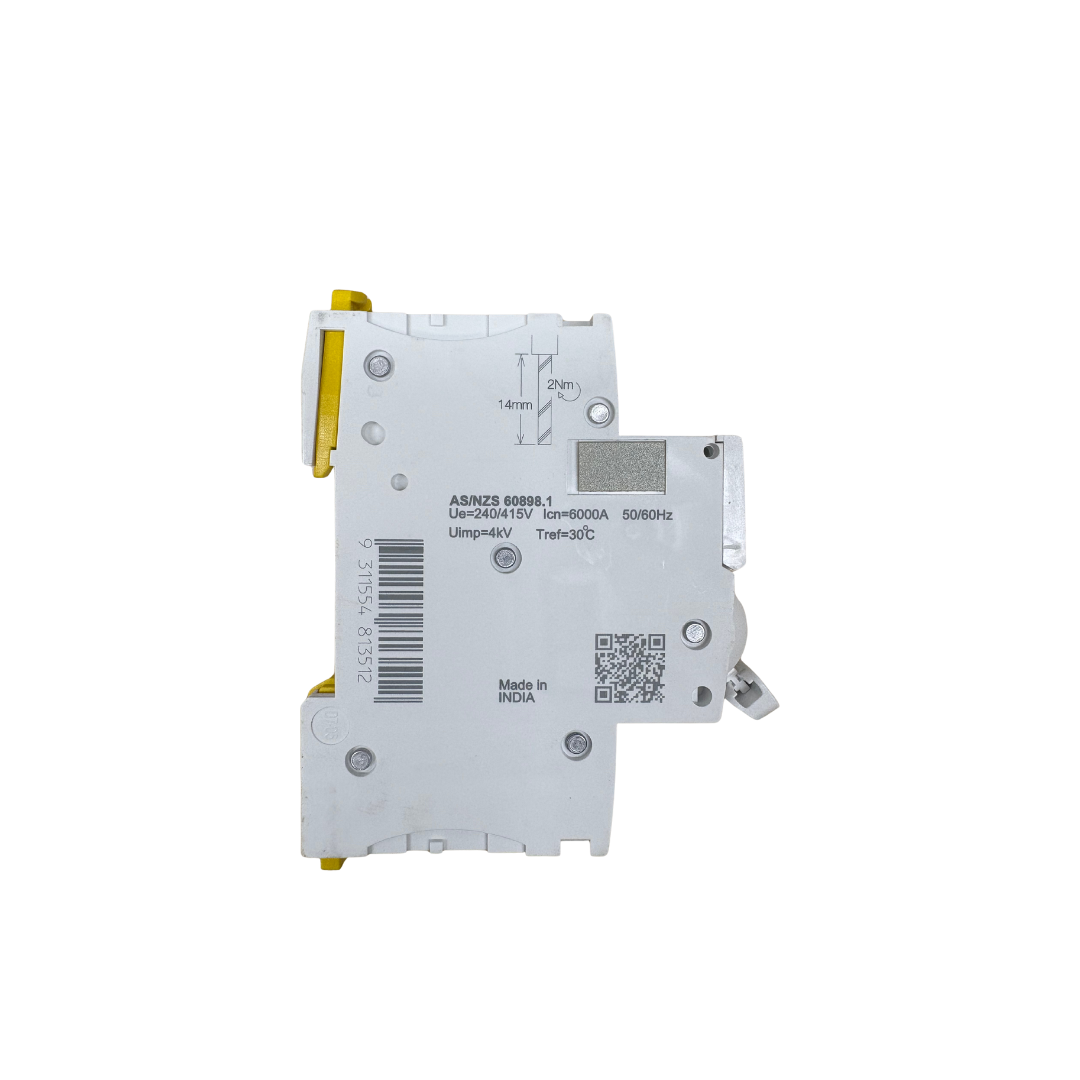

Clipsal MX9MC106 MAX9 Miniature Circuit Breaker MCB 1P 6A C Curve 6kA 240V RCM

SKU: climcbmx9mc106

Product image thumbnail for SKU climcbmx9mc106

Download Data Sheet

$5.38 (ex-GST)

$5.92 (inc-GST)

$5.92

$5.38

(inc-GST)

(ex-GST)

⚫︎ Ships in 24 hours

Clipsal MAX9 single-pole MCB rated 6A on a C curve, 6000A breaking capacity to AS/NZS 60898. One 18mm module, suitable for isolation, RCM marked. 7 year warranty. Not an RCD.

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

Single-pole overcurrent protection, 6 amps, C curve.

The Clipsal MX9MC106 is a MAX9 miniature circuit breaker rated 6 A at 30 °C on a C curve, with a 6000 A breaking capacity conforming to AS/NZS 60898. It occupies one 18 mm module and is suitable for isolation.

Key Features

Rated current 6 A at 30 °C, C curve
1 pole, 1 protected pole, 240 V AC 50/60 Hz
Breaking capacity 6000 A Icn conforming to AS/NZS 60898
Magnetic tripping limit 5–10 x In, energy limitation class 3
Suitable for isolation, with contact position indicator
ON/OFF locking with trip-free mechanism
Compatible with MAX9 18 mm pitch pin type busbar and MAXBAR, with double locking clip and top or bottom line connection
Tunnel terminals: 1–16 mm² flexible, 1–25 mm² rigid
Wire stripping length 14 mm, tightening torque 2 N.m
Mechanical durability 20,000 cycles, electrical durability 10,000 cycles
Operating range −25 °C to 70 °C with derating, IP20, padlockable
RCM marked, Green Premium, free of Substances of Very High Concern above the REACh threshold
7 year manufacturer warranty

Secure yours online today.

Why it Matters

What the C Curve Specifies

Clipsal specifies a magnetic tripping limit of 5 to 10 times rated current for this breaker, an energy limitation class of 3, and a rated service breaking capacity of 6000 A at 100 percent.

Busbar and Terminals

The breaker is compatible with the MAX9 18 mm pitch pin type busbar, and with MAXBAR when used as a main incomer. A double locking clip allows installation or removal from the busbar, and the line connection can be made from the top or the bottom. Tunnel type terminals accept 1 to 16 mm² flexible or 1 to 25 mm² rigid conductors, with a 14 mm stripping length and 2 N.m tightening torque.

Board Space and Ratings

The breaker is 18 mm wide across two 9 mm pitches, which is one standard module, at 85 mm high with a 44 mm embedding depth and a 45 mm grid distance. It is rated IP20, pollution degree 2, overvoltage category III, with a 4 kV rated impulse withstand voltage and 500 V rated insulation voltage. Heat dissipation is 1.3 W.

Does the MX9MC106 provide earth leakage protection?
No. This is a miniature circuit breaker providing overcurrent and short-circuit protection only. Residual current protection requires an RCD or RCBO.

Can the MX9MC106 be used with a MAX9 busbar?
Yes. Clipsal lists it as compatible with the MAX9 18 mm pitch pin type busbar, and with MAXBAR when the MCB is used as a main incomer.

What cable size fits the MX9MC106?
Tunnel terminals accept 1 to 16 mm² flexible or 1 to 25 mm² rigid conductors, top or bottom, with a 14 mm stripping length.

(climcbmx9mc106)

Design
Range	MAX9
Product Type	Miniature circuit-breaker
Device Application	Distribution
Control Type	Toggle
Local Signalling	ON/OFF indication
Electrical
Rated Current [In]	6 A at 30 °C
Rated Operational Voltage [Ue]	240 V AC 50/60 Hz
Poles	1P
Number of Protected Poles	1
Network Type	AC, 50/60 Hz
Curve Code	C
Magnetic Tripping Limit	5...10 x In
Breaking Capacity	6000 A Icn at 240 V AC 50/60 Hz conforming to AS/NZS 60898
Rated Service Breaking Capacity [Ics]	6000 A 100 % - 240 V AC 50/60 Hz
Limitation Class	3
Rated Impulse Withstand Voltage [Uimp]	4 kV
Rated Insulation Voltage [Ui]	500 V
Suitability for Isolation	Yes
Contact Position Indicator	Yes
Heat Dissipation	1.3 W
Connections
Terminals	Tunnel type (top or bottom), 1-16 mm² flexible
Terminals	Tunnel type (top or bottom), 1-25 mm² rigid
Wire Stripping Length	14 mm for top or bottom connection
Tightening Torque	2 N.m
Mounting & Environment
Height	85 mm
Width	18 mm
Depth	75 mm
Embedding Depth	44 mm
9 mm Pitches	2
Grid Distance	45 mm
Net Weight	125 g
IP Degree of Protection	IP20
Provision for Padlocking	Padlockable
Ambient Air Temperature for Operation	-25...70 °C
Ambient Air Temperature for Storage	-40...85 °C
Relative Humidity	95 % at 55 °C
Pollution Degree	2
Overvoltage Category	III
Operating Altitude	0...2000 m
Tropicalisation	Severity B conforming to IEC 60068-2-30
Temperature Derating
-25 °C	7.44 A
-20 °C	7.32 A
-15 °C	7.2 A
-10 °C	7.07 A
-5 °C	6.95 A
0 °C	6.82 A
5 °C	6.69 A
10 °C	6.56 A
15 °C	6.42 A
20 °C	6.29 A
25 °C	6.14 A
30 °C	6 A
35 °C	5.85 A
40 °C	5.7 A
45 °C	5.54 A
50 °C	5.38 A
55 °C	5.22 A
60 °C	5.04 A
65 °C	4.87 A
70 °C	4.68 A
Durability
Mechanical Durability	20000 cycles
Electrical Durability	10000 cycles at 240 V
Packing
Unit Type of Package	PCE
Units per Package	1
Package Height	7.2 cm
Package Width	8.5 cm
Package Length	1.8 cm
Package Weight	102.0 g
Carton Quantity	12
Carton Weight	1.302 kg
Compliance & Environmental
Quality Labels	RCM
Warranty	7 year (84 months)
Green Premium Status	Green Premium product
Mercury Free	Yes
REACh Regulation	Free of Substances of Very High Concern above the threshold
Total Lifecycle Carbon Footprint	7 kg CO2 eq.
Environmental Disclosure	ENVPEP2205015EN
EU RoHS Directive	Compliant by exemption
China RoHS Regulation	Product out of China RoHS scope
