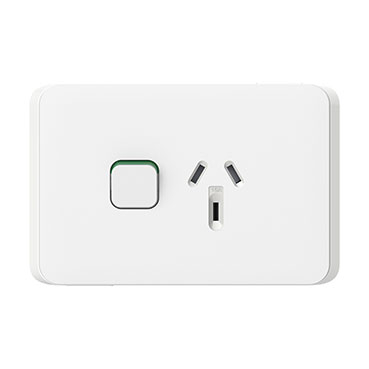

Clipsal Iconic | Single Switch Socket Outlet | Horizontal Mount, 250V, 10A | Vivid White

SKU: cli3015vw

Download Data Sheet

$11.93 (ex-GST)

$13.12 (inc-GST)

$13.12

$11.93

(inc-GST)

(ex-GST)

RRP $25.00 SAVE $11.88

⚫︎ In Stock

Clipsal - World-class design, premium materials, and precision engineering come together.

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Inquire here

The Iconic Single Power Point has a Grid Plate with innovative protective flaps, which help prevent screw access after installation (by a qualified electrician); which means skins can be changed safely at any time.

(cli3015vw)

Design
Range	Clipsal Iconic
Product or component type	switched socket
Surface treatment	untreated
Physical
Device presentation	complete product
Socket number	1
Connections - terminals	screw terminals
Installation direction	horizontal
Device mounting	flush
Number of rocker	1
Rated current	10 A
[ue] rated operational voltage	230/240 V
Fixing mode	by screws
Clamping connection capacity	1 x 2.5...4 x 2.5 mm?? for rigid cable(s)1 x 2.5...4 x 2.5 mm?? for stranded cable(s)1 x 2.5...4 x 2.5 mm?? for flexible cable(s)
Wire stripping length	16 mm
Net weight	100 g
Ambient air temperature for operation	0...45 ??C
Height	78 mm
Width	120 mm
Depth	31 mm
Toxic heavy metal free	Yes
Mercury free	Yes
Environmental disclosure	ENVPEP1607004EN
Quantity per set	set of 10
Others
Average percentage of recycled plastic content	0 %
Legacy weee scope	In
Weee applicability	Finished product
	Outside of Europe
Weee label	N/A
Main colour tint	vivid white
Unit type of package 1	PCE
Package 1 height	3.5 cm
Package 1 width	7.5 cm
Package 1 length	11.5 cm
Package 1 weight	108 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	6 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.860569133222572
Carbon footprint of the manufacturing phase [a1 to a3]	0.9 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.030965143123998302
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.02196046431940097
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	4.7053
Carbon footprint of the use phase [b2, b3, b4, b6]	5 kg CO2 eq.
Carbon footprint of the end-of-life phase [c1 to c4]	0.25339742830337847
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Silicone-free	No
Removable battery	N/A
Total lifecycle carbon footprint	5.87219216896935
Average percentage of recycled metal content	0 %
Halogen-free status	Halogen free product
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
