CJ2 Cable Connector Two Screw 3x6mm Pack of 50

Description

50 Connectors. Two Screws. Double the Grip.

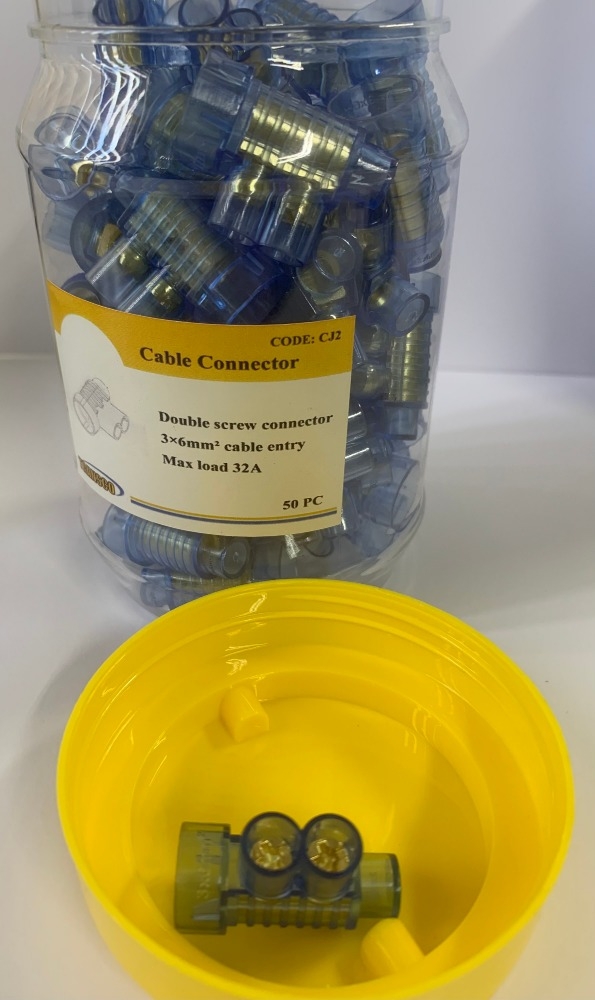

The Transco CJ2 is a two screw insulated brass cable connector rated at 32A — delivering a more secure double-gripped cable join for cables up to 6mm² in electrical installations. Sold in a jar of 50 pieces, the CJ2 is the choice where a firmer mechanical connection is required across lighting, power, and general wiring circuits in residential and commercial applications.

• Transco — two screw insulated cable connector
• Brass connector body
• Clear fire retardant PVC insulator
• 2 screws per connector — double-gripped connection
• Rated 32A
• Cable accommodation: max 3 x 6mm²
• Sold as 50 pieces per jar
• Also available as 1 screw (CN1 — 100pcs per jar)

Stock up online now for fast dispatch Australia-wide.

Why Electricians Choose the CJ2 for a More Secure Cable Join

The CJ2 uses two screws to grip both cables in the connector body — one screw per cable entry — creating a more mechanically secure connection than the single screw CJ1. This double-gripped format is the preferred choice wherever the join may be subject to vibration, movement, or repeated handling, or where a more positive mechanical lock on each cable is part of the installation specification. The same brass body and clear fire retardant PVC insulator construction as the CJ1 ensures consistent electrical performance and insulation quality across both variants.

The CJ2 covers exactly the same cable size range as the CJ1 — up to 3 x 6mm² — and carries the same 32A current rating, making it a direct upgrade in security without changing the electrical specification. The 50 piece jar is sized for jobs where a more secure join is required at specific connection points rather than across an entire run, making the CJ2 and CJ1 natural companion products on the same job — CJ1 for the bulk of standard joins, CJ2 where a firmer grip is needed.

Q: What is the difference between the CJ1 and the CJ2 connector?
A: Both the CJ1 and CJ2 accommodate max 3 x 6mm² cable and are rated at 32A. The CJ1 has one screw and is sold in a jar of 100 pieces. The CJ2 has two screws for a more secure double-gripped connection on each cable and is sold in a jar of 50 pieces. Choose the CJ2 where a firmer mechanical grip is required at the join.

Q: What cable size does the Transco CJ2 connector suit?
A: The CJ2 accommodates cable up to a maximum of 3 x 6mm² — covering standard Australian residential and commercial wiring sizes including 1mm², 1.5mm², 2.5mm², 4mm², and 6mm² cable in all combinations up to the 3 x 6mm² maximum.

Q: How many connectors are in a jar of Transco CJ2?
A: Each jar of Transco CJ2 connectors contains 50 pieces — half the quantity of the CJ1 jar, reflecting the CJ2's use in specific higher-security join locations rather than bulk circuit wiring.
