Marine Cable Twin Core White Sheath 4mm 100m Roll

SKU: cabtwimar4.100m

Product Image Gallery

Product image thumbnail for SKU cabtwimar4.100m

Product Pricing

$180.00 (ex-GST)

$198.00 (inc-GST)

$198.00

$180.00

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ In Stock

4mm Marine Cable Twin Core White Sheath (TCW) 100m Roll

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200


Description

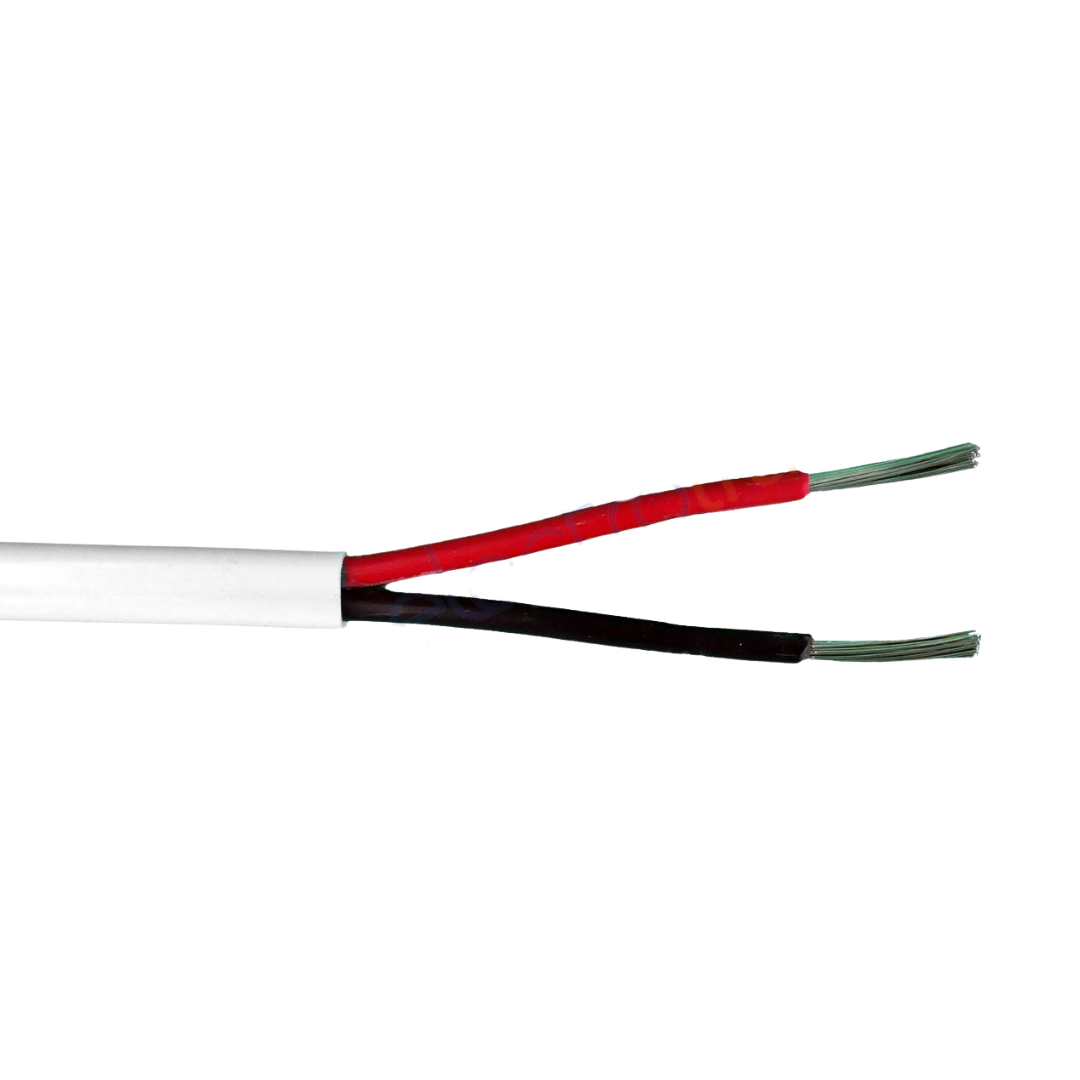

4mm Marine Twin Core Tinned Cable – White Sheath, 100m Roll (22A Rated)

This premium 4mm marine twin core cable is built for tough conditions on water and land. Featuring tinned copper conductors for superior corrosion resistance, it’s ideal for marine wiring, boat trailers, solar systems, and 12V/24V DC circuits.

Supplied as a 100m continuous roll, this cable offers high flexibility and durability with UV-stabilised V90HT PVC insulation and a low-profile white outer sheath. Red and black inner cores ensure quick polarity identification during install.

Key Features:

  • Cable Type: Twin core – red/black conductors, white outer sheath

  • Conductor Size: 1.84 mm² (4mm nominal)

  • Stranding: 26/0.30 tinned annealed copper (TCW)

  • Rated Current: 22 Amps

  • Voltage Rating: 50V AC / 120V DC

  • Insulation: UV-stabilised V90HT PVC, 90°C

  • Outer Dimensions: Approx. 3.90 x 6.70mm

  • Material: 99.9% OFHC (oxygen-free high conductivity) tinned copper

  • Compliance: AS/NZS 1125 & 3000:2000, RoHS

  • Supplied As: 100m roll – Qty 1 = 1 roll

Ideal for marine environments, caravans, 4WD, garden lighting, and anywhere corrosion resistance and long-life DC wiring are essential.

(cabtwimar4.100m)

Specifications

Product Details
Product Code MTS22603
Strands 26/0.30 mm
Nominal Area 1.84 mm²
Industry Equivalent 4.0 mm
Amperage Rating 22 A
Insulation Thickness 0.60 mm
Max DC Resistance @ 20°C 10.65 Ω/km
Nominal OD 3.90 × 6.70 mm
Mass 5.70 kg/100m
Construction
Conductor Type Tinned Annealed Copper (TCW) to AS/NZS1125
Insulation
Insulation PVC V90HT (UV Stabilised) to AS3808:2000
Features
Voltage Rating Automotive AC 50V / DC 120V
Temperature Rating +90°C
RoHS Compliant Yes
UV Resistant Yes
SKU cabtwimar4.100m
Brand Generic
Shipping Weight 5.7000kg
