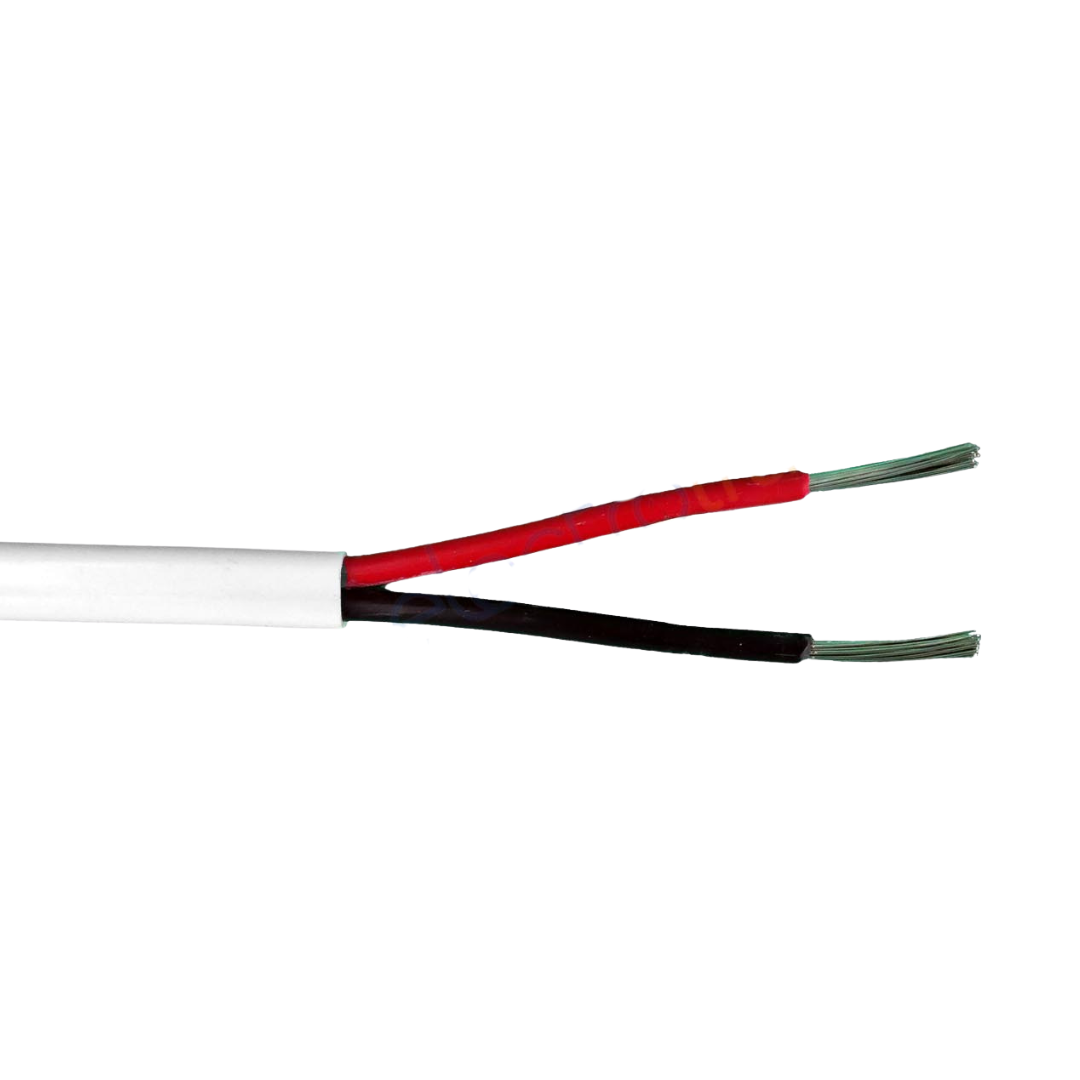

Marine Cable Twin Core White Sheath 4mm 020 Metre Cut

SKU: cabtwimar4.20m

Product Image Gallery

Product image thumbnail for SKU cabtwimar4.20m

Product Pricing

$44.55 (ex-GST)

$49.00 (inc-GST)

$49.00

$44.55

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ Only 2 Left!

4mm Marine Cable Twin Core White Sheath (TCW) 20 metre cut

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200


Description

4mm Marine Twin Core Tinned Cable – White Sheath, 20m Cut (22A Rated)

This 4mm² marine twin core cable is supplied as a 20m cut length, perfect for medium installations on boats, caravans, trailers, or outdoor 12V systems. Its tinned copper conductors provide excellent corrosion resistance in wet and salty environments, making it ideal for marine wiring, trailer lighting, and RV power feeds.

The white outer sheath is UV-stabilised and easy to route, while the red and black inner cores support fast, accurate polarity ID during installation. This cable is RoHS compliant and meets Australian standards for durability and electrical safety.

Product Features:

  • Cable Type: Twin core – red/black tinned copper conductors

  • Conductor Size: 1.84 mm² (4mm nominal)

  • Copper Construction: 26/0.30 tinned annealed copper (AS/NZS1125)

  • Voltage Rating: 50V AC / 120V DC

  • Current Rating: 22 Amps

  • Outer Dimensions: Approx. 3.90 x 6.70mm

  • Insulation: UV-rated V90HT PVC, 90°C

  • Sheath Colour: White

  • Compliance: RoHS, AS/NZS 3000:2000

  • Supplied As: 20 metre pre-cut length

A high-performance cable for 12V/24V systems in marine, RV, and outdoor environments where longevity and corrosion resistance are essential.

(cabtwimar4.20m)

Specifications

Product Details
Product Code MTS22603
Strands 26/0.30 mm
Nominal Area 1.84 mm²
Industry Equivalent 4.0 mm
Amperage Rating 22 A
Insulation Thickness 0.60 mm
Max DC Resistance @ 20°C 10.65 Ω/km
Nominal OD 3.90 × 6.70 mm
Mass 5.70 kg/100m
Construction
Conductor Type Tinned Annealed Copper (TCW) to AS/NZS1125
Insulation
Insulation PVC V90HT (UV Stabilised) to AS3808:2000
Features
Voltage Rating Automotive AC 50V / DC 120V
Temperature Rating +90°C
RoHS Compliant Yes
UV Resistant Yes
SKU cabtwimar4.20m
Brand Generic
Shipping Weight 1.1400kg
