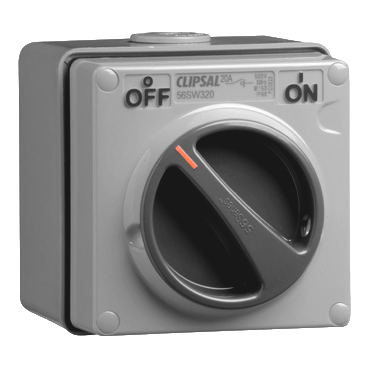

IP66 Clipsal 56 Series - Surface Switch - 1 Gang, 3 Pole, 500VAC, 20A - Grey

SKU: cliswi320

$84.27 (ex-GST)

$92.70 (inc-GST)

$92.70

$84.27

(inc-GST)

(ex-GST)

Clipsal - World-class design, premium materials, and precision engineering come together.

Heavy-duty surface switch ideal for robust electrical applications.

(cliswi320)

Design
Range of product	Series 56
Range	Clipsal - 56 Series
Product brand	Clipsal
Product or component type	switch
Device application	control
Colour	cover: chemical grey
Market segment	industrysmall commercialutility
Physical
Device presentation	basic element with full cover plate
Control type	rotary knob
Number of poles	3
Device mounting	surface
Local signalling	without
[ue] rated operational voltage	500 V AC 50 Hz
Rated current	20 A
Marking	ON-OFF
Fixing mode	by screws
Height	107 mm
Width	101 mm
Depth	108 mm
Net weight	0.58 kg
Switch function	3-pole
Ambient air temperature for operation	-25...75 °C
Ip degree of protection	IP66 conforming to AS 60529
Standards	AS/NZS 3133
Mercury free	Yes
Environmental disclosure	ENVPEP120809EN
Circularity profile	N/A
Material
Material	PC (polycarbonate)
Others
Handle colour	grey
Poles description	3P
[icm] rated short-circuit making capacity	1 kA
Tightening torque	0.8 N.m
Marking location	marking on surface
Breaking capacity	20 kA
Targeted country	Australia
Motor m-rating as3133	M150 at 500 V
[uimp] rated impulse withstand voltage	4 kV
[icw] rated short-time withstand current	1.2 kA for 1 s
Rotary handle padlocking	2 padlocks 8-8 mm
Unit type of package 1	PCE
Package 1 height	11.25 cm
Package 1 width	11.25 cm
Package 1 length	10.65 cm
Package 1 weight	640.0 g
Recycled metal content at cr level	0
Removable battery	N/A
Global warming ; total life cycle	9 kg CO2 eq.
Minimum percentage of recycled plastic content	0
