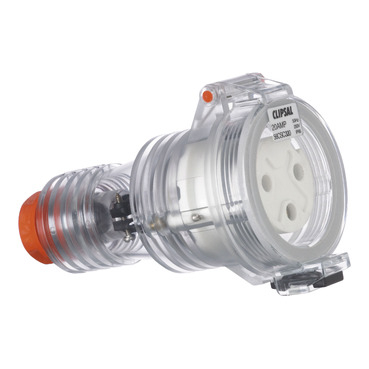

IP66 Clipsal 56 Series - Cord Extension Socket - 3 Round PIN 250V 20A - Electric Orange - 56CSC320-EO
SKU: cliextsoc320.56
Product Image Gallery
Product Pricing
$132.42 (ex-GST)
$145.66 (inc-GST)
$145.66
$132.42
(inc-GST)
(ex-GST)
Stock and Availability
- ⚫︎ In Stock
Clipsal - World-class design, premium materials, and precision engineering come together.
Electrotraders USPs
Description
Cord extension socket supporting 20A with 3 round pin configuration.
- 250V, 20A rated
- 3 Round pins
- Electric orange housing
- Supplier Item Code: 56CSC320-EO
- Handling Time: 3 - 5 Days
(cliextsoc320.56)
Specifications
| Design | |
| Range of product | Series 56 |
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | socket |
| Device application | power supply |
| Market segment | utilitysmall commercialindustry |
| Physical | |
| Mounting mode | external mounting |
| [in] rated current | 20 A |
| [ue] rated operational voltage | 250 V AC 50 Hz conforming to EN 60309-2 |
| Connections - terminals | screw terminals 1-6 mm² |
| Connections - terminals | screw terminal |
| Socket number | 1 |
| Outlet standard | industrial |
| Cable outer diameter | 7...16 mm |
| Cable entry | cable gland |
| Net weight | 0.318 kg |
| Depth | 173 mm |
| Length | 173 mm |
| Width | 90 mm |
| Height | 90 mm |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Ambient air temperature for operation | -25...75 °C |
| Standards | AS/NZS 3120 |
| Mercury free | Yes |
| Environmental disclosure | ENVPEP121020EN |
| Circularity profile | N/A |
| Material | |
| Material | polycarbonate: housing |
| Contacts material | sleeves: brass |
| Others | |
| Plug, socket category | low voltage |
| Plug, socket, control station shape | straight |
| Poles description | 1P + N + E |
| Voltage colour | blue |
| Socket-outlet type | H |
| Thread type | M25 |
| Targeted country | Australia |
| Unit type of package 1 | PCE |
| Package 1 height | 8.5 cm |
| Package 1 width | 9.9 cm |
| Package 1 length | 17.6 cm |
| Package 1 weight | 301.0 g |
| Recycled metal content at cr level | 0 |
| Removable battery | N/A |
| Minimum percentage of recycled plastic content | 0 |
| SKU | cliextsoc320.56 |
| Manfacturer Part Number | 56CSC320-EO |
| Barcode # | 9311554464646 |
| Brand | Clipsal |
