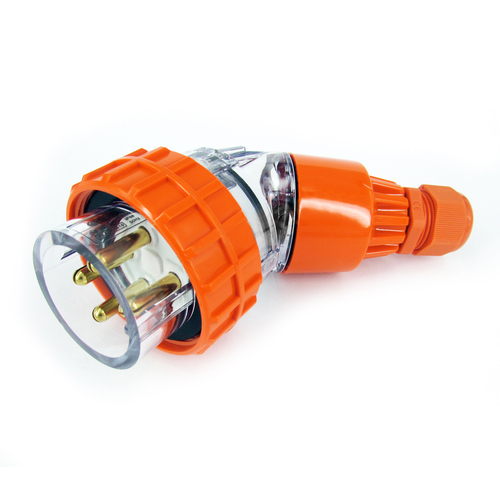

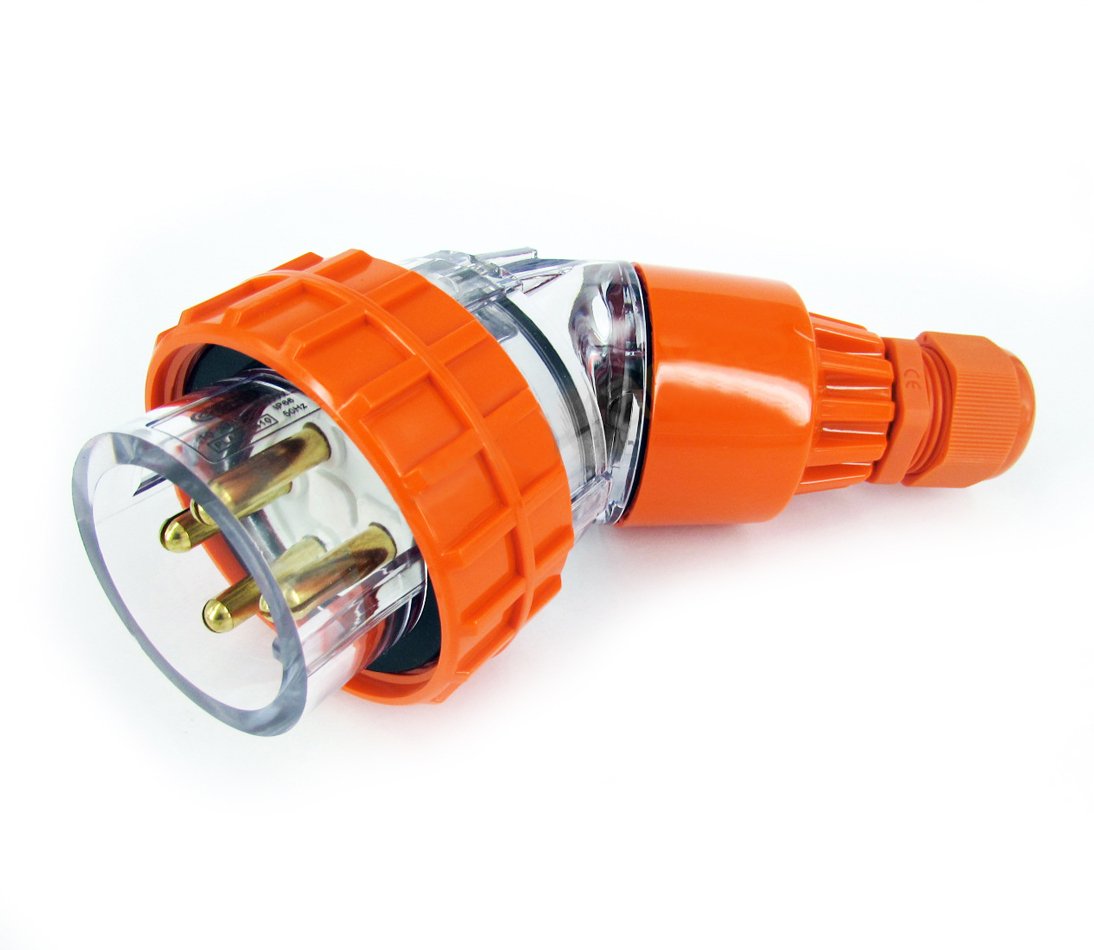

GEN3 PLA3PH410 Weatherproof IP66 Angled Plug 10A 3 Phase Orange

Description

Three-phase power, angled and weatherproof.

The GEN3 PLA3PH410 is a 10A three-phase industrial extension plug top with four round pins and a 45-degree angled body. Its IP66-rated, 56 Series-style design and compression gland make it a rugged, quick-to-terminate plug for three-phase outdoor and industrial leads.

Key Features

• 10A three phase, 4 round pins
• 500V AC
• 45-degree angled plug top
• IP66 rated — dust-tight and protected against powerful water jets
• Compression gland for quick cable termination
• 56 Series-style, interchangeable with other major brands
• PCA18 virgin-grade plastic (no regrind)
• 316 stainless steel springs and screws
• Brass internal components (greater than 85% copper) for lower heat rise
• Operating temperature -25°C to +70°C
• Complies with AS/NZS 3123:2005; orange finish

Buy online today for fast Australia-wide dispatch.

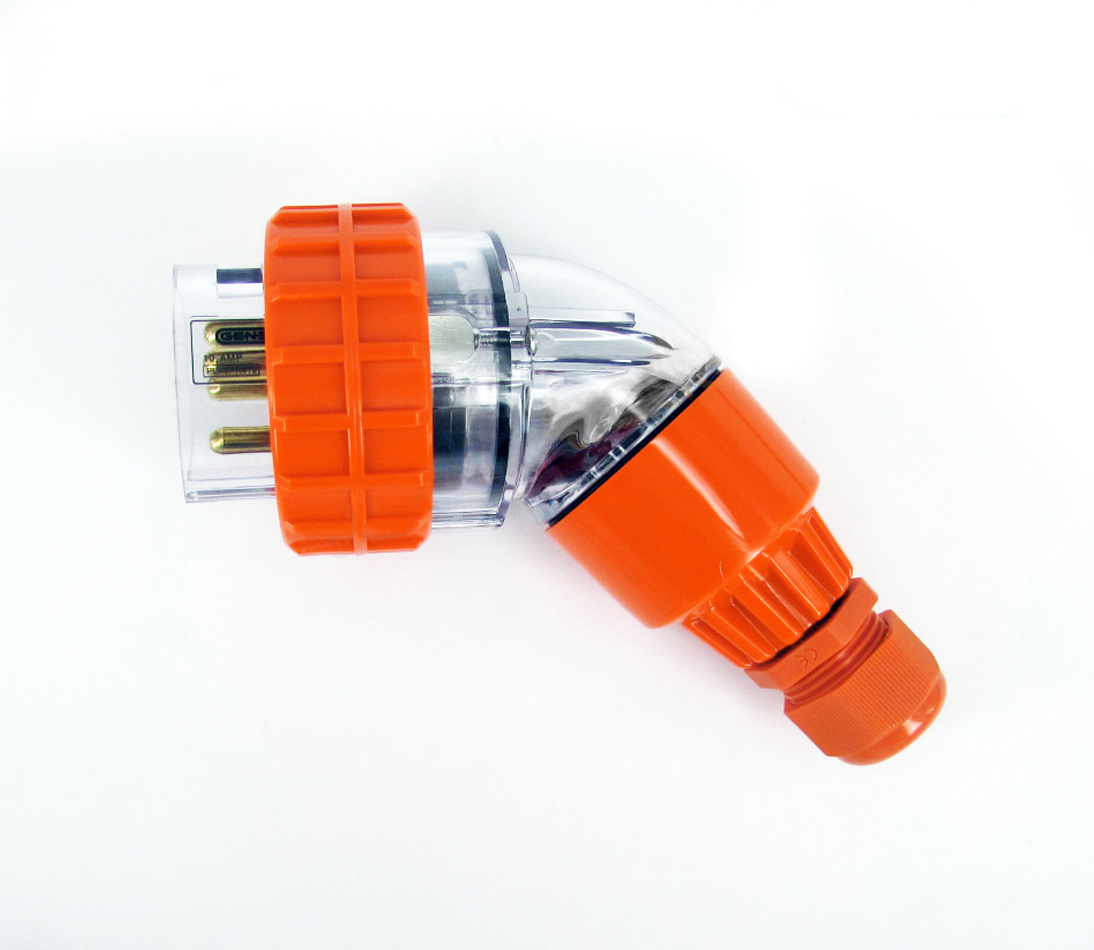

Why the 45-Degree Angle

The angled body turns the cable away from the pins and down along the surface, taking strain off the cable entry and keeping leads tidy against a wall, board or machine. It's the practical choice in tight spots or where a straight plug would protrude and snag.

Three-Phase, Built Tough

The four round pins carry three-phase power (three actives plus earth) rated to 500V. It is IP66 rated, so it is dust-tight and withstands powerful water jets from any direction, with a virgin-grade PCA18 body, 316 stainless steel springs and screws, and brass contacts of greater than 85% copper for lower heat rise. A wide -25°C to +70°C operating range and AS/NZS 3123:2005 compliance suit it to demanding Australian industrial sites.

Fast, Interchangeable Termination

A compression gland makes cable termination quick and secure on site. Because it follows the 56 Series-style format, the PLA3PH410 mates with 10A four-pin three-phase round sockets and inlets and is interchangeable with other major brands. Pair it with a matching 4-pin 10A extension socket to build a complete three-phase extension lead.

Q: Is the GEN3 PLA3PH410 single or three phase?
A: It is three phase. The four round pins carry three actives plus earth, rated 10A at 500V.

Q: Is the GEN3 PLA3PH410 weatherproof?
A: Yes. It is IP66 rated, meaning it is dust-tight and protected against powerful water jets, and it is built to AS/NZS 3123:2005 for industrial use.

Q: What socket does the PLA3PH410 plug into?
A: It mates with 10A four-pin three-phase round 56 Series-style sockets and inlets and is interchangeable with other major brands. Add a matching 4-pin 10A extension socket to make a lead.
