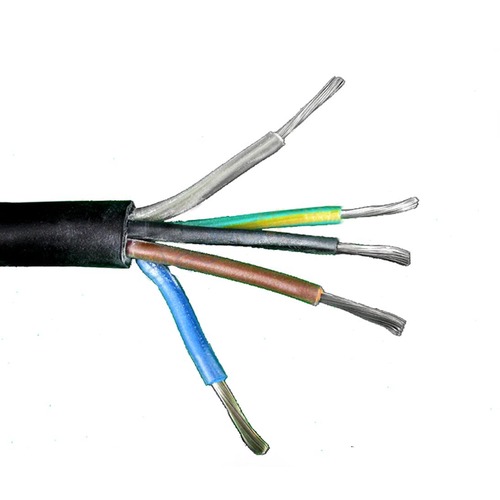

066 Amp Rated H07 Rubber Flexible Cable 4 Core & Earth 10mm - 5m Cut

SKU: cabh075g10.5m

Can't find what you need? Bulk Order Quotes? Call 1300 017 197 or contact us below.

H07 rubber flexible cable is a heavy-duty, flexible cable with a rubber sheath, designed for industrial and demanding applications, offering resistance to oil, chemicals, water, and abrasion
Typically used at event & temporary cabling, fairgrounds, sporting venues, flexible connections to motors, generators, compressors and portable equipment,
construction site leads, wet or oily environments, mine sites and quarries, submersible pumps, limit switches and many other applications.
Made of H07 Grade Rubber Flex which is sheathed in a Black Insulation that is Chemical/Oil Resistant and Flame Retardant
Conductors - Class 5 tinned copper according to AS/NZS 1125,IEC 60228
Insulation - Ethylene-propolene rubber (EPR) R-RP-90 90°C Conductor
Outer Jacket - Chlorinated Polyethylene, CPE rubber compound
Rated Voltage - 0.6/1kV
Minimum Bending Radius - 4 x D (fixed), 5 x D (mobile), D = outside diameter
The cable is submersible to 200mtrs
Suitable for fresh water, salt water, sewage/contaminated water
UV, Sunlight, oil and weather resistant
Flame retardant to IEC 60332-1-2:2004, EN60332-1-2-2004
Temperature range -25°C to +90°C
Maximum permisible short circuit temperature 1s 250°C
ELFLEX R-EP-90 ELECTRIC CABLE 0.6/1kV
This flex has full Australian Approvals.

(cabh075g10)

Cable Specifications: FMR5G10
Product Code	FMR5G10
CSA (mm2)	10
Nominal Sheath Thickness (mm)	3.6
Max DC Resistance @20°C (mΩ/KM)	1.95
Amps	66
Nominal OD (mm)	22.3
Mass (Kg/Km)	1025
Core Colors	Red, White, Blue, Black & Green/Yellow
General Specifications
Conductors	Class 5 tinned copper according to AS/NZS 1125, IEC 60228
Insulation	Ethylene-propolene rubber (EPR) R-EP-90 90°C Conductor
Submersible Rating	200m
Outer Jacket	Chlorinated Polyethylene, CPE rubber compound
Voltage	0.6/1kV
Sheath Colour	Black
Minimum Bending Radius	4 x D (fixed), 5 x D (mobile), D = outside diameter
Features
Submersible	Up to 200mtrs
Suitable for	Fresh water, salt water, sewage/contaminated water
Resistant to	UV, Sunlight, oil and weather
Flame retardant	IEC 60332-1-2:2004, EN60332-1-2-2004
Temperature range	-25°C to +90°C
Short circuit temperature	Maximum 1s 250°C
Applications
Applications	Event & temporary cabling, fairgrounds, sporting venues
	Flexible connections to motors, generators, compressors
	Construction site leads
	Wet or oily environments
	Mine sites and quarries
	Submersible pumps, limit switches
Weights
5m	5.1kg
10m	10.3kg
20m	20.5kg
40m	41kg
50m	51.3kg
100m	102.5kg
200m	205kg
300m	307.5kg
400m	410kg
500m	512.5kg
Note
Note	Consult electrician/engineer to ensure suitability. Information subject to change without notification.
