3 Phase To Single Phase Adapter 5 Pin 20A Plug to 3 Pin Flat 20A Outlet

SKU: ada520320f

$252.00

Share:

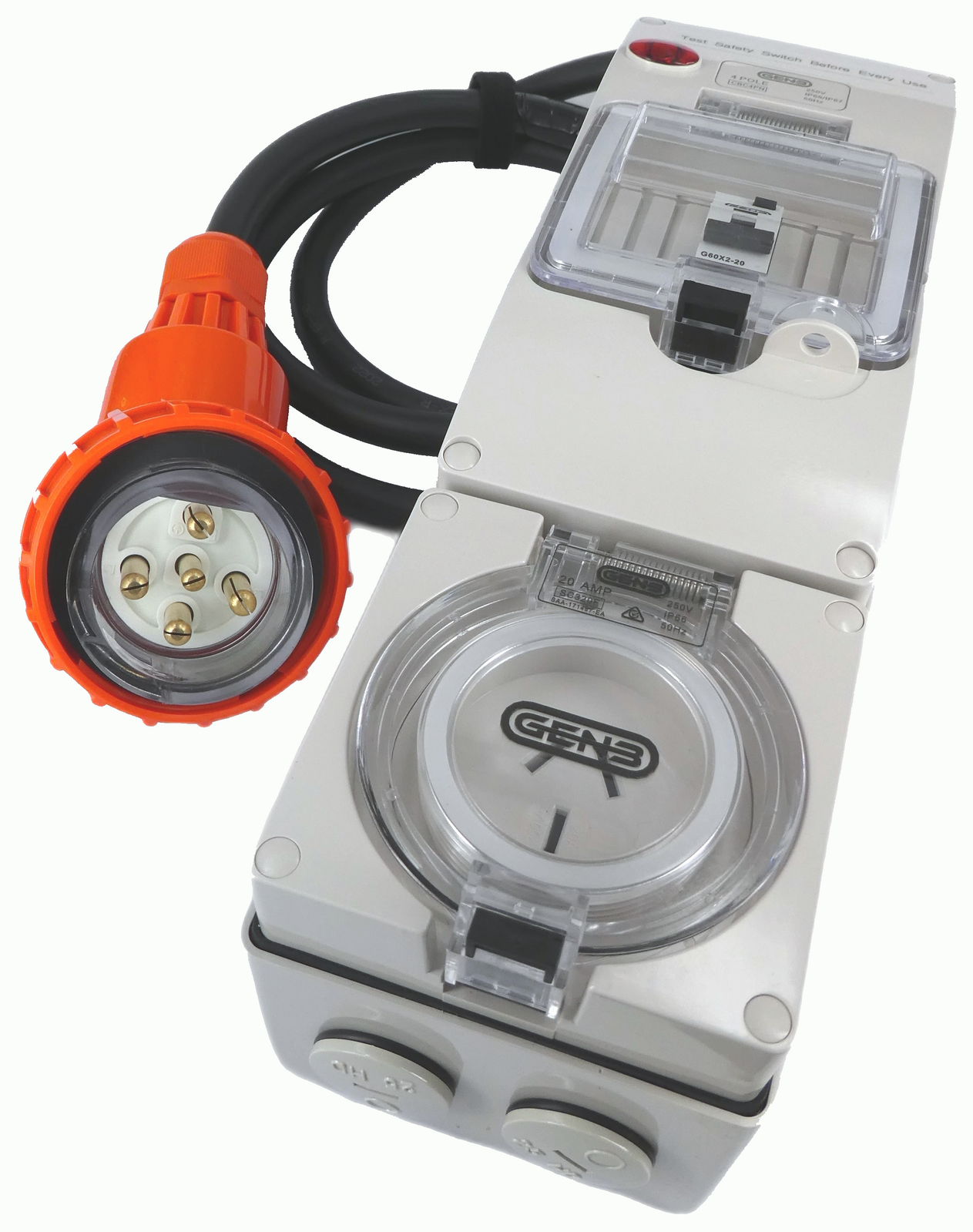

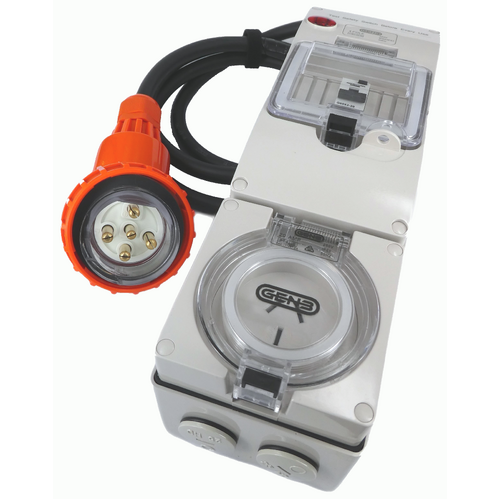

3 Phase To Single Phase Protected Adapter 5 Pin 20A Angled Plug to 3 Pin Flat 20A Socket



  • Three Phase 20A Plug to Single Phase 3 Pin 20 Amp Flat Socket Circuit Protected Adapter
  • Quality Angled 3 Phase 5 Pin Round 20A Plug
  • 2 metre lead HO7 Rubber Cable

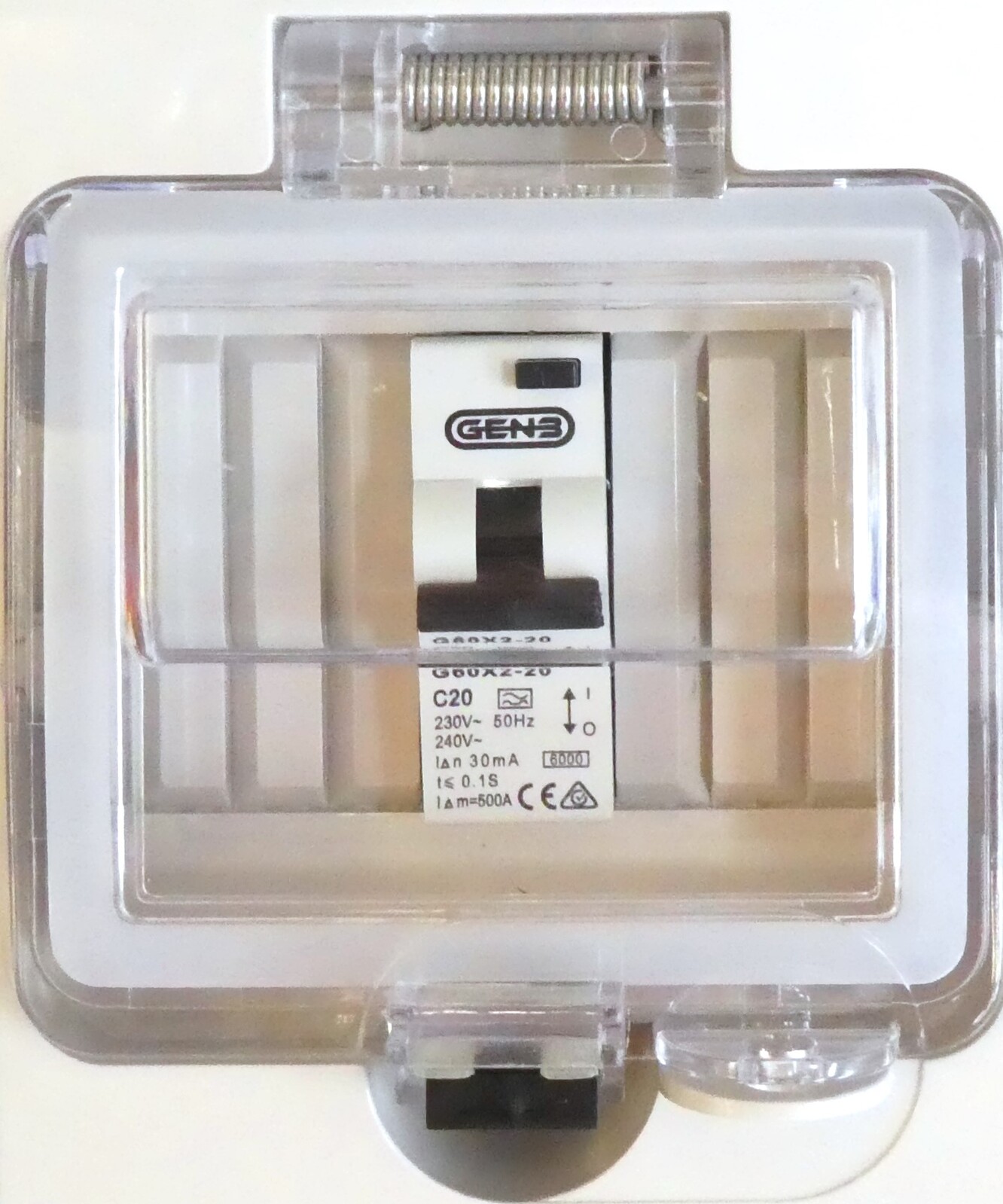

  • Circuit Protected by quality GEN3 20 Amp RCBO 4.5ka
  • Mounted inside 3 Module Base
  • IP66 Rated Plug, Socket and Base
  • 3 Pin 20A Flat Pin Socket
  • All GEN3 Industrial Switch Gear is IP66 Rated
  • All GEN3 plastics are PCA18 virgin grade (No regrind)
  • All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
  • All Brass internal components are greater than 85% copper.
  • All GEN3 products have Australian/NZ Approval Certificates.
  • All GEN3 products are interchangeable with other major brands.
  • GEN3 Operating Temperature range -25 °C to +70°C
  • The lead is made of HO7 Grade Rubber Flex which is sheathed in a Black Insulation that is Chemical/Oil Resistant and Flame Retardant
  • Conductors - Class 5 tinned copper according to AS/NZS 1125,IEC 60228
  • Insulation - Ethylene-propolene rubber (EPR) R-RP-90 90°C Conductor
  • Inner Sheath - EPDM Rubber Outer Jacket - Chlorinated Polyethylene, CPE rubber compound.
  • UV, Sunlight and weather resistant. Flame retardant to IEC 60332-1-2:2004,EN60332-1-2-2004.
  • Operating Temperature range -25°C to +90°C (mobile) -40°C to +90°C (fixed)
  • IP66 Rated Plug Socket and Base
  • All Electrotraders Adapters are assembled In-House by our Licenced Electricians.
  • Prior to Ordering this Adaptor please check & Confirm that the Outlet you are plugging into matches the Inlet plug on the Adapter i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc This will avoid inconvenience & Extra Cost should the incorrect adapter be purchased!



(ada520320f)

SKU ada520320f
Colour Grey
Brand Electrotraders
