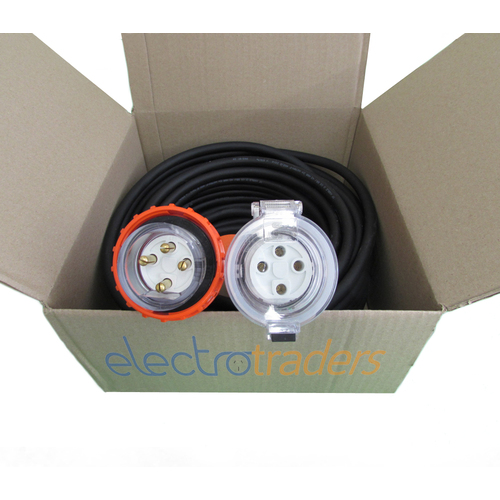

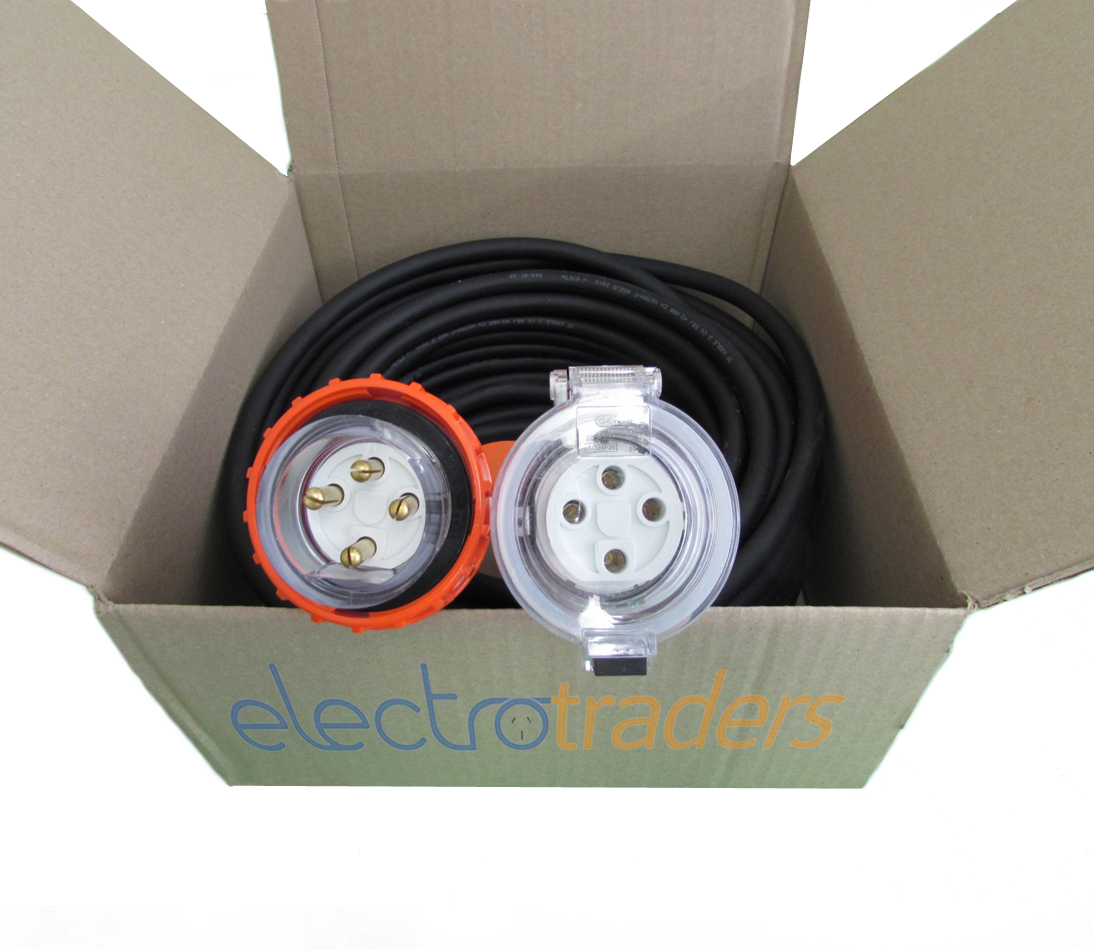

Extension Lead 4 Pin 20 Amp Round Pin Angled Plug 2m Standard Duty 2.5mm cable

Description

Versatile three phase power in three cable grades.

A 4 pin round 20 Amp extension lead moves 415V three phase power through three actives and an earth. Pick from three cable grades, 2.5mm² to 6mm², and lengths of 2m to 60m; every lead is assembled, tested and tagged before it ships.

High quality extension lead:

• Extension Lead 4 Pin Round 20 Amp 415V
• 24 month warranty on all products. Warranty does not extend to misuse.
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• All Electrotraders Extension Leads are assembled, tested and tagged in-house by our Licenced Electricians.

Choose your configuration:

• Available in lengths (m): 2, 3, 5, 10, 15, 20, 25, 30, 40, 50, 60 (Note: configurations may not offer all length options due to component availability or electrical characteristics)
• Cable Specifications: cross-sectional area (CSA in mm2), Nominal Sheath Thickness (NST in mm), Max DC Resistance @20°C (MaxR in ohms/KM), Nominal Diameter (NOD in mm), Amperage rating (in accordance with AS/NZS 3008.1.1.2009 Table 14)
  • Standard: CSA 2.5mm2, NST 1.9mm, MaxR 8.21, NOD 12.8mm, Amps 27
  • Heavy Duty: CSA 4mm2, NST 2.1mm, MaxR 5.09, NOD 14.9mm, Amps 36
  • Extra Heavy Duty: CSA 6mm2, NST 2.3mm, MaxR 3.39, NOD 16.9mm, Amps 46
• Typically used at events & temporary cabling, fairgrounds, sporting venues, for generators / motors / compressors / construction applications including portable equipment such as concrete cutting.

IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets i.e. 4 Pin 32A, 4 Pin 20A, 4 Pin 10A etc. If you aren't sure, contact us, we are happy to help.

Switch Gear:

• All Plugs and Sockets are source from high quality reputable Australian brands, are IP66 rated and are compatible with all leading Australian switch gear.
• Choose from our regular high quality GEN3 plugs and sockets, or upgrade to industry leading Clipsal gear (available on some product options only)

Cable Properties:

• Leads are assembled using Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
• Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
• H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
• Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
• Rated Voltage 0.6/1kV

Grab yours online for fast dispatch Australia-wide.

At home on any Australian job. Whether it is keeping generators, motors and compressors fed, powering concrete cutting equipment on a construction site, or laying temporary cable across events, fairgrounds and sporting venues, the 4 core H07 grade rubber flex holds up: UV, oil and weather resistant, flame retardant, and submersible to 200m, with IP66 rated plugs and sockets guarding the connection from dust and water jets.

Which cable grade fits your run? All three grades exceed the 20 Amp rating of this lead under AS/NZS 3008.1.1.2009 Table 14. Standard 2.5mm² (27 Amps) is the economical pick for short and mid length runs. Heavy Duty 4mm² (36 Amps) trims resistance to 5.09 ohms/KM for longer distances. Extra Heavy Duty 6mm² (46 Amps, 3.39 ohms/KM) holds voltage drop lowest of all, the right call for 40m to 60m runs at sustained full load.

From our Brisbane workshop to your site. Rochedale QLD is where our licensed Australian electricians assemble, test and tag every lead, each backed by a 24 month warranty. Shipping runs Australia-wide, click and collect is available locally, and 1300 017 197 gets you custom lengths or bulk order pricing.

Q: What is a 4 pin 20 amp extension lead used for?
A: It runs 415V three phase power to equipment with a 4 pin round 20A plug, from mid size three phase motors, compressors and generators through to portable construction machinery, and handles temporary cabling at events, fairgrounds and sporting venues.

Q: Which cable grade should I choose for a 20 amp extension lead?
A: Standard 2.5mm² (rated 27 Amps) suits shorter runs. Heavy Duty 4mm² (36 Amps) and Extra Heavy Duty 6mm² (46 Amps) lower resistance to 5.09 and 3.39 ohms/KM respectively, cutting voltage drop on long runs up to 60m.

Q: Can I get this extension lead with Clipsal plugs and sockets?
A: Yes. On selected configurations the Switch Gear option offers a Clipsal upgrade over the standard GEN3 fittings. Both brands are IP66 rated and built for Australian switch gear.
