6B&S Automotive Cable Twin Sheath Red Black 2 Core Per Metre
Electrotraders USPs
Description

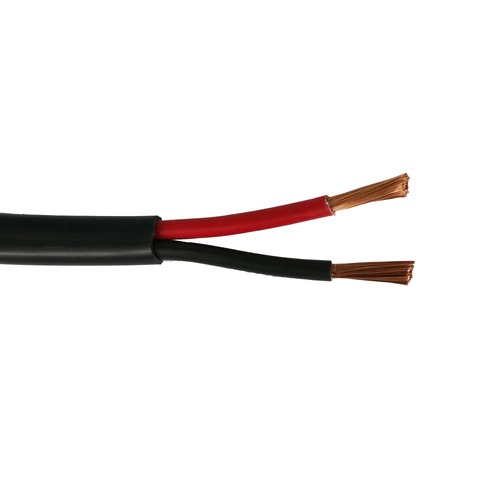

6 B&S Twin Automotive Cable – Red/Black 2 Core, 30m Roll (100A Rated)
This 6 B&S twin core automotive cable is engineered for high-current 12V and 24V DC systems where performance, durability, and reliability are essential. Featuring twin sheath construction with clearly colour-coded red and black cores, it’s perfect for dual battery setups, trailer builds, off-grid wiring, or heavy-duty DC charging systems.
The finely stranded oxygen-free copper conductors ensure maximum conductivity and flexibility, while the UV-stabilised V90HT PVC insulation offers protection from heat, abrasion, and harsh environments. Supplied in a 30m roll, it’s ideal for medium-length installs and professional use.
Key Features:
-
Cable Type: Twin core – red/black sheath
-
Conductor Area: 13.36 mm²
-
Construction: 189/0.30 plain annealed copper (AS/NZS1125)
-
Rated Current: 100 Amps
-
Voltage Rating: 50V AC / 120V DC (AS/NZS 3000:2000)
-
Outer Diameter: Approx. 9.40 x 16.2mm
-
Insulation: UV-stabilised V90HT PVC, 90°C rated
-
Material Quality: 99.9% OFHC (Oxygen-Free High Conductivity) copper
-
RoHS Compliant
-
Roll Length: 30 metres
Trusted by auto electricians, RV installers, and solar technicians, this cable is ideal for serious power delivery with minimal voltage drop.
(cabtwiaut6bs.30m)
Specifications
| Product Details | |
| Product Code | ATS218903 |
| Strands | 189/0.30 mm |
| Nominal Area | 13.36 mm² |
| Industry Equivalent | 6B&S mm |
| Amperage Rating | 100 A |
| Sheath Thickness | 1.20 mm |
| Max DC Resistance @ 20°C | 1.40 Ω/km |
| Nominal OD | 9.40 × 16.2 mm |
| Mass | 37.50 kg/100m |
| Construction | |
| Conductor Type | Plain Annealed Copper (PCW) to AS/NZS1125 |
| Insulation | |
| Insulation | PVC V90HT (UV Stabilised) to AS3808:2000 |
| Features | |
| Voltage Rating | Automotive AC 50V / DC 120V |
| Temperature Rating | +90°C |
| RoHS Compliant | Yes |
| UV Resistant | Yes |
| Application Note | |
| Note | Not suitable for connections to mains power |
| Standards | |
| Standards | JASO D609:2001 @ 30°C ambient |
| SKU | cabtwiaut6bs.30m |
| Brand | Generic |
| Shipping Weight | 11.2500kg |
