016 Amp Rated H07 Rubber Flexible Cable 2 Core & Earth 1.0mm - 100m Roll

SKU: cabh073g1.100m

016 Amp Rated H07 Rubber Flexible Cable 2 Core & Earth 1.0mm - 100m Roll

Inquire here

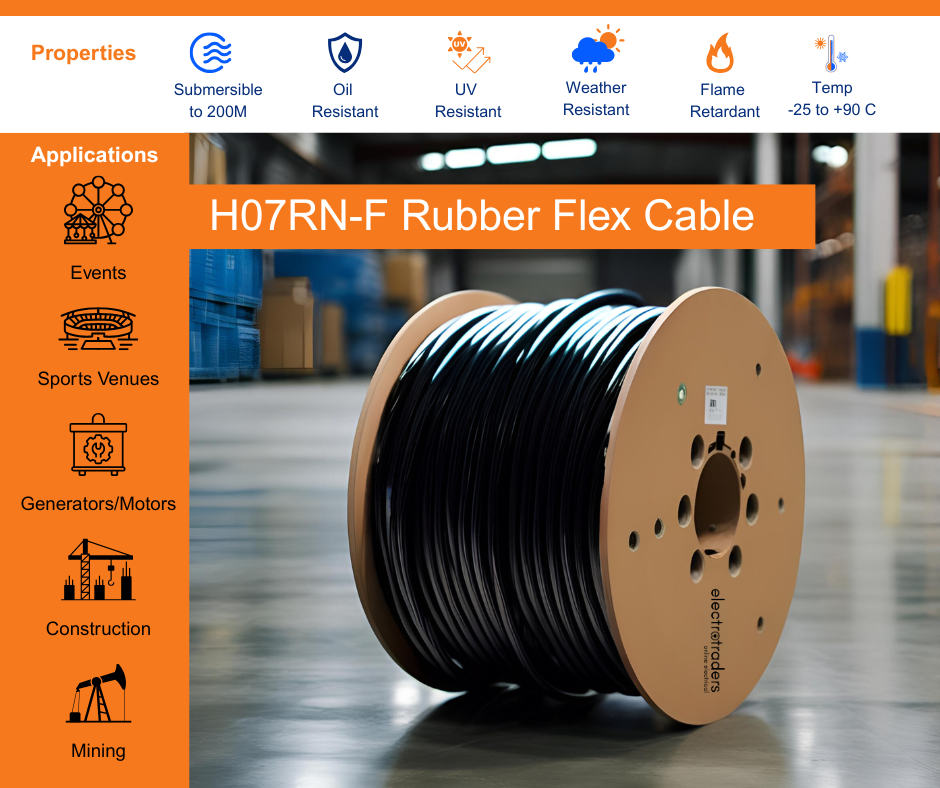

H07 Rubber Flexible Cable Single Phase 3 Core 1.0 mm2 100m Roll
Typically used for connections to portable equipment, limit switches wherever flexible connections are required
Made of H07 Grade Rubber Flex which is sheathed in a Black Insulation that is Chemical/Oil Resistant and Flame Retardant
Rated to 16 Amps
Cable CSA 1.0mm²
Nominal OD 9mm
Conductors - Class 5 tinned copper according to AS/NZS 1125,IEC 60228
Insulation - Ethylene-propolene rubber (EPR) R-RP-90 90°C Conductor
Inner Sheath - EPDM Rubber Outer Jacket - Chlorinated Polyethylene, CPE rubber compound.
Rated Voltage - 0.6/1kV
The cable is submersible to 200mtrs, Suitable for fresh water, salt water, sewage/contaminated water. UV,
Sunlight and weather resistant. Flame retardant to IEC 60332-1-2:2004,EN60332-1-2-2004.
Operating Temperature range -25°C to +90°C (mobile) -40°C to +90°C (fixed)
This flex has full Australian Approvals.
Approximate weight is 12.3kg
Please choose cable type & length carefully as there are no refunds or exchanges on cut to order material.

(cabh073g1.100m)

Cable Specifications: FMR3G1
Product Code	FMR3G1
CSA (mm2)	1.0
Nominal Sheath Thickness (mm)	1.4
Max DC Resistance @20°C (mΩ/KM)	20.0
Amps	16
Nominal OD (mm)	9.0
Mass (Kg/Km)	123
Core Colors	Green/Yellow, Blue, Brown
General Specifications
Conductors	Class 5 tinned copper according to AS/NZS 1125, IEC 60228
Insulation	Ethylene-propolene rubber (EPR) R-EP-90 90°C Conductor
Submersible Rating	200m
Outer Jacket	Chlorinated Polyethylene, CPE rubber compound
Voltage	0.6/1kV
Sheath Colour	Black
Minimum Bending Radius	4 x D (fixed), 5 x D (mobile), D = outside diameter
Features
Submersible	Up to 200mtrs
Suitable for	Fresh water, salt water, sewage/contaminated water
Resistant to	UV, Sunlight, oil and weather
Flame retardant	IEC 60332-1-2:2004, EN60332-1-2-2004
Temperature range	-25°C to +90°C
Short circuit temperature	Maximum 1s 250°C
Applications
Applications	Event & temporary cabling, fairgrounds, sporting venues
	Flexible connections to motors, generators, compressors
	Construction site leads
	Wet or oily environments
	Mine sites and quarries
	Submersible pumps, limit switches
Packaging
Standard Length Cable Packing	500m 1000m and Cut to Length available
Standard Cable Markings	ELFLEX R-EP-90 ELECTRIC CABLE 0.6/1kV > (No. of cores) x (mm2) >MTR MARK<
Note
Note	Consult electrician/engineer to ensure suitability. Information subject to change without notification.
	Elcon Cables takes every precaution to ensure the information in this publication is correct but accepts no liability of any kind and reserves the right to change any detail in this catalouge without notification.
