016 Amp Rated H07 Rubber Flexible Cable 2 Core 1.0mm - 100m Roll
SKU: cabh072g1.100m
016 Amp Rated H07 Rubber Flexible Cable 2 Core 1.0mm - 100m Roll
$131.41 (ex-GST)
$144.55 (inc-GST)
$144.55
$131.41
(inc-GST)
(ex-GST)
- ⚫︎ In Stock

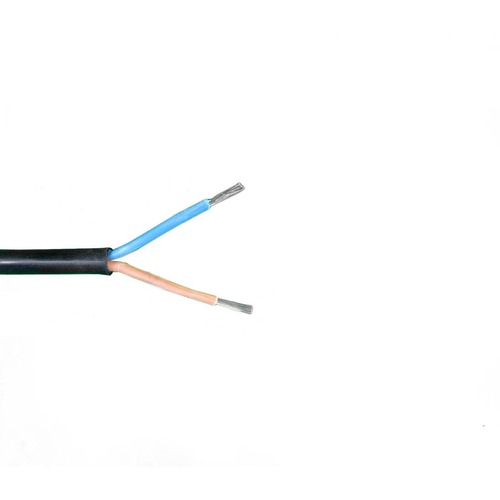

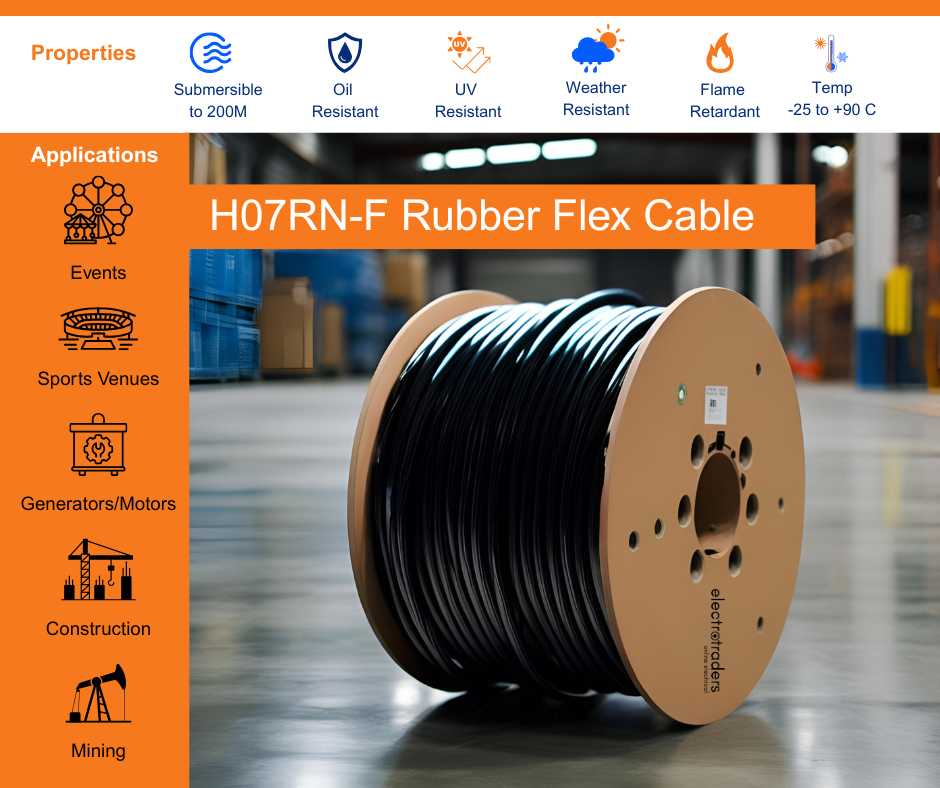

H07 Rubber Flexible Cable Single Phase 2 Core 1.0 mm2 per Metre
- H07 Rubber Flexible Cable Single Phase 2 Core 1.0 mm
- Typically used for connections to portable equipment, limit switches wherever flexible connections are required
- Made of H07 Grade Rubber Flex which is sheathed in a Black Insulation that is Chemical/Oil Resistant and Flame Retardant
- Rated to 16 Amps
- Cable CSA 1.0mm2
- Nominal Cable Diameter 8.4mm
- Conductors - Class 5 tinned copper according to AS/NZS 1125,IEC 60228
- Insulation - Ethylene-propolene rubber (EPR) R-RP-90 90°C Conductor
- Inner Sheath - EPDM Rubber Outer Jacket - Chlorinated Polyethylene, CPE rubber compound.
- Rated Voltage - 0.6/1kV
- The cable is submersible to 200mtrs, Suitable for fresh water, salt water, sewage/contaminated water. UV, Sunlight and weather resistant.
- Flame retardant to IEC 60332-1-2:2004,EN60332-1-2-2004.
- Operating Temperature range -25°C to +90°C (mobile) -40°C to +90°C (fixed)
- This flex has full Australian Approvals.
Pricing:
- Price is Per 100m roll
- Please choose cable type carefully as there are no refunds or exchanges on cut to order material.
(cabh072g1.100m)
| Cable Specifications: FMR2x1 | |
| Product Code | FMR2x1 |
| CSA (mm2) | 1.0 |
| Nominal Sheath Thickness (mm) | 1.3 |
| Max DC Resistance @20°C (mΩ/KM) | 20.0 |
| Amps | 16 |
| Nominal OD (mm) | 8.4 |
| Mass (Kg/Km) | 103 |
| Core Colors | Blue, Brown |
| General Specifications | |
| Conductors | Class 5 tinned copper according to AS/NZS 1125, IEC 60228 |
| Insulation | Ethylene-propolene rubber (EPR) R-EP-90 90°C Conductor |
| Submersible Rating | 200m |
| Outer Jacket | Chlorinated Polyethylene, CPE rubber compound |
| Voltage | 0.6/1kV |
| Sheath Colour | Black |
| Minimum Bending Radius | 4 x D (fixed), 5 x D (mobile), D = outside diameter |
| Features | |
| Submersible | Up to 200mtrs |
| Suitable for | Fresh water, salt water, sewage/contaminated water |
| Resistant to | UV, Sunlight, oil and weather |
| Flame retardant | IEC 60332-1-2:2004, EN60332-1-2-2004 |
| Temperature range | -25°C to +90°C |
| Short circuit temperature | Maximum 1s 250°C |
| Applications | |
| Applications | Event & temporary cabling, fairgrounds, sporting venues |
| Flexible connections to motors, generators, compressors | |
| Construction site leads | |
| Wet or oily environments | |
| Mine sites and quarries | |
| Submersible pumps, limit switches | |
| Note | |
| Note | Consult electrician/engineer to ensure suitability. Information subject to change without notification. |
| SKU | cabh072g1.100m |
| Colour | Black |
| Brand | UNBRANDED |
| Shipping Weight | 10.3000kg |
