Extension Lead 5 Pin 20 Amp Round Pin Straight Plug 5 metre Standard Duty 2.5mm cable 415V

Description

High quality extension lead:

• Extension Lead 5 Pin Round 20 Amp 415V
• 24 month warranty on all products. Warranty does not extend to misuse.
• Please consult with a qualified electrician or engineer about the suitability of this product for your intended purpose.
• All Electrotraders Extension Leads are assembled, tested and tagged in-house by our Licenced Electricians.

Choose your configuration:

• Available in lengths (m): 5, 10, 15, 20, 25, 30, 40, 50, 60 (Note: configurations may not offer all length options due to component availability or electrical characteristics)
• Cable Specifications: cross-sectional area (CSA in mm2), Nominal Sheath Thickness (NST in mm), Max DC Resistance @20°C (MaxR in ohms/KM), Nominal Diameter (NOD in mm), Amperage rating (in accordance with AS/NZS 3008.1.1.2009 Table 14)
  • Standard: CSA 2.5mm2, NST 2.1mm, MaxR 8.21, NOD 13.5mm, Amps 27

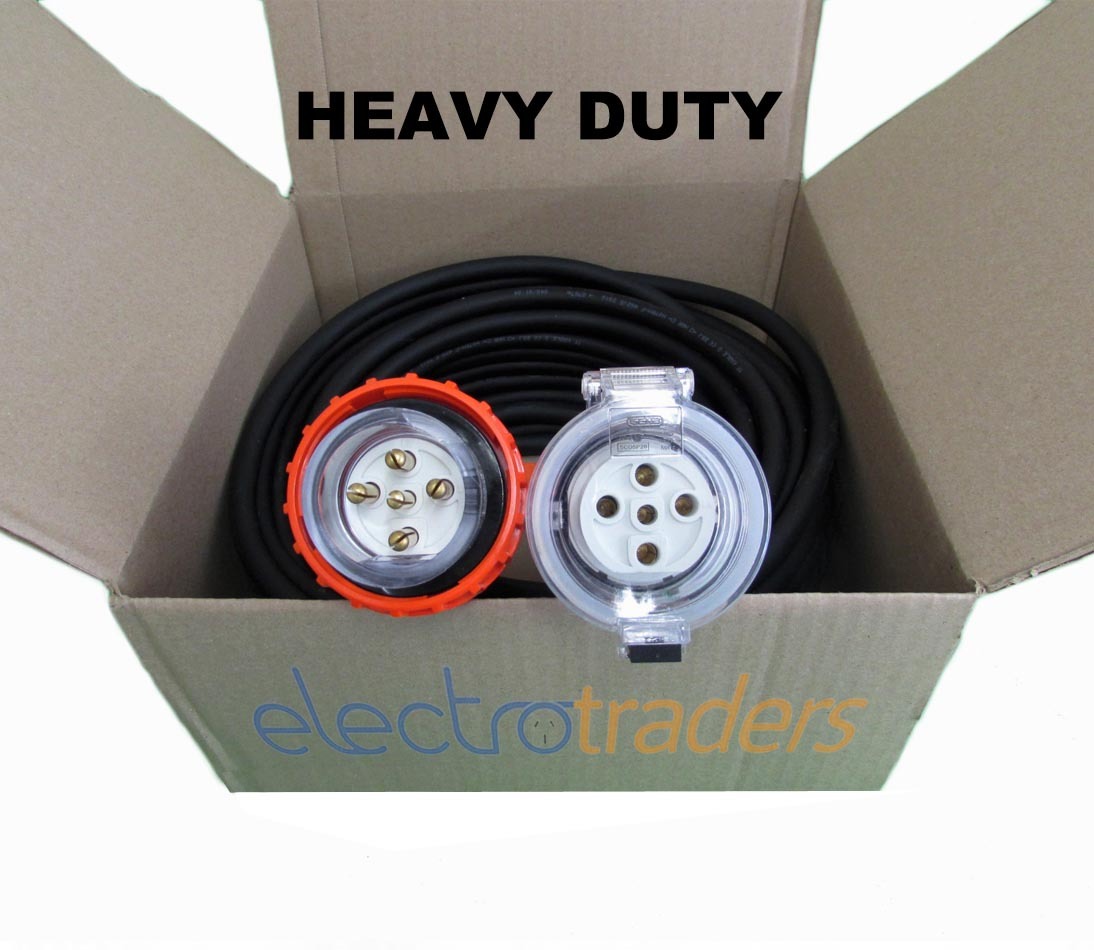

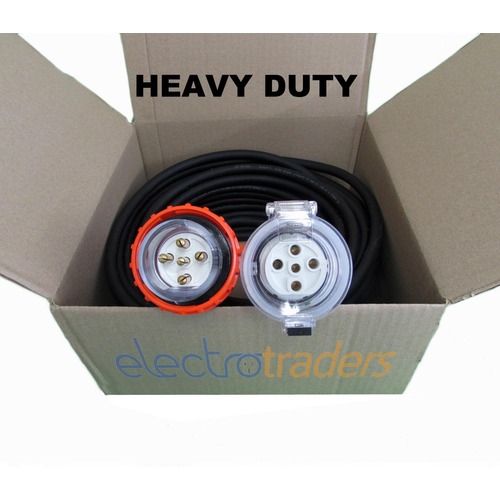

  • Heavy Duty: CSA 4mm2, NST 2.2mm, MaxR 5.09, NOD 15.9mm, Amps 36
  • Extra Heavy Duty: CSA 6mm2, NST 2.5mm, MaxR 3.39, NOD 18.5mm, Amps 46
• Typically used at events & temporary cabling, fairgrounds, sporting venues, for generators / motors / compressors / construction applications including portable equipment such as concrete cutting.

IMPORTANT: Avoid extra costs and fees of ordering the wrong product. Before you order: confirm the compatibility of the plug and sockets i.e. 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you aren't sure, contact us, we are happy to help.

Switch Gear:

• All Plugs and Sockets are source from high quality reputable Australian brands, are IP66 rated and are compatible with all leading Australian switch gear.
• Choose from our regular high quality GEN3 plugs and sockets, or upgrade to industry leading Clipsal gear (available on some product options only)

Cable Properties:

• Leads are assembled using Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
• Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
• H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
• Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
• Rated Voltage 0.6/1kV
