Fluke PRV240FS Proving Unit

SKU: fluprv240fs

Fluke PRV240FS Proving Unit

Prove operation of FieldSense function on T6 electrical testers
Reduce risk of shock and arc flash by validating tool operation
Source both AC and DC steady-state voltage (240 V AC/DC)

Designed for safety and compliance

Verify your test tool works without unnecessary exposure to shock and arc flash. Make the process easy by using the PRV240FS Proving unit. Verifying that your T6 electrical tester is working properly reduces the need for personal protective equipment (PPE) when a known voltage source is not available for verification before tests are performed. (PPE is still needed for absence of voltage testing when appropriate).

On the PRV240FS, a single switch and a set of LEDs indicate functionality of both standard AC and DC measurements with test leads, and FieldSense, “no-test-lead” voltage measurement capability. This unit is a simple-to-use solution for complying with verification procedures of your test tools.

The PRV240FS also provides AC and DC voltages for all high impedance instruments in your toolbox. When paired with the included TPAK magnetic hanging strip and the long battery life, including this proving unit in your toolbox is an easy decision. The PRV240FS will last for 2000 tests per set of four AA batteries, with a 10-second test average.

“Test Before Touch”

Fluke’s PRV240FS allows you to “Test Before Touch” (TBT), which involves testing your T6 against a known live source before, and after, the actual measurement. This sequence verifies that your test tool is operating properly during the actual measurement.

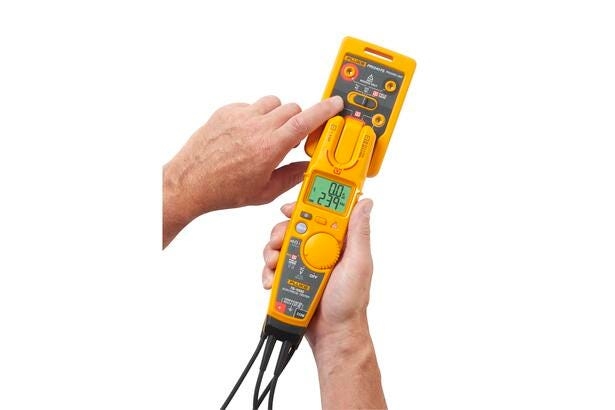

Voltage is sourced through a central hub designed to test the T6 FieldSense open fork, as well as through recessed contacts that are activated when test probes are inserted to avoid accidental contact. The PRV240FS has been tested and includes a IEC61010-1, IEC61010-2-030 safety rating.

(fluprv240fs)

Specifications
Output voltage	240 V ac rms or dc	± 10 % ≥ 1 MΩ
LED power indicator	Turns on when output voltage is present
Battery	4 x AA Alkaline batteries NEDA 15 A IEC LR6
Battery life	1100 (10-second duration) test cycles with >1 MΩ load
Operating temperature	-10 °C to +50 °C
Operating humidity	0 % to 90 % (0 °C to 35 °C)	0 % to 70 % (35 °C to 55 °C)
Operating altitude	2000 m
Dimensions	11.7 cm x 7.4 cm x 4.5 cm (4.6 in x 2.9 in x 1.75 in)
Weight	0.32 kg (12 oz) includes batteries
Safety	IEC61010-1, IEC61010-2-030
Warranty	One-year
Electromagnetic Compatibility (EMC)	IEC 61326-1: Controlled Electromagnetic Environment CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object.
US (FCC)	47 CFR 15 subpart B, this product is considered an exempt device per clause 15.103
Korea (KCC)	Class A Equipment (Industrial Broadcasting & Communication Equipment) Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
