10.0mm Single Panel Flexible Cable 0.6/1kV Blue Per 100m Roll

SKU: cabpanfle10bu.100m

Product Image Gallery

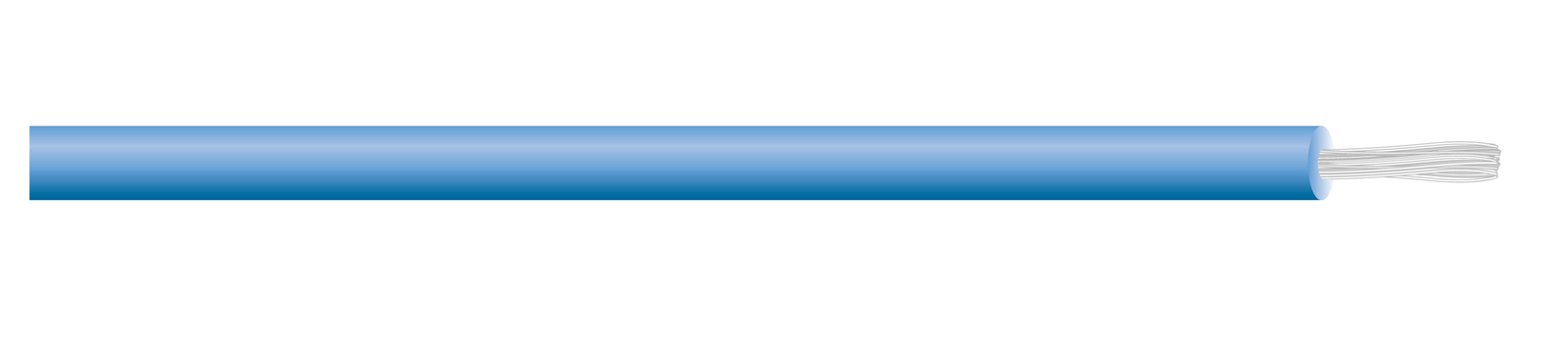

Product image thumbnail for SKU cabpanfle10bu.100m

Product Pricing

$450.00 (ex-GST)

$495.00 (inc-GST)

$495.00

$450.00

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ In Stock

10.0mm Single Panel Flexible Cable 0.6/1kV Blue Per Metre

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200


Description



  • Single Core Power for Flexible and Fixed applications.
  • Insulation PVC UV stabilised V90HT to AS3808:2000
  • Voltage 0.6/1kV
  • No of Strands/mm - 77/0.3
  • Nominal Area mm2 - 1 x 10
  • Rated to 66 Amps
  • Insulation Thickness - 1.3mm
  • Max DC Resistence @20C - 2.02
  • Nominal OD 6.70mm
  • Price is Per 100m Roll
  • Australian Made

(cabpanfle10bu.100m)

Specifications

Product Details
Product Code FHDT150040
Nominal Area 10.0 mm²
Stranding 77/0.40
Nominal Insulation Thickness 1.30 mm
Max DC Resistance @ 20°C 2.02 mΩ/m
Nominal OD 6.70 mm
Mass 0.091 kg/m
Construction
Conductor Tinned Copper Wire (Class 5)
Insulation V90HT PVC
Voltage 0.6/1 kV
Features
UV Stabilised Yes
Flame Retardant Yes
RoHS Compliant Yes
Operating Temperature +90°C
Flexibility Class 5
Colours Available Black, Blue, Red, Green/Yellow, White
SKU cabpanfle10bu.100m
Colour Black
Brand Generic
Shipping Weight 9.1000kg
