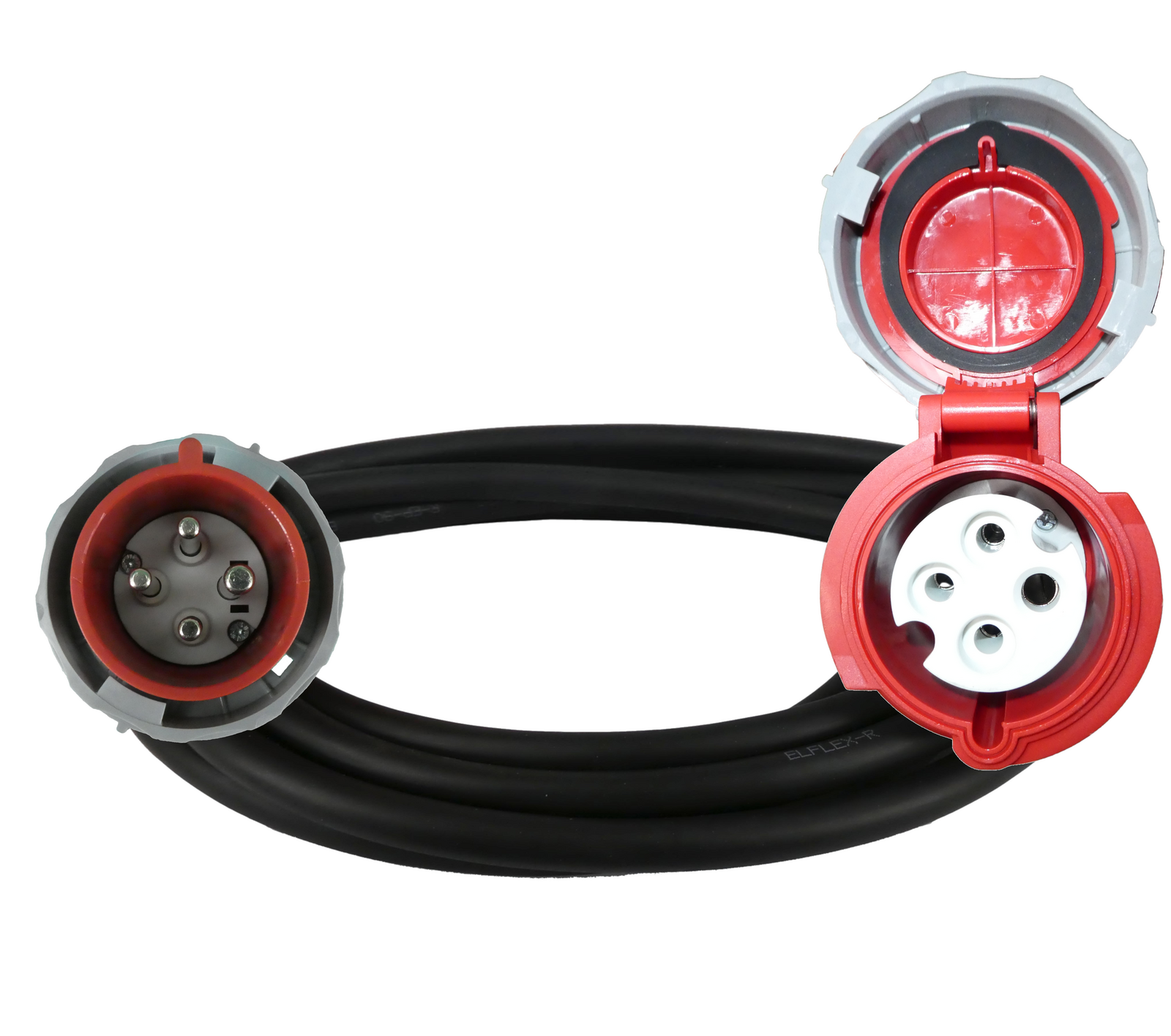

Extension Lead 4 Pin CEE Form (IEC 60309) Reefer 32 Amp Straight Plug 5 metre Standard Duty 4mm cable 415V

SKU: ext4p32acs04.0g05m

Was $209.00
Now $188.10
Sale Ends in

High quality extension lead assembled, tested and tagged by our licensed electricians in Australia. Extension Lead 4 Pin CEE Form (IEC 60309) Reefer 32 Amp Straight Plug 5 metre Standard Duty 4mm cable 415V

Select Your Product Options

Buy In Bulk & Save!
Buy 4 to 9: Pay $199.00
Buy 10 or more: Pay $189.00

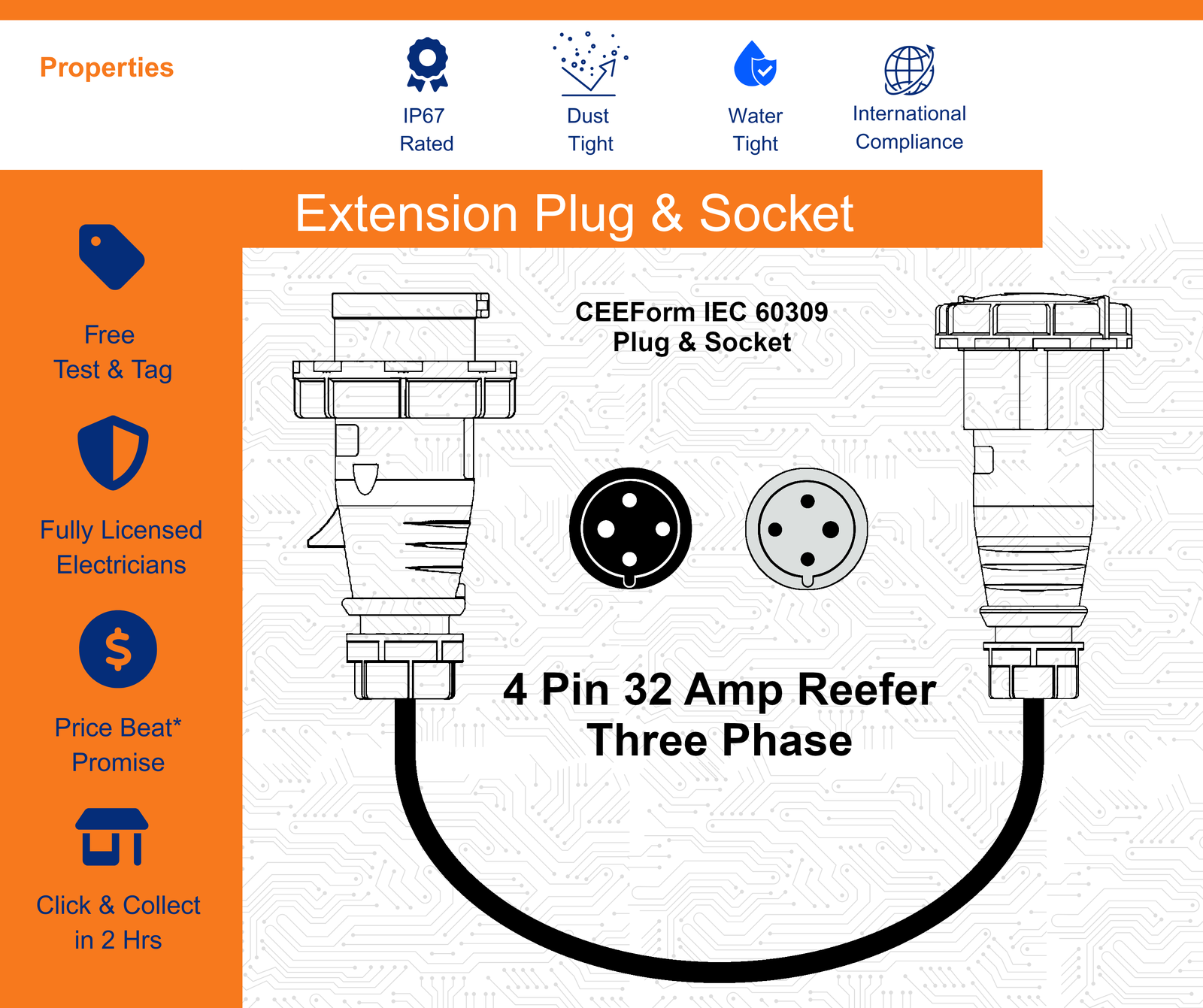

  • Extension Lead 4 Pin CEE Form (IEC 60309) Reefer 32 Amp 415V
  • Available in lengths of 5m, 10m, 15m, 20m, 25m, 30m, 40m, 50m and 60m long.
  • 24 month warranty on all product. Warranty does not extend to misuse.
  • All Electrotraders CEE Form Extension Leads are assembled, tested and tagged in-house by our Licenced Electricians.
  • Reefer plug and socket are applicable in port, logistics and transportation environments to provide power to refrigerated shipping containers (Reefers) on location, ensuring temperature-sensitive goods remain at the required temperature during storage and handling.
  • All Plugs and Sockets are source from high quality reputable Australian brands, comply with European Standards (IEC 60309) and are IP67 rated.
  • This product is not compatible with Australian Outlets. We do have IEC to Australian adapters available for purchase separately.
  • Leads are assembled using Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90 deg C Conductor
  • Conductors are Class 5 tinned copper according to AS/NZS 1125,IEC 60228
  • H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight / oil / weather resistant and flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.
  • Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound
  • Cable Specifications: cross-sectional area (CSA in mm2), Nominal Sheath Thickness (NST in mm), Max DC Resistance @20??C (MaxR in ohms/KM), Nominal Diameter (NOD in mm), Amperage rating (in accordance with AS/NZS 3008.1.1.2009 Table 14)
    • Standard: CSA 4mm2, NST 2.1mm, MaxR 5.09, NOD 14.9mm, Amps 36, Weight 368 Kg/Km
    • Heavy Duty: CSA 6mm2, NST 2.3mm, MaxR 3.39, NOD 16.9mm, Amps 46, Weight 490 Kg/Km
    • Extra Heavy Duty: CSA 10mm2, NST 3.4mm, MaxR 1.95, NOD 23.3mm, Amps 66, Weight 832 Kg/Km
  • Rated Voltage 0.6/1kV
  • Please consult with a qualified electrician or engineer about the suitability of this cable for your intended purpose.
  • Prior to ordering your product check and confirm the compatibility of the plug and socket on the lead. ie 5 Pin 32A, 5 Pin 20A, 5 Pin 10A etc. If you are unsure contact us and we will be happy to help. This will avoid the inconvenience and extra cost should the incorrect lead be purchased.

(ext4p32ac)

SKU ext4p32ac
Manfacturer Part Number ext4p32ac
Brand Electrotraders
