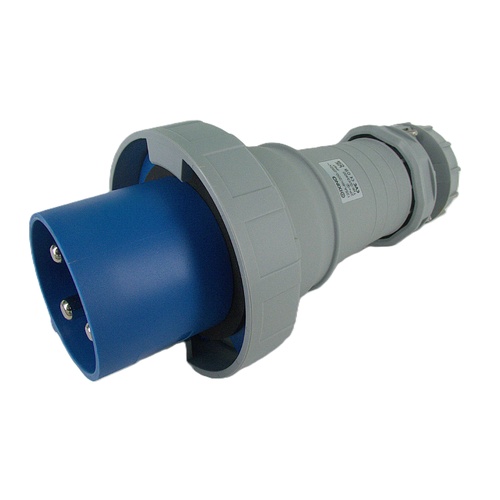

QIXING QX3400 CEE Form 3 Pin 125A Extension Plug IEC 60309 IP67

Description

A high-current single-phase industrial plug.

The QIXING QX3400 is a CEE Form extension plug rated 3 pin, 125A, 230V single phase, with an IP67 weatherproof rating. It is a straight IEC 60309-2 plug – the male connector fitted to the end of a flexible lead, which plugs into a matching CEE Form socket or connector to draw power. These are European-standard industrial connectors conforming to EN/IEC 60309-2, used wherever a robust, weatherproof, high-current connection is required. At 125A this is one of the highest-rated single-phase plugs in the range. The 6h clock position keys the connector to the standard single-phase voltage band, helping prevent connection to an incompatible supply.

Key Features

• CEE Form extension plug (straight)
• 3 pin – single phase (active, neutral, earth)
• 125A rated current
• 230V
• IP67 – protected against dust and temporary immersion
• Conforms to EN/IEC 60309-2
• 6h clock position
• Robust industrial construction for high-current applications

Order now for fast dispatch across Australia.

What an Extension Plug Does

An extension plug is the male connector fitted to the end of a flexible lead. It plugs into a matching CEE Form socket or connector to draw power, and is the partner to the in-line connectors and socket outlets in the range. The QX3400 is the straight version, with the cable entering in line with the body. It suits assembling high-current single-phase extension leads and power tails.

Built for High-Current Use

Rated 125A and IP67, the QX3400 is built for heavy power connections in demanding environments, protected against dust and the effects of temporary immersion in water. As an IEC 60309-2 connector it follows the international pin-and-sleeve standard, so it mates reliably with other IEC 60309 equipment of the same rating and configuration.

Keyed for Safety

The 6h clock position refers to the keyed position of the earth contact under IEC 60309, which corresponds to the standard single-phase voltage band. This keying helps ensure the plug only connects with a matching socket of the correct voltage rating and configuration.

Q: What is the QX3400 plug used for?
A: It is the male connector fitted to the end of a flexible lead, which plugs into a matching CEE Form socket or connector to draw power. The QX3400 is the straight, 3 pin 125A version.

Q: Is the QX3400 single phase or three phase?
A: It is single phase. The 3 pin configuration is active, neutral and earth at 230V. Four and five pin versions are three phase.

Q: What does IP67 mean for this plug?
A: IP67 means it is fully protected against dust and can withstand temporary immersion in water, suiting outdoor and wash-down environments.
