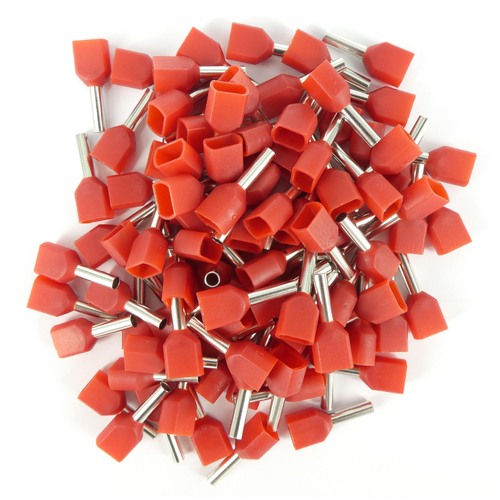

BLT010 2×1.0mm² Twin Insulated Bootlace Ferrule 8mm Red — Pack of 100

Description

BLT010. 2×1.0mm². 8mm Pin. Twin Insulated Bootlace Ferrule. Red. Halogen Free. Pack of 100.

The BLT010 is a 2×1.0mm² twin insulated bootlace pin ferrule with an 8mm pin length — used to terminate two stranded conductors simultaneously into a single screw terminal block position. Red insulated collar. Tin plated copper barrel. Halogen free, flame retardant (V2) nylon insulation. Compliant with RoHS. Pack of 100.

• BLT010 — 2×1.0mm² Twin Insulated Bootlace Ferrule, 8mm Pin
• Conductor cross-section: 2×1.0mm² — two conductors, each 1.0mm²
• Pin length: 8mm
• Total length: 16mm
• Barrel O.D.: 2.4mm
• Body width: 8mm
• Red insulated collar — standard colour code for 1.0mm² ferrules per DIN 46228/4
• Tin plated copper barrel — corrosion resistant
• Nylon insulation — halogen free, flame retardant V2
• Voltage rating: 630V
• Operating temperature: -20°C to +105°C
• Compliance: RoHS
• Suits control wiring applications where two conductors share a single terminal position
• Applied with standard bootlace ferrule crimping tool — twin die set required
• Pack of 100

Order online now — fast dispatch Australia-wide.

About Twin Bootlace Ferrules — Why Use Them

A twin bootlace ferrule (also called a twin pin ferrule or twin end sleeve) accepts two stranded conductors simultaneously and crimps them into a single insulated pin — allowing two conductors to share a single screw terminal position cleanly and securely. This is a common requirement in control panel wiring where multiple wires must connect to the same terminal point, such as common neutrals, earth busbar connections, or parallel control circuits.

Without a ferrule, inserting two bare stranded conductors into a single terminal creates a risk of stray strands, poor contact, and conductor displacement under vibration. The twin ferrule solves this by consolidating both conductors into a single crimped pin with the same profile as a standard single ferrule — the terminal sees one clean pin rather than two loose wire bundles.

The BLT010 uses halogen free, flame retardant V2 nylon insulation and is suited to 2×1.0mm² conductor pairs. Red is the standard colour code for 1.0mm² ferrules. A crimping tool with a twin die set accommodating 2×1.0mm² twin ferrules is required — a standard single ferrule die will not correctly crimp a twin ferrule.

Q: What conductors does the BLT010 suit?
A: The BLT010 suits two 1.0mm² stranded conductors — both conductors are inserted together into the twin ferrule collar and crimped simultaneously.

Q: Can I use a standard single ferrule crimping tool for the BLT010?
A: No — a twin ferrule requires a crimping tool with a twin die set. A standard single ferrule die will not correctly crimp a twin ferrule and may result in a poor or damaged connection.

Q: What is the pin length of the BLT010?
A: The BLT010 has an 8mm pin length — suited to standard DIN rail screw terminal blocks.

Q: Is the BLT010 halogen free?
A: Yes — the BLT010 uses halogen free, flame retardant V2 nylon insulation. It complies with RoHS.

Q: How many ferrules are in a pack?
A: The BLT010 is sold in a pack of 100 ferrules.
