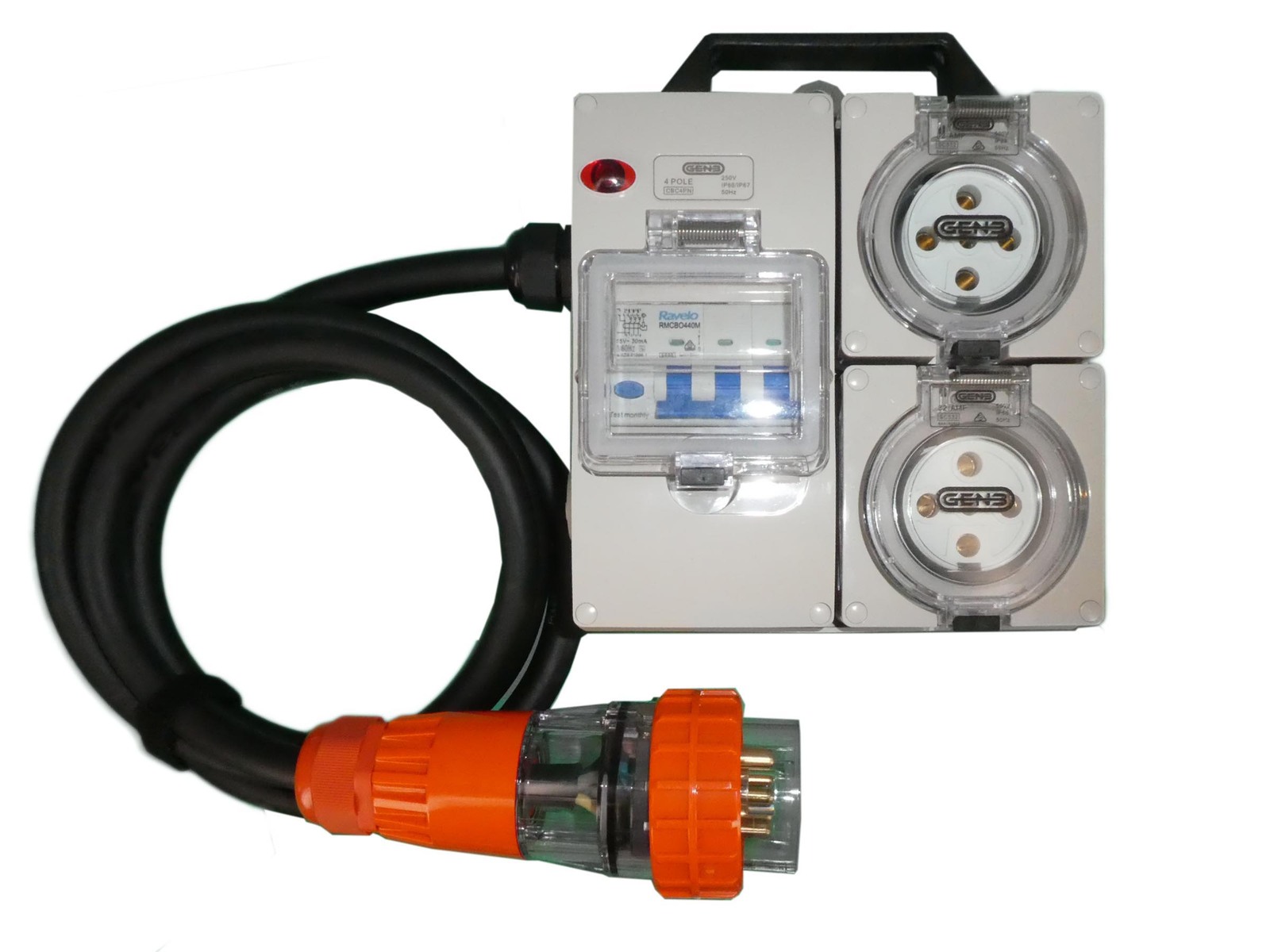

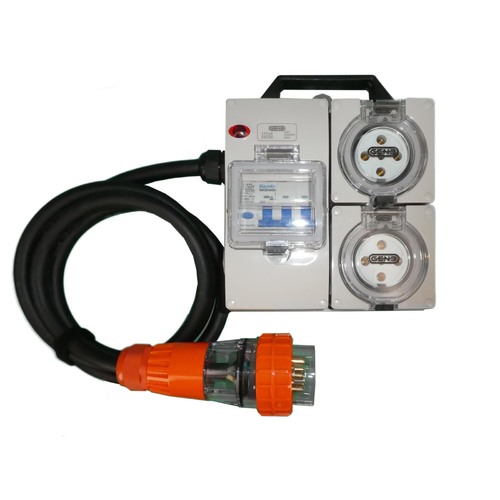

Power Board 5 Pin 32A to 2 X 5 Pin 32A RCBO Protected Outlets with Hanging Bracket

SKU: pob5322x532hb

$443.00

Share:

Power Board 5 Pin 32A to 2 X 5 Pin 32A RCBO Protected Outlets with Hanging Bracket



  • Electrotraders Power Boards are made using all Australian approved quality Components

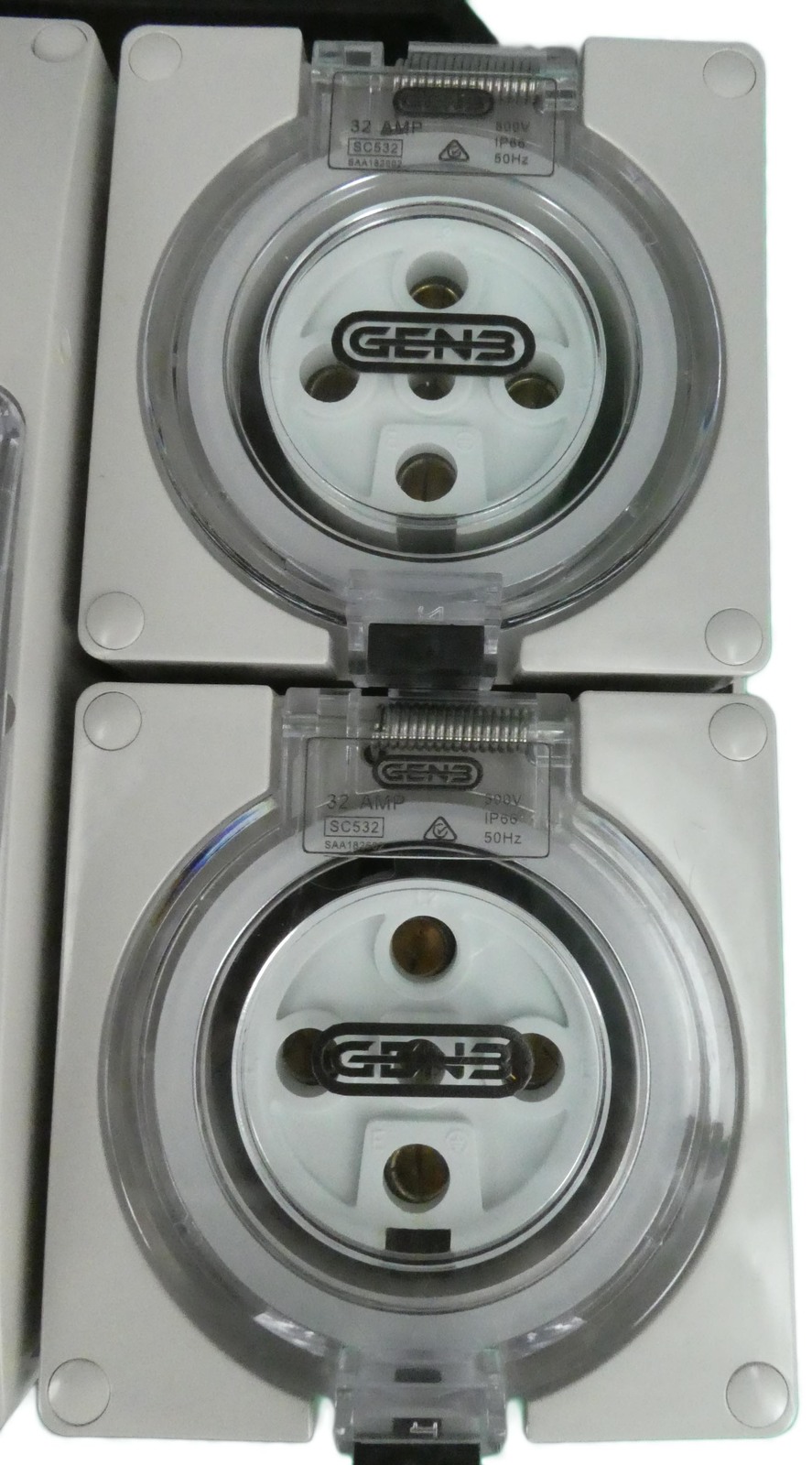

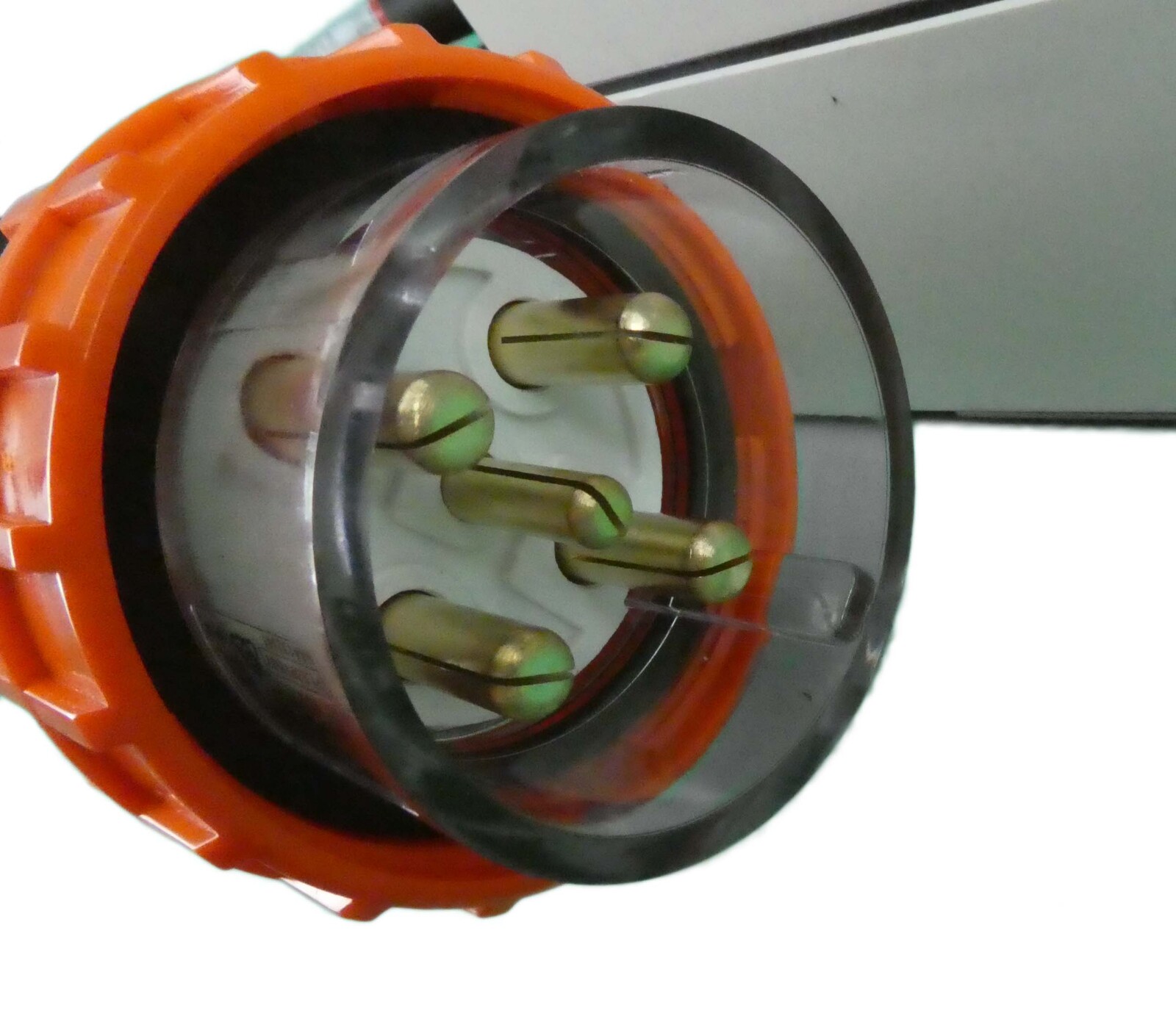

  • This Board supplies 2 x 32 Amp Three Phase 500 Volt Outlets from a 5 Pin 32 Amp Three Phase Plug.
  • 2 metre lead HO7 Rubber Cable

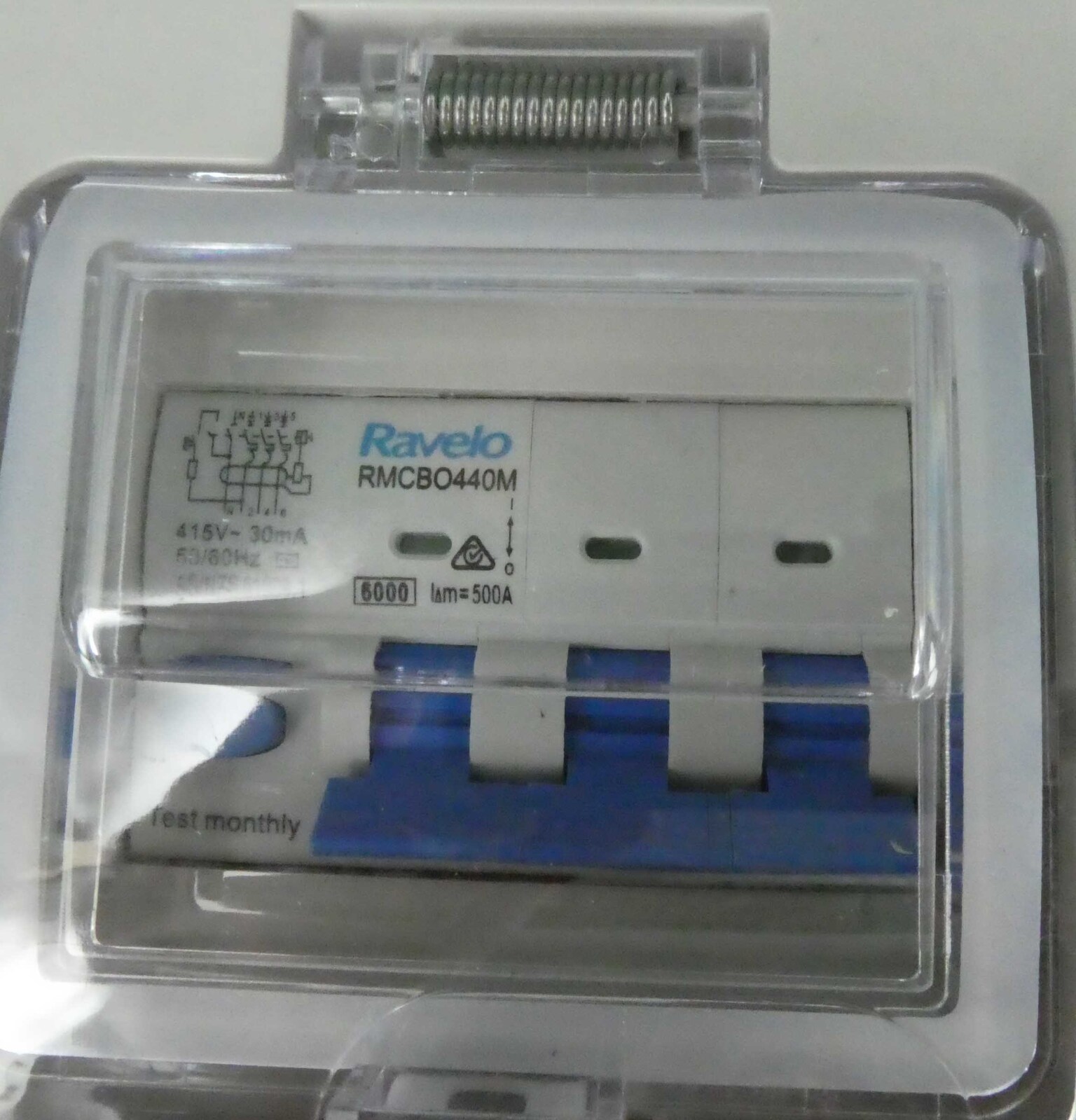

  • Circuit Protected by a 4 Pole Ravello  32 Amp RCBO 6ka
  • Mounted inside 4 Module Base
  • Dimensions of Base Unit 200 x 200 x 110mm
  • All GEN3 Industrial Switch Gear is IP66 Rated
  • All GEN3 plastics are PCA18 virgin grade (No regrind)
  • All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.
  • All Brass internal components are greater than 85% copper.
  • All GEN3 products have Australian/NZ Approval Certificates.
  • All GEN3 products are interchangeable with other major brands.
  • GEN3 Operating Temperature range -25 °C to +70°C
  • The lead is made of HO7 Grade Rubber Flex which is sheathed in a Black Insulation that is Chemical/Oil Resistant and Flame Retardant
  • Conductors - Class 5 tinned copper according to AS/NZS 1125,IEC 60228
  • Insulation - Ethylene-propolene rubber (EPR) R-RP-90 90°C Conductor
  • Inner Sheath - EPDM Rubber Outer Jacket - Chlorinated Polyethylene, CPE rubber compound.
  • UV, Sunlight and weather resistant. Flame retardant to IEC 60332-1-2:2004,EN60332-1-2-2004.
  • Operating Temperature range -25°C to +90°C (mobile) -40°C to +90°C (fixed)
  • IP66 Rated Plug Socket and Base

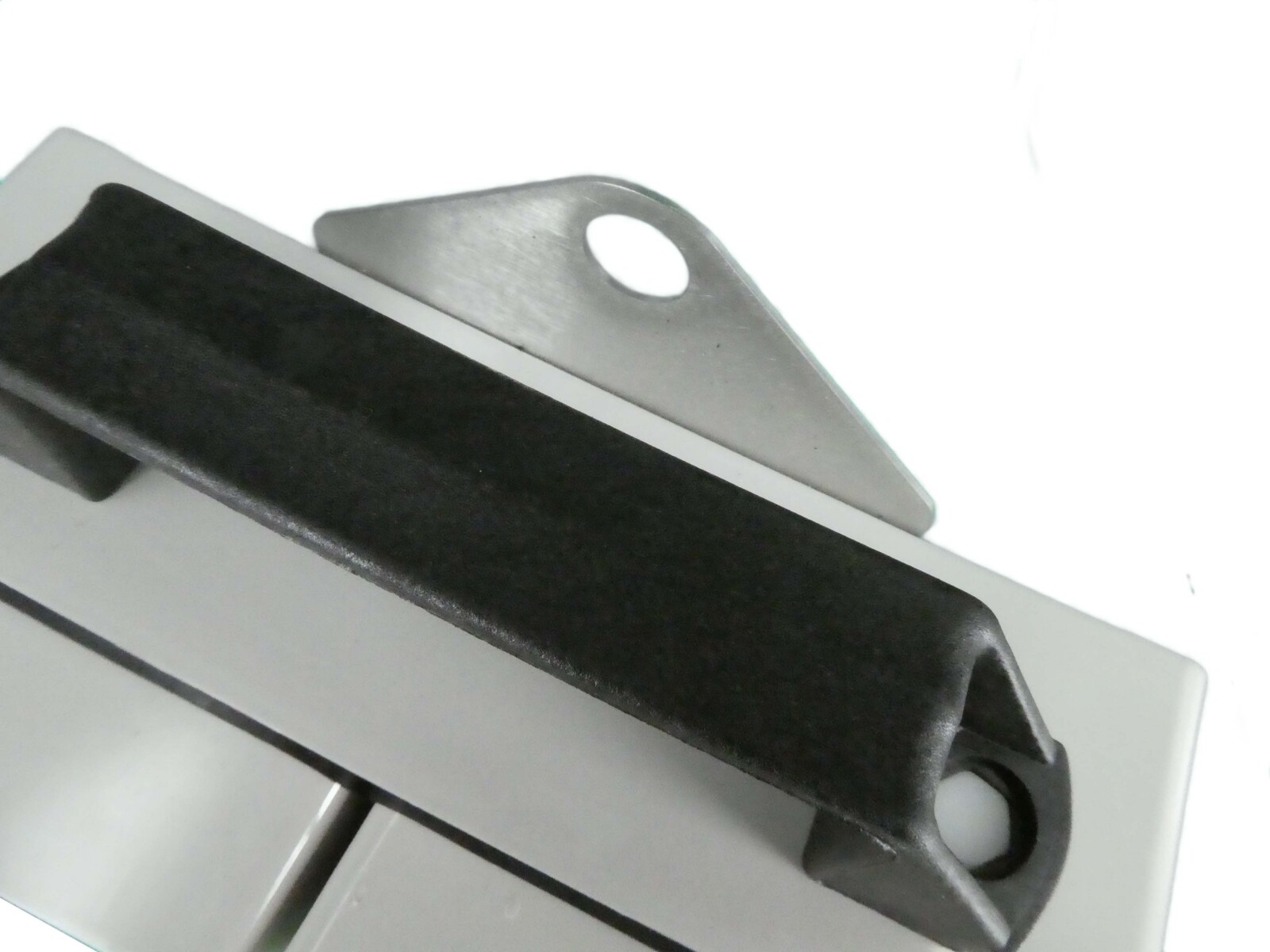

  • Fitted with Stainless Steel Hanging Bracket
  • All Electrotraders Power Boards are assembled In-House by our Licenced Electricians.



(pob5322x532hb)

SKU pob5322x532hb
Brand Electrotraders
