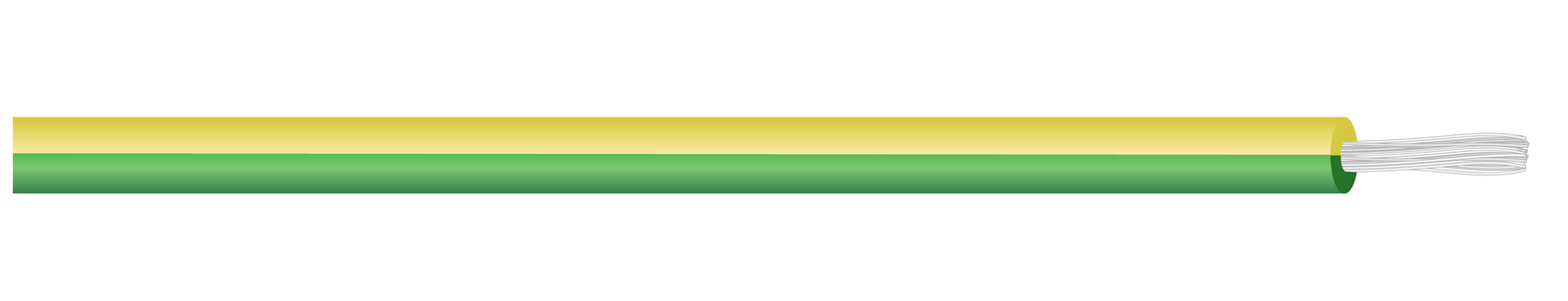

2.5mm Single Panel Flexible Cable 0.6/1kV Green-Yellow 100m Roll

SKU: cabpanfle2.5gy.100m

Product Image Gallery

Product image thumbnail for SKU cabpanfle2.5gy.100m

Product Pricing

$109.09 (ex-GST)

$120.00 (inc-GST)

$120.00

$109.09

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ In Stock

2.5mm Single Panel Flexible Cable 0.6/1kV Green-Yellow Per Metre

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200


Description



  • Single Core Power for Flexible and Fixed applications.
  • Insulation PVC UV stabilised V90HT to AS3808:2000
  • Voltage 0.6/1kV
  • No of Strands/mm - 50/0.25
  • Nominal Area mm2 - 1 x 2.5
  • Rated to 27 Amps
  • Insulation Thickness - 0.90mm
  • Max DC Resistence @20C - 8.21
  • Nominal OD 3.90mm
  • Price is Per 100m Roll.
  • Australian Made

(cabpanfle2.5gy.100m)

Specifications

Product Details
Product Code FHDT150025
Nominal Area 2.5 mm²
Stranding 50/0.25
Nominal Insulation Thickness 0.90 mm
Max DC Resistance @ 20°C 8.21 mΩ/m
Nominal OD 3.90 mm
Mass 0.035 kg/m
Construction
Conductor Tinned Copper Wire (Class 5)
Insulation V90HT PVC
Voltage 0.6/1 kV
Features
UV Stabilised Yes
Flame Retardant Yes
RoHS Compliant Yes
Operating Temperature +90°C
Flexibility Class 5
Colours Available Red, Black, Blue, White, Green/Yellow
SKU cabpanfle2.5gy.100m
Colour Black
Brand Unbranded
Shipping Weight 3.5000kg
