2.5mm Non Migratory Twin & Earth | Polystyrene Use | 100m Roll

SKU: cabnonmig2.5.100m

Product Image Gallery

Product image thumbnail for SKU cabnonmig2.5.100m
Product image thumbnail for SKU cabnonmig2.5.100m

Product Pricing

$369.60 (ex-GST)

$406.56 (inc-GST)

$406.56

$369.60

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ Sold Out - Backorder Available

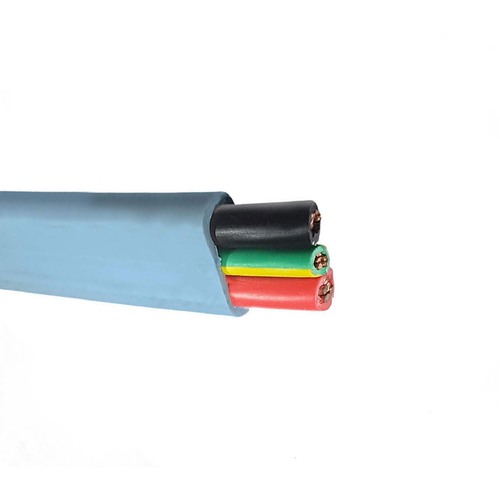

2.5mm Non Migratory Twin and Earth Cable Polystyrene use Approved Blue

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200

Product on Back order More Stock Available in 1-7 Days

Description

  • Electra Cable
  • Product Code SRF3025VHT
  • Non Migratory Polystyrene use Approved
  • 2.5mm Twin and Earth
  • Cable Sheath Colour - Purple
  • Complies with All Australian Standards.
  • For more information about the reactiveness of Polystyrene and Polyurethane with Cable Insulation click on this Link to view Electrical Safety Office Notification
  • Price is Per 100m Roll
  • Please choose cable type & Length carefully as there are no refunds or exchanges on cut to order material.

(cabnonmig2.5.100m)

Specifications

Product Specifications – SRF3025VHT
Product Code SRF3025VHT
Stranding (No./mm) 7/0.67
Conductor Area (mm²) 2.5
Insulation Thickness (mm) 0.7
Sheath Thickness (mm) 1.0
Nominal Overall Dimensions (mm) 12.4 × 5.5
Approximate Mass (kg/100m) 13.5
Construction
Conductor Plain annealed copper (AS/NZS 1125)
Insulation V-90 PVC
Sheath NON-Migratory 5V-90 PVC
Sheath Colour Purple
Standard AS/NZS 5000.2
Operating Conditions
Voltage Rating 450/750V
Normal Operating Temperature -20°C to 90°C
Typical Features
Suitability Wall or roofing insulation material
  Caravans
  Cold rooms
  Transportable buildings
Application
For light to medium industrial use. Suitable for festoon systems and all internal building wiring applications. Insulation and sheathing material is non-migratory and suitable for use in contact with polystyrene, ABS, polycarbonate, and acrylic.
SKU cabnonmig2.5.100m
Manfacturer Part Number SRF3025VLS
Colour Blue
Brand Generic
Shipping Weight 15.0000kg
