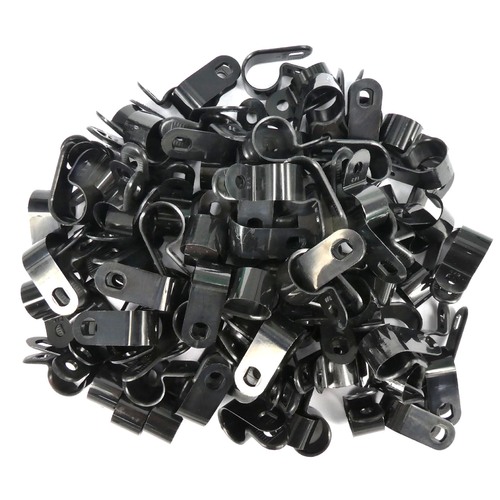

NP12.7B 12.7mm Nylon P Clip Black — Pack of 100

Description

NP12.7B. 12.7mm. Nylon P Clip. Black. Halogen Free. Pack of 100.

The NP12.7B is a 12.7mm (1/2") nylon P clip — used to route, support, and secure cables, conduit, pipes, and tubing to panels, frames, and surfaces. Black Nylon 66 construction. 5.0mm mounting hole. Radiused interior edges protect cable insulation. Halogen free, flame retardant 94V-2. Compliant with RoHS and UL. Pack of 100.

• NP12.7B — 12.7mm (1/2") Nylon P Clip, Black
• Bundle diameter: 12.7mm (1/2")
• Mounting hole: 5.0mm — suits standard M5 fasteners
• Overall width: 12.2mm
• Inner width: 14.8mm
• Overall length: 30.3mm
• Wall thickness: 1.4mm
• Material: Nylon 66 — UV stabilised, high strength
• Radiused interior edges — protects cable insulation from chafing
• Operating temperature: -40°C to +85°C
• Flame rating: 94V-2
• Halogen free
• Compliance: RoHS, UL
• Suited to automotive, caravan, marine, and general electrical cable management
• Pack of 100

Order online now — fast dispatch Australia-wide.

About Nylon P Clips

A P clip (also called a P clamp or pipe clip) is a single-hole mounting clip used to route, support, and secure cables, conduit, tubing, and pipes to a panel, chassis, or surface. The name comes from the shape — the clip resembles the letter P, with a loop that grips the cable or conduit and a flat tab with a mounting hole for fastening to the surface.

P clips are widely used in automotive, caravan, marine, electrical, and industrial cable management applications. The NP12.7B is constructed from Nylon 66 — a high-strength, heat-resistant engineering nylon suitable for both indoor and outdoor applications across a wide temperature range. Radiused interior edges protect cable insulation from chafing and damage at the contact point between the clip and the cable surface.

The 5.0mm mounting hole suits standard M5 screws commonly used in panel and chassis mounting applications. At 12.7mm (1/2"), the NP12.7B suits medium conduit, larger cable bundles, and 1/2" pipe or tubing. The black colour provides UV resistance for outdoor and underbonnet use. The NP12.7B is supplied by Pacific Components and is available in a pack of 100.

Q: What size cable or conduit does the NP12.7B suit?
A: The NP12.7B suits cables, conduit, and tubing with an outer diameter of approximately 12.7mm (1/2").

Q: What fastener size suits the NP12.7B mounting hole?
A: The NP12.7B has a 5.0mm mounting hole — suited to M5 screws.

Q: Is the NP12.7B suitable for outdoor and automotive use?
A: Yes — Nylon 66 construction with UV stabilisation, -40°C to +85°C operating range, and black colour make it suited to automotive, caravan, marine, and outdoor electrical installations.

Q: How many clips are in a pack?
A: The NP12.7B is sold in a pack of 100 clips.
