4mm Figure 8 Twin DC Solar Cable

SKU: cabsoltwi4



4mm Figure 8 Twin DC Solar Cable

Buy In Bulk & Save!
Buy 100 or more: Pay $2.40

Product on Back order More Stock Available in 1-7 Days

  • Sold per metre or 100m Drums

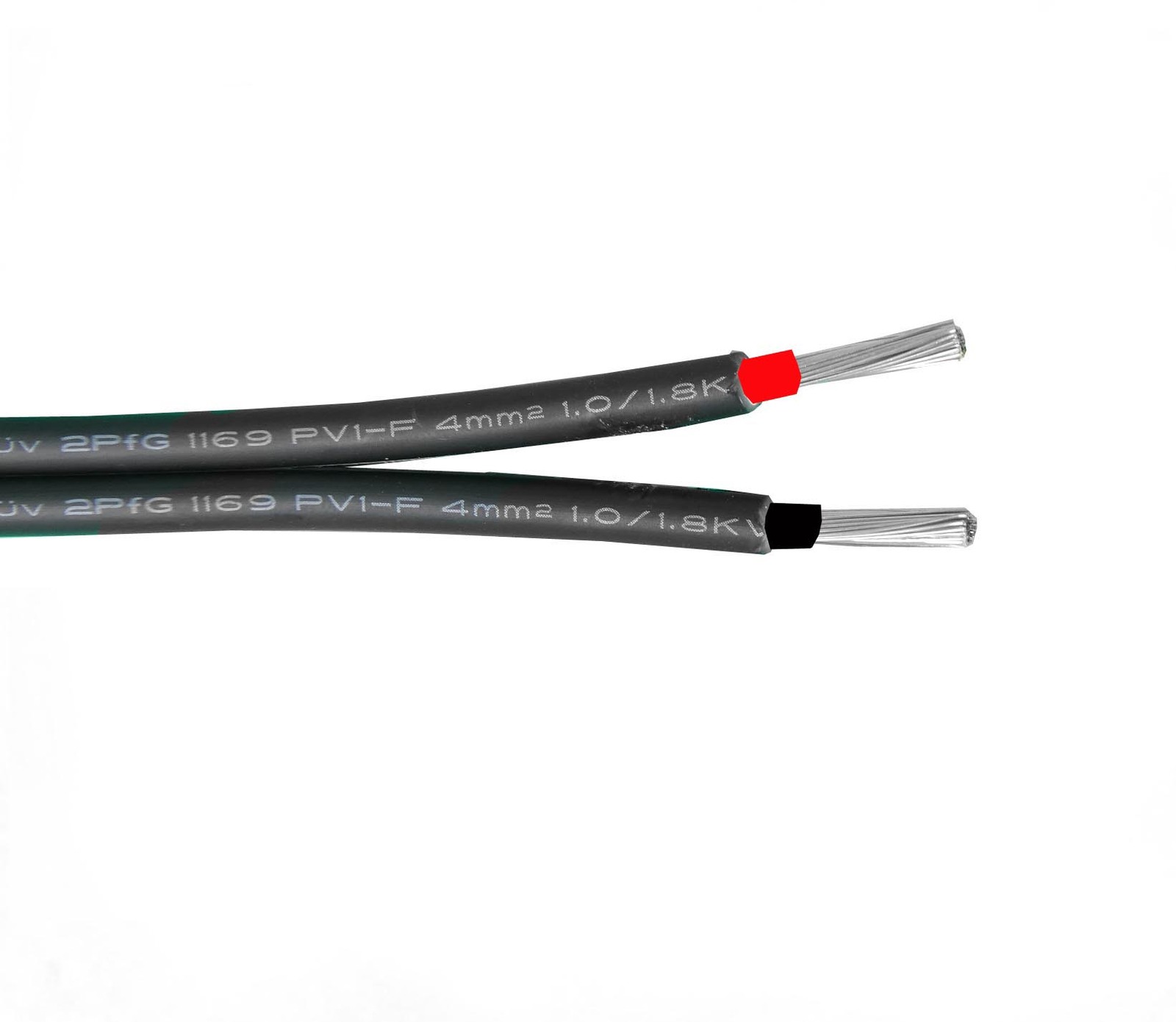

  • 4mm 2 Figure 8 Twin DC Solar Cable
  • Used for Inter Connection in photovoltaic Systems for both residential and commercial installations
  • Temperature Rating 120C
  • PV1-F Photovoltaic Cable
  • UV Stabilised
  • Metre Marked
  • Tinned Copper, Class 5 in accordance with IEC 60228
  • Sheath - Electron beam Cross Linked Compounds
  • Voltage 0.9/1.8kV DC (0.6/1kV AC)
  • Colour - Figure 8 Black Sheath Red and Black Cores
  • Max DC Resistence  @ 20C mΩ/ml - 5.09
  • Nominal OD 4.6 x 9.4
  • If you require Professional Crimping and Insulation of your Lugs a service can be added to your cart at a cost per lug. Click Here

Cable is Priced Per Metre. Order Quantity X 1 Metre units e.g. 12 metres required, Order quantity is 12.

All quantities will be supplied in one continuous length up to 100 metres unless advised otherwise.

Please choose cable type & Length carefully as there are no refunds or exchanges on cut to order material.



SKU cabsoltwi4
